NoteAction
xx1300000543

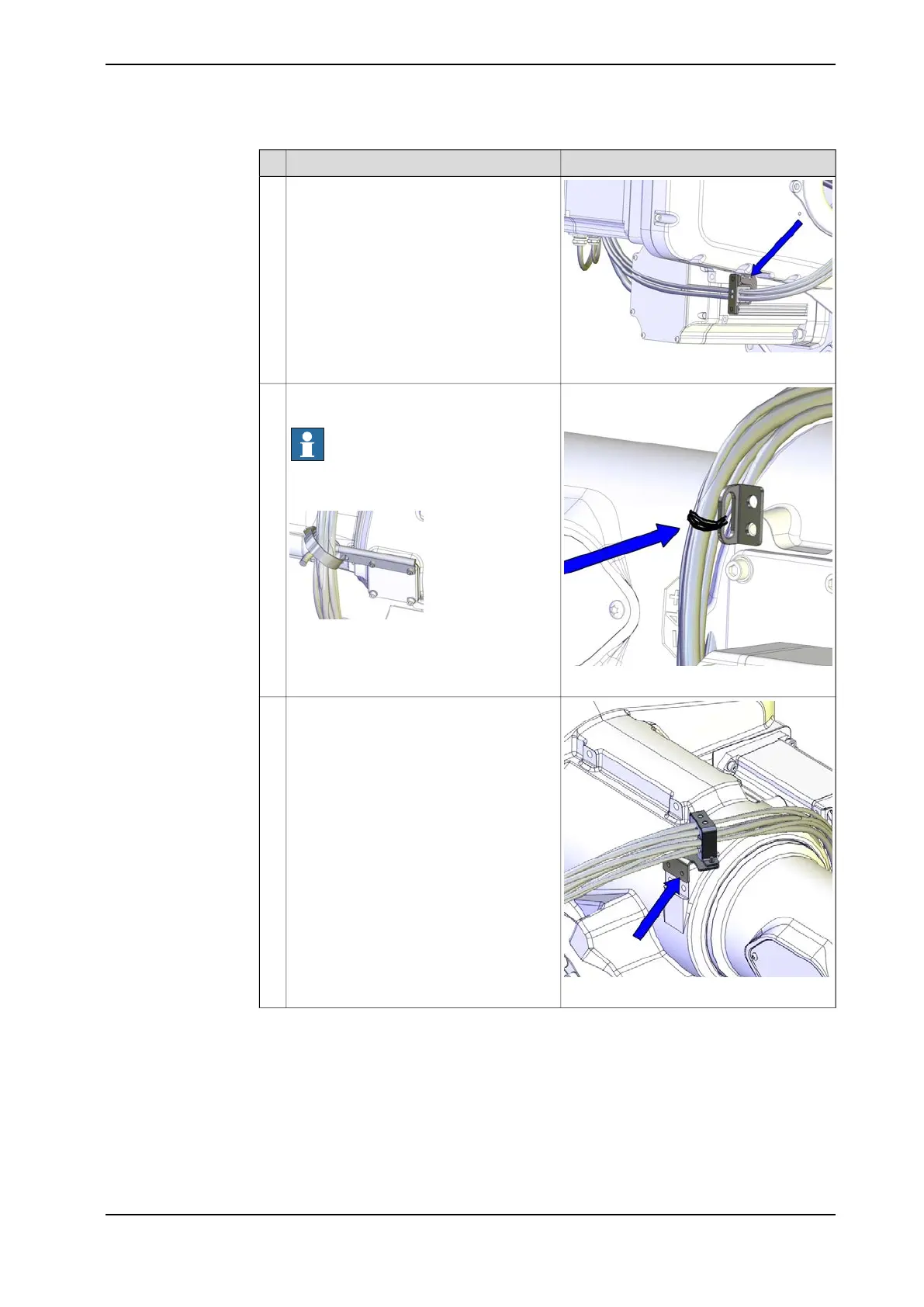

Remove the armhouse metal clamp.8
xx1300000544
Open the velcro straps at the cable fixing
bracket.
Note
If DressPack is fitted, the cable fixing
bracket is replaced by the cable guide.
xx1300001973
9
xx1300000541
Remove the metal clamp on top of the
armhouse.
10
Continues on next page
