Fit the cable guide.7

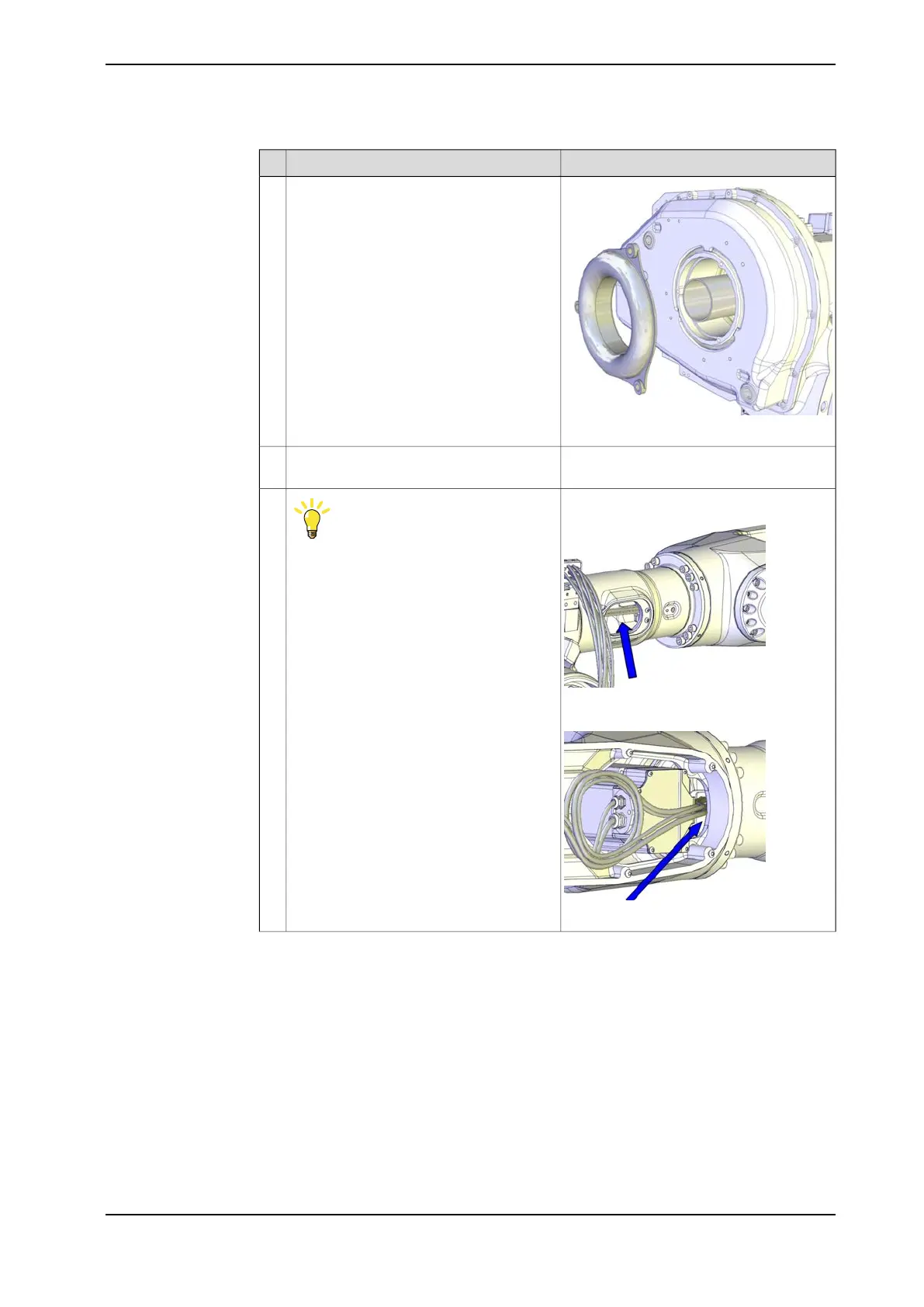

Use caution and push the cable harness
into the upper arm tube.
8
Person 1, working at the side hole:
xx1300000745
Tip
This step is best performed by two persons
working together.
Use caution and push the cable harness
into the wrist like this:
• Person 1: Put one hand inside the
side cover hole and take a hold of
the cable harness.
• Person 2: Take a hold of the cable
harness from inside the wrist.
• Together: Use caution and move the
cable harness past the axis-5 motor
and into the wrist.
9
Person 2, working at the wrist:
xx1300000746
