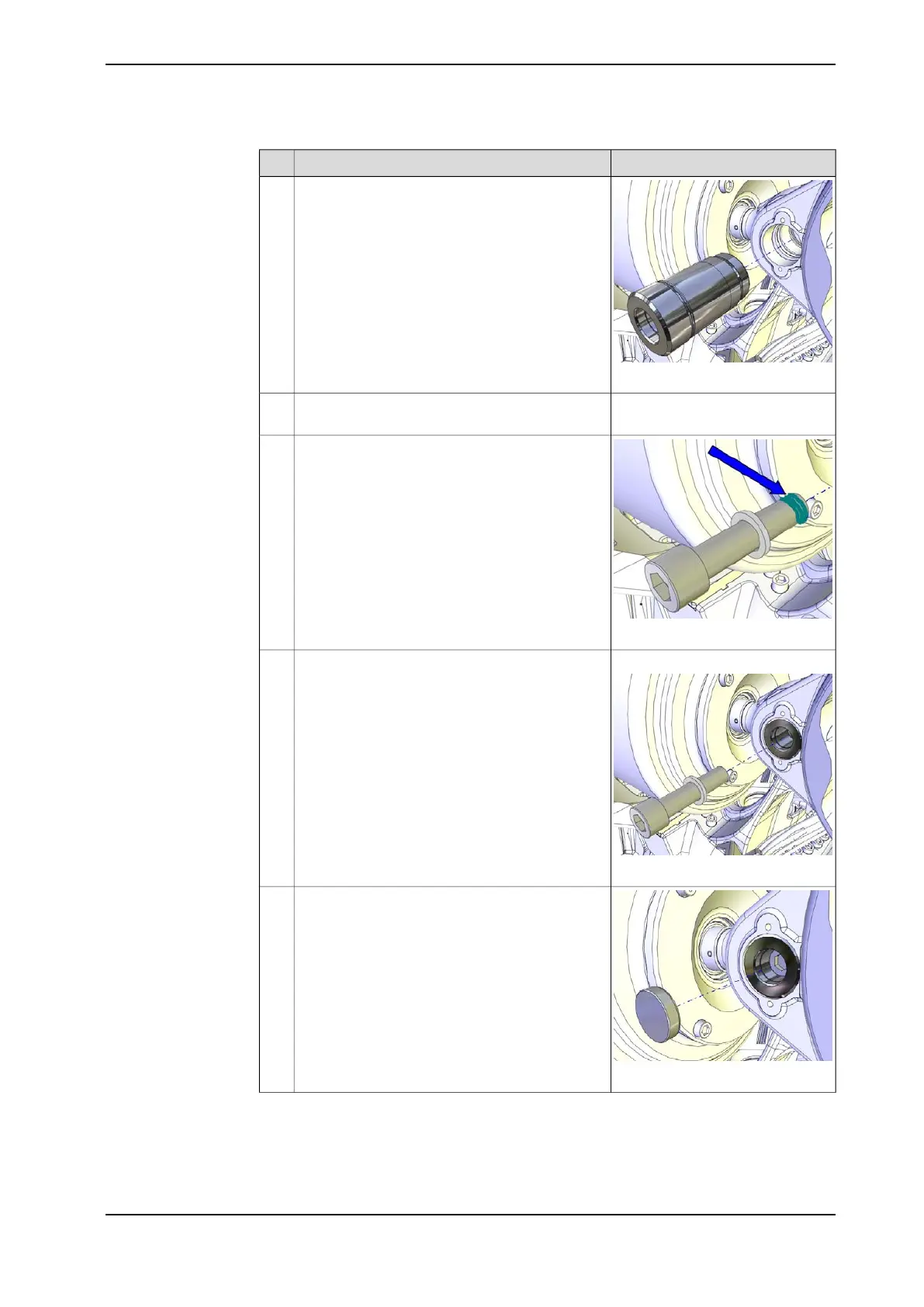

NoteAction
xx1200001280
Lubricate the shaft and place it to the front ear.6
Dismantle and mounting tool:
3HAC028920-001
Press the shaft in with the hydraulic press tool.7
xx1300000782
Apply locking liquid (Loctite 2701) on the threads
of the screw, first entering the threads in the
frame.
8
Tightening torque: 200 Nm
xx1200001279
Secure the shaft with screw and washer.9
xx1200001278
Fit the VK-cover.10
Continues on next page
3HAC044266-001 Revision: - 351
© Copyright 2013 ABB. All rights reserved.
4 Repair
4.6.1 Replacing spherical roller bearing, link ear
Continued
