NoteAction
Bits extender: 3HAC12342-1
xx1200001117

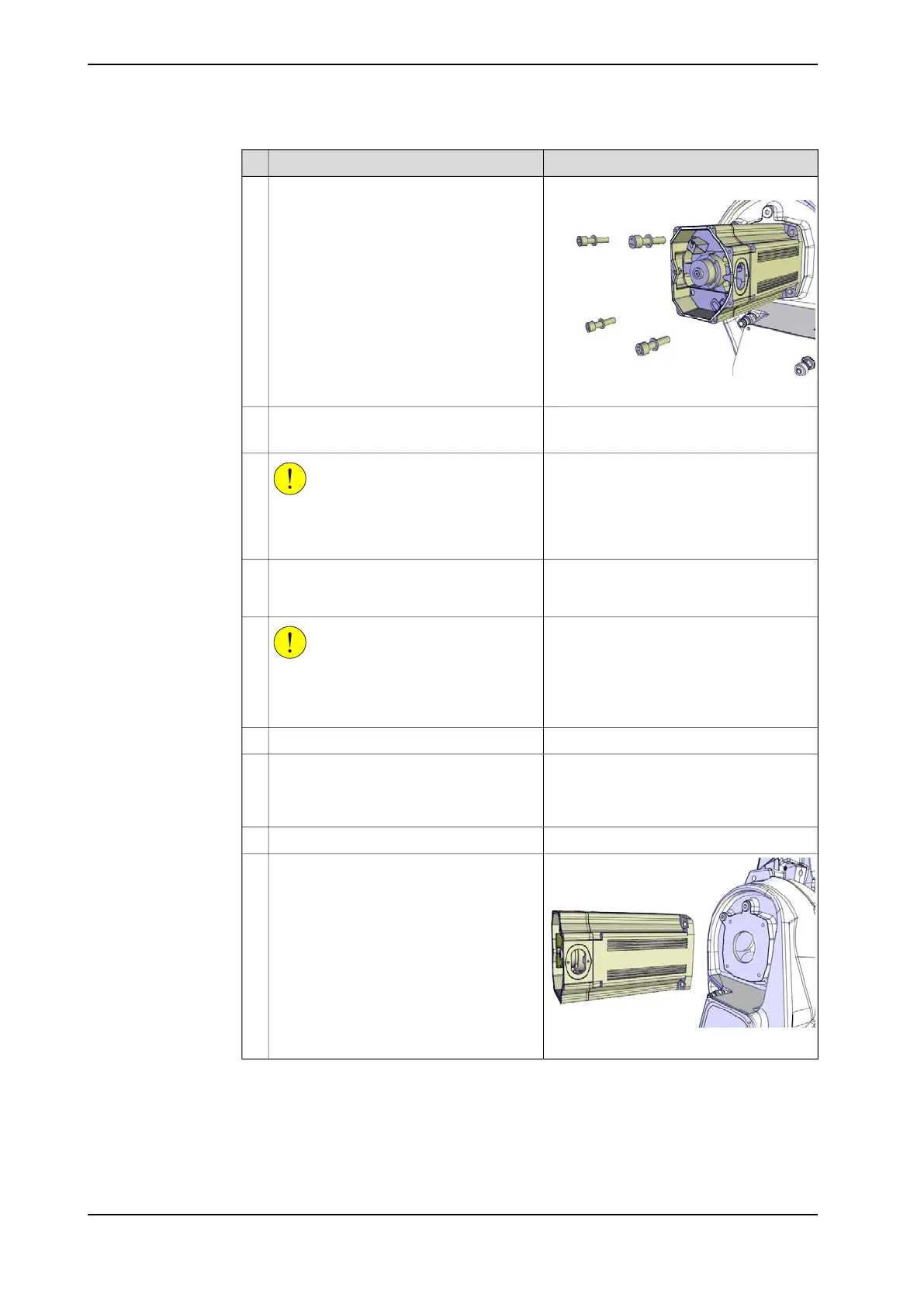

Remove the attachment screws securing
the motor.
Use a bits extender in order to reach the
screws.
4
Guide pin, M12x150: 3HAC13056-2Fit guide pins in opposite holes.5
Always use guide pins in pairs!
CAUTION
Whenever parting/mating motor and gear-
box, the gears may be damaged if excess-
ive force is used!
6
Removal tool M14: 3HAC047108-001If required, press the motor out of position
by using the removal tool in opposite holes
of the motor.
7
CAUTION
The motor weighs 26 kg.
All lifting accessories used must be sized
accordingly!
8
Lifting accessory, motor: 3HAC15534-1Apply the lifting accessory.9
Use caution and lift the motor out on the
guide pins, in order to get the pinion away
from the gear and let it rest on the guide
pins.
10
Disconnect the 24 VDC power supply.11
xx1200001118
Use caution and remove the motor by slid-
ing it out on the guide pins and then put it
somewhere safe.
12
Continues on next page
400 3HAC044266-001 Revision: -
© Copyright 2013 ABB. All rights reserved.
4 Repair
4.7.2 Replacing the axis-2 motor
Continued
