Connecting the motor cables
NoteAction
xx1300000738

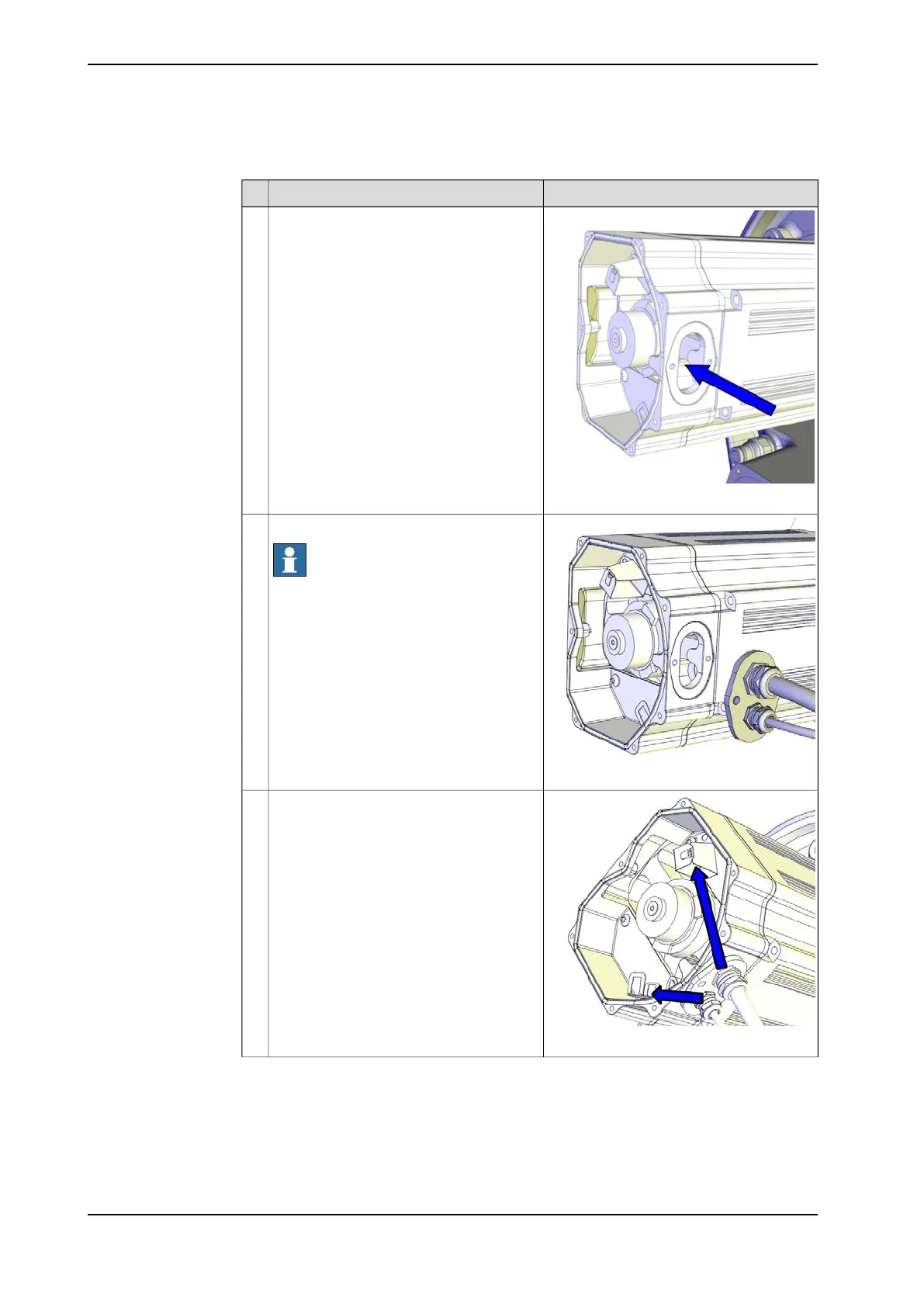

Push the motor cables in through the cable
gland opening.
1
xx1200001067
Refit the cable gland cover.
Note
Replace the gasket if damaged!
2
xx1200001066
Connect the motor cables.
Connect in accordance with the markings
on the connectors.
3
