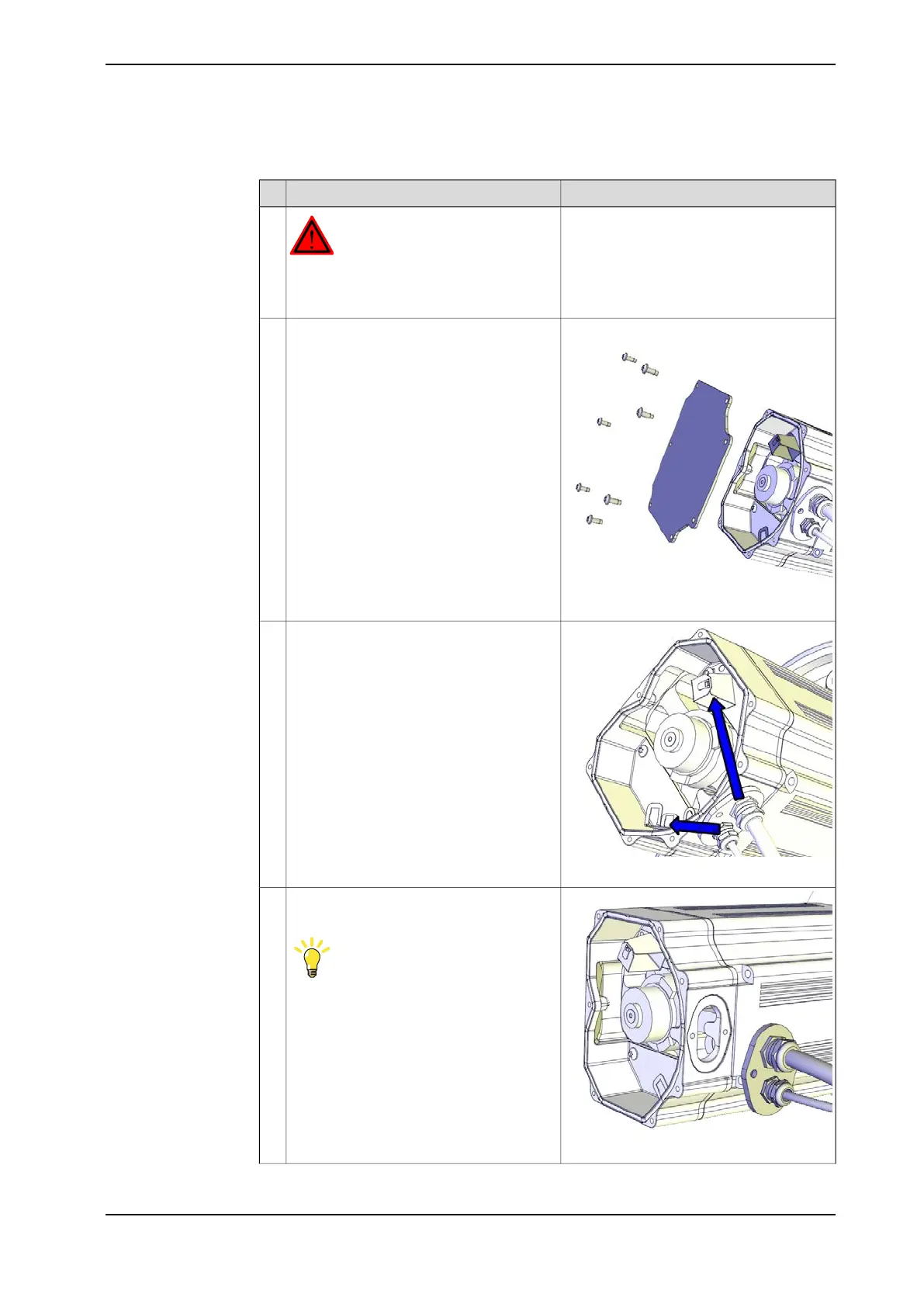

Disconnecting the motor cables
NoteAction
DANGER
Make sure that all supplies for electrical
power, hydraulic pressure, and air pressure
are turned off.
1
xx1200001135
Unscrew the attachment screws and
washers and remove the motor cover.
2
xx1200001066
Disconnect the motor cables.3
xx1200001067
Remove the cable gland cover.
Make sure the gasket is not damaged!
Tip
Make a note in which direction the cable
exit hole is facing, if the motor also will be
removed. The motor shall be refitted in the
same position.
