NoteAction
xx1300000486

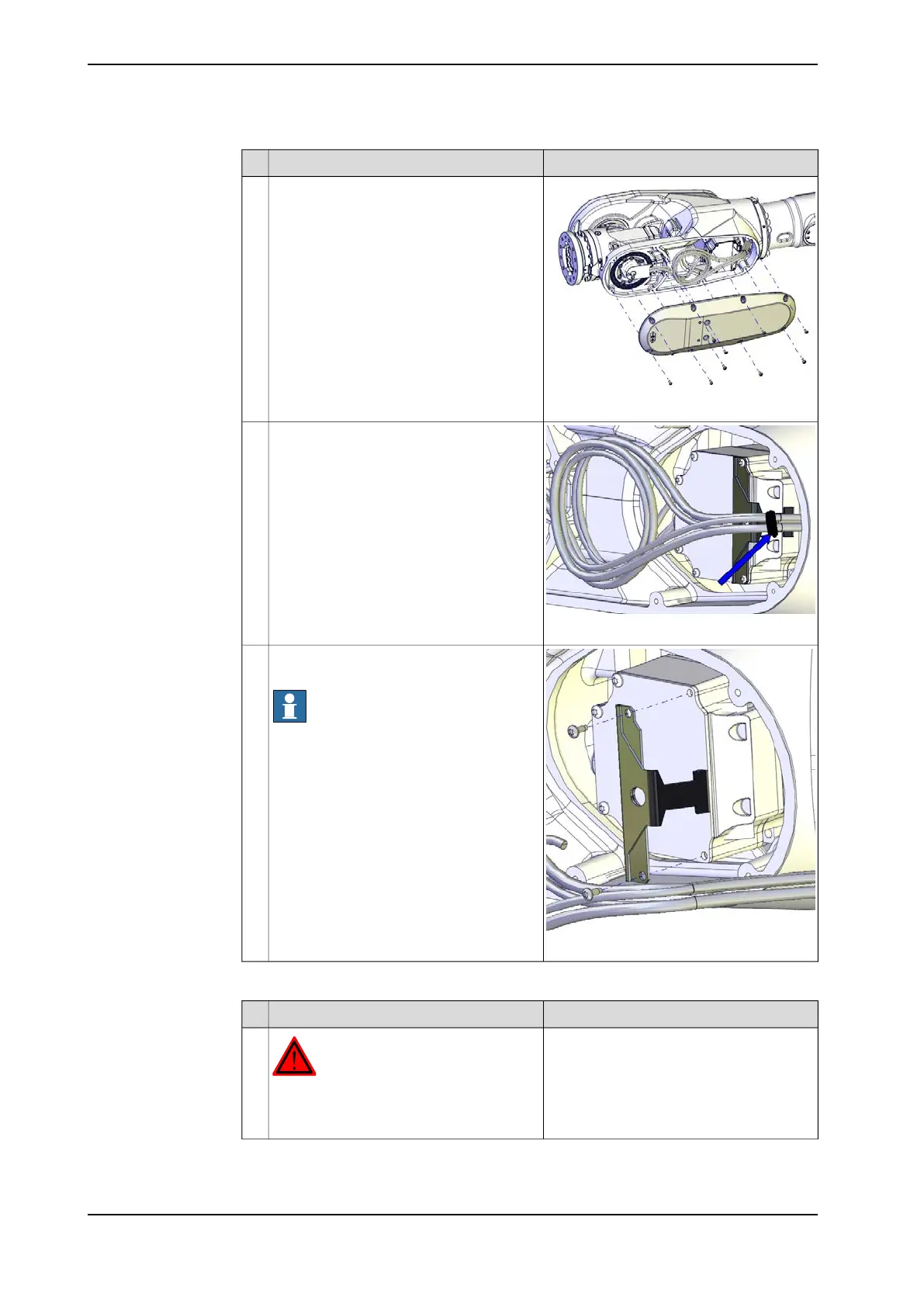

Remove the wrist cover.3
xx1300000489
Cut the cable straps that hold the cable
harness to the heat protection plate.
4
xx1300000490
Pull the cable harness to the side and re-
move the heat protection plate.
Note
Keep the heat protection plate somewhere
safe until it shall be refitted.
5
Disconnecting the motor cables
NoteAction
DANGER
Make sure that all supplies for electrical
power, hydraulic pressure, and air pressure
are turned off.
1
Continues on next page
430 3HAC044266-001 Revision: -
© Copyright 2013 ABB. All rights reserved.
4 Repair
4.7.5 Replacing the axis-5 motor
Continued
