NoteAction
CAUTION
Whenever parting/mating motor and gear-
box, the gears may be damaged if excess-
ive force is used!
3
If required, press the motor out of position
by fitting the removal tool, motor to the at-
tachment holes of the motor.
4
xx1200001091

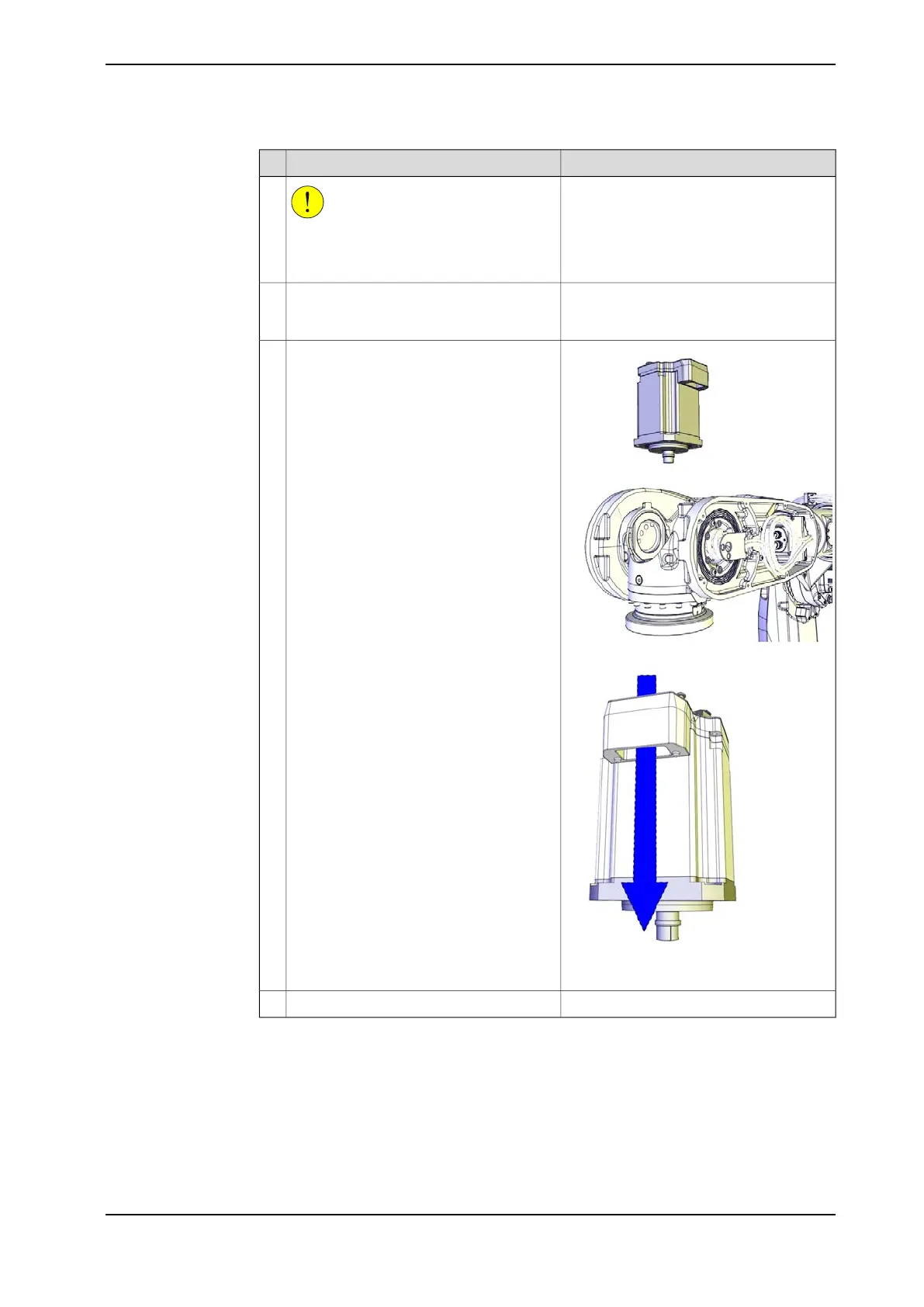

Remove the motor by lifting it straight up
from the gear while at the same time pick-
ing out the motor cables from the motor.
Make sure the motor pinion is not dam-
aged!
5
xx1200001096
Disconnect the 24 VDC power supply.6
Continues on next page
3HAC044266-001 Revision: - 443
© Copyright 2013 ABB. All rights reserved.
4 Repair
4.7.6 Replacing the axis-6 motor
Continued
