NoteAction
xx1300000591

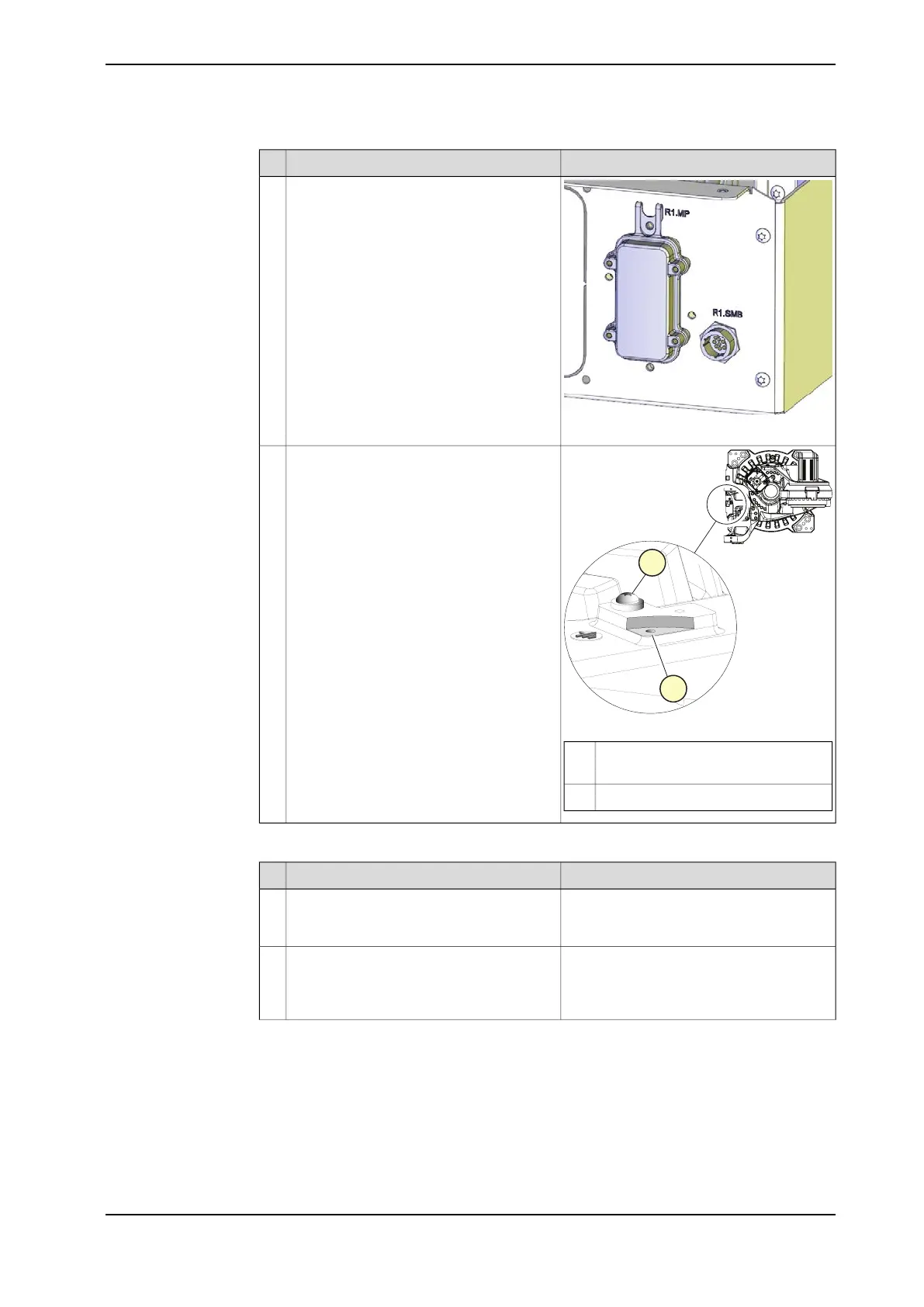

Remove connectors in the base:
• R1.MP
• R1.SMB
3
xx1300001972
M6x16 and Plain washer large
6.4x17x3
A
EarthB
Disconnect the earth cable.4
Removing the cable harness in the base
NoteAction
If used, use caution and pull out the
DressPack hoses through the protection
tube in the base.
1
If used, use caution and pull out the
DressPack cables through the protection
tube and place it safely over the balancing
device.
2
Continues on next page
3HAC044266-001 Revision: - 459
© Copyright 2013 ABB. All rights reserved.
4 Repair
4.8.1 Replacing the axis-1 gearbox
Continued
