NoteAction
Guide pin, M16x150: 3HAC13120-2Apply guide pins in opposite holes in the
gearbox.
Note
Make sure that the guide pins are fitted in
the correct holes in the gearbox! See fig-
ures!
4
Guide pin, M16x200: 3HAC13120-3
Always use guide pins in pairs!

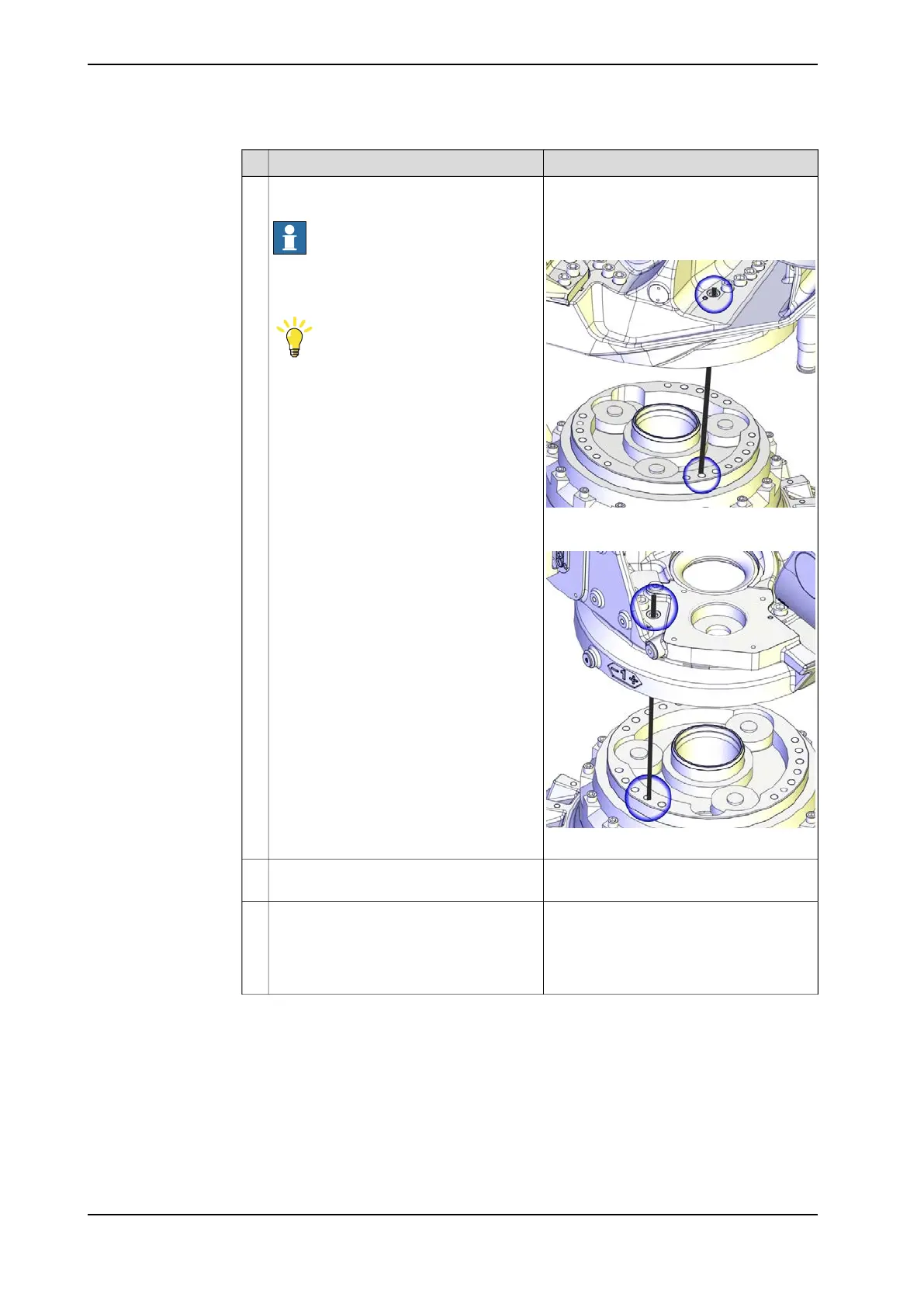

Position of guide pin one:
xx1300000822
Tip
Lubricate the guide pins with some grease
to make the frame slide better.
Position of guide pin two:
xx1300000823
Aligning tool: 3HAC046645-001Put som grease on the o-ring of the aligning
tool.
5
Put some grease on the part of the aligning
tool that will mate with the hole in the
gearbox.
6
Also put some grease in the matching hole
in the gearbox.
Continues on next page
466 3HAC044266-001 Revision: -
© Copyright 2013 ABB. All rights reserved.
4 Repair
4.8.1 Replacing the axis-1 gearbox
Continued
