ABB IRB 6700 - Page 472

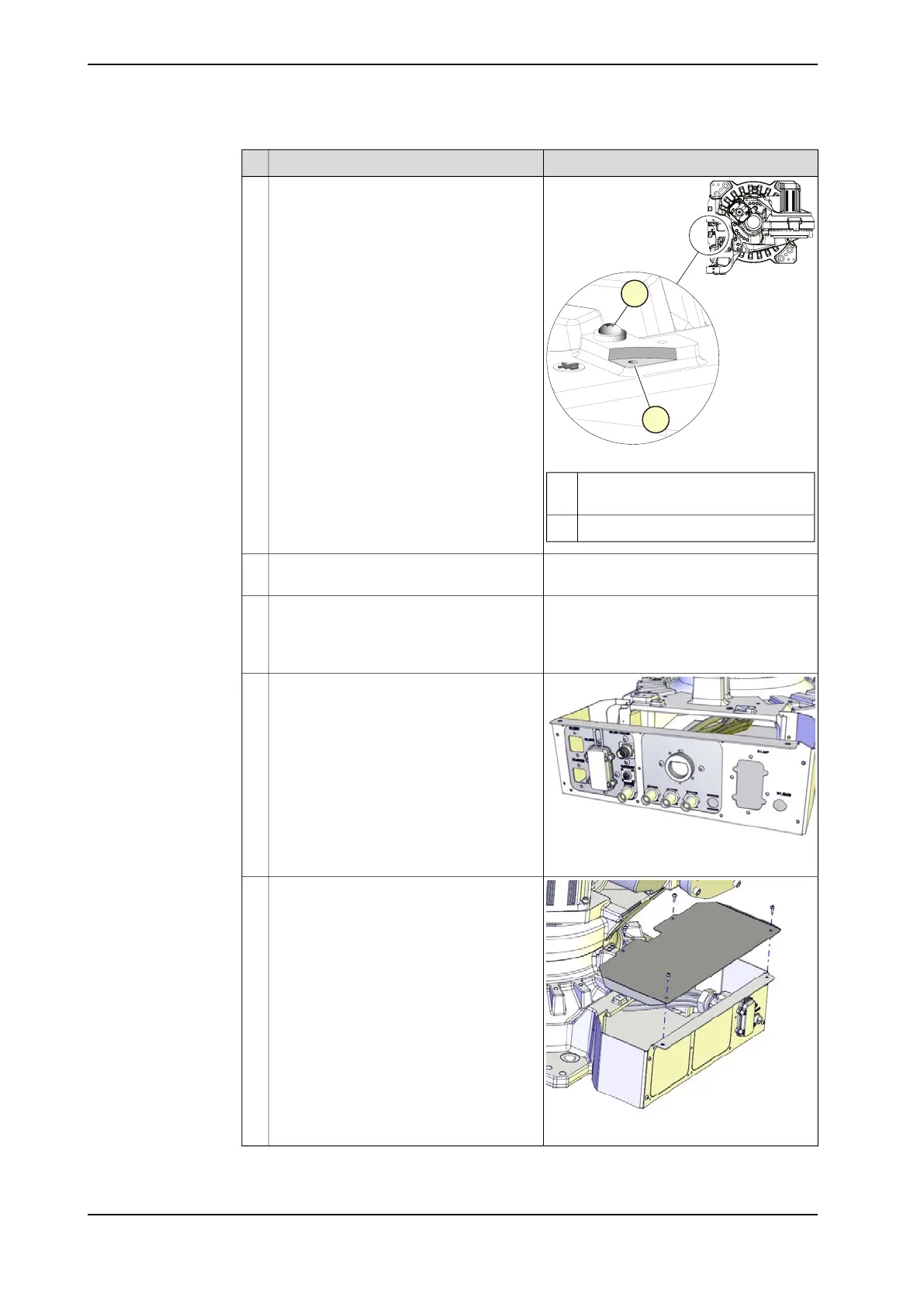

NoteAction
B
A
xx1300001972
M6x16 and Plain washer large
6.4x17x3
A
EarthB
Connect the earth cable.5
If used, run the DressPack cables down
through the protection tube in the base.
6
If used, run the DressPack hoses down
through the protection tube in the base.
7
Make sure that the hoses are running cor-
rectly and are not twisted!
xx1200000052
If used, connect the DressPack cable
package on the base plate.
8
xx1300000561
Refit the base cover.9
Continues on next page
472 3HAC044266-001 Revision: -
© Copyright 2013 ABB. All rights reserved.
4 Repair
4.8.1 Replacing the axis-1 gearbox
Continued
