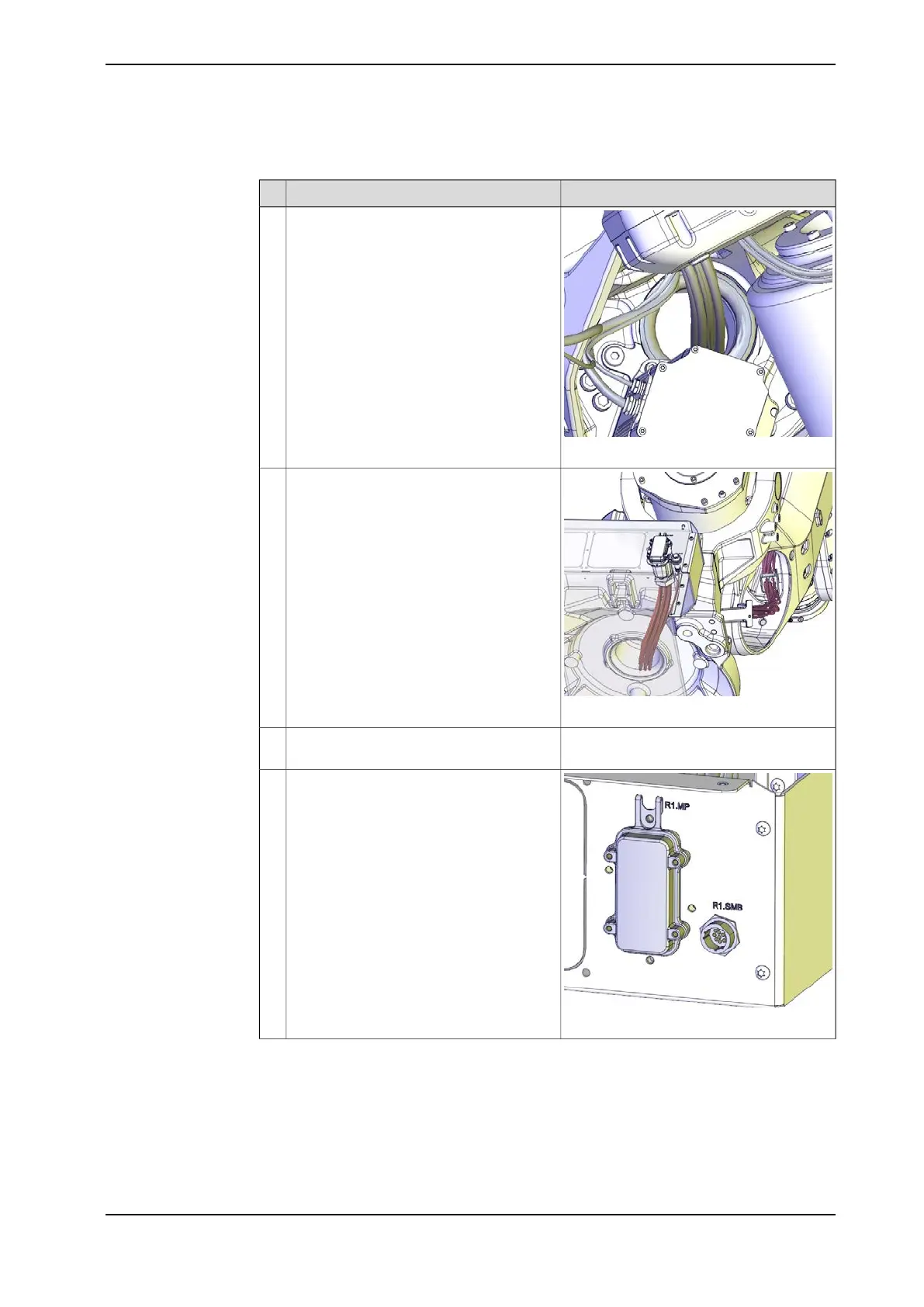

Refitting the cable harness in the base
NoteAction
xx1300000732
Use caution and run the cables down
through the protection tube in this order:
• R1.MP
• R1.SMB
1
xx1300000736
• Make sure that the cables are not
twisted. The cables shall be in line
with its position on the base plate.
• Make sure that the R1.SMB will be
on the right side (seen from behind
the robot).
• Make sure that the R1.MP will be on
the left side.
2
Make sure that the markings on the cables
are facing upwards when connected.
3
xx1300000591
Connect R1.MP and R1.SMB.4
