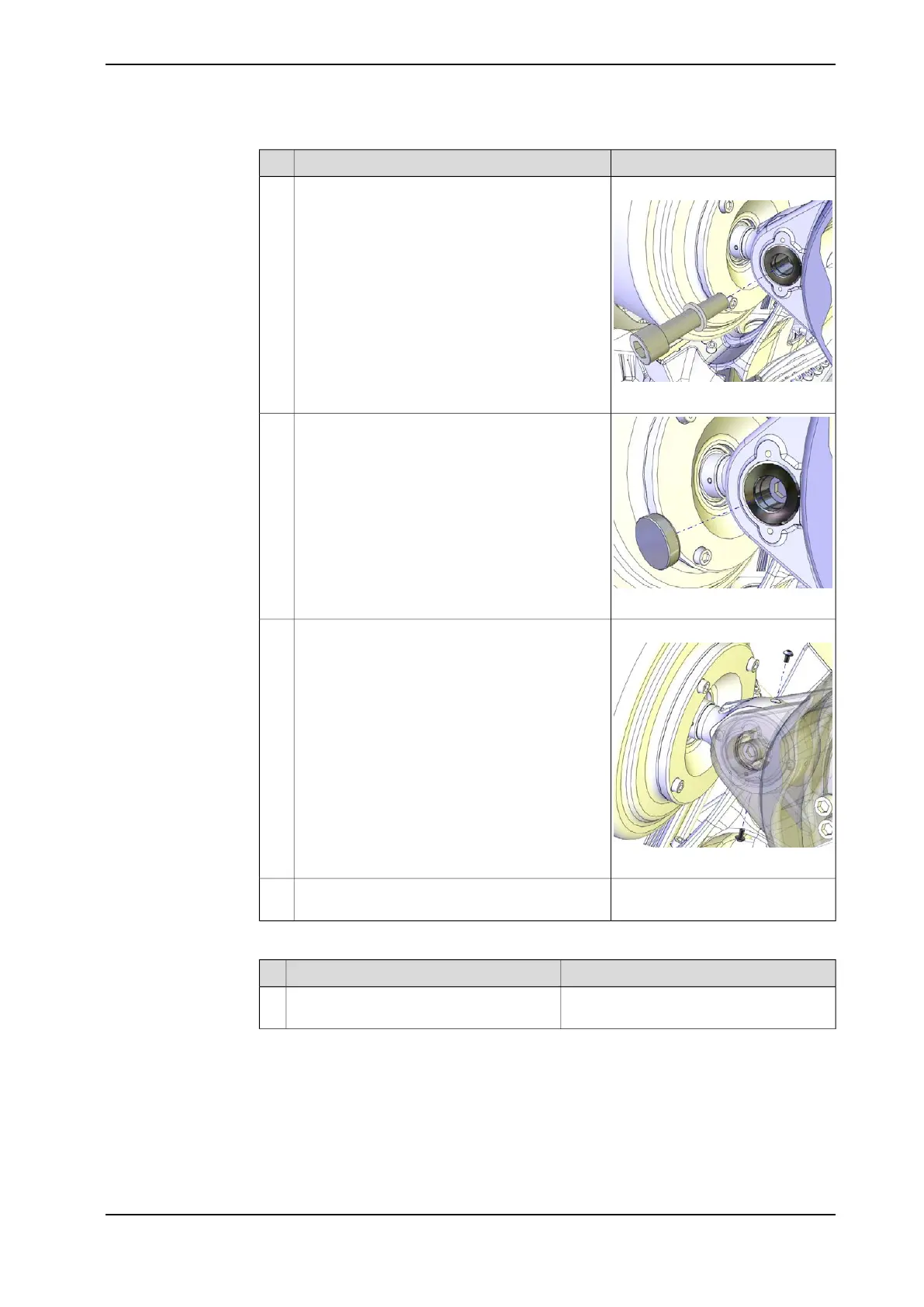

NoteAction
Tightening torque: 200 Nm
xx1200001279
Secure the shaft with screw and washer.9
xx1200001278
Fit the VK-cover.10
Grease: 3HAC042534-001
xx1300000783
Unscrew both screws in link ear and fill the bear-
ing with grease from the upper hole until the
grease appears in the lower hole.
11
Refit the two screws and wipe clean from residual
grease.
12
Concluded refitting of the front shaft
NoteAction
Remove the lifting accessory from the bal-
ancing device.
1
Continues on next page
3HAC044266-001 Revision: - 501
© Copyright 2013 ABB. All rights reserved.
4 Repair
4.8.2 Replacing the axis-2 gearbox
Continued
