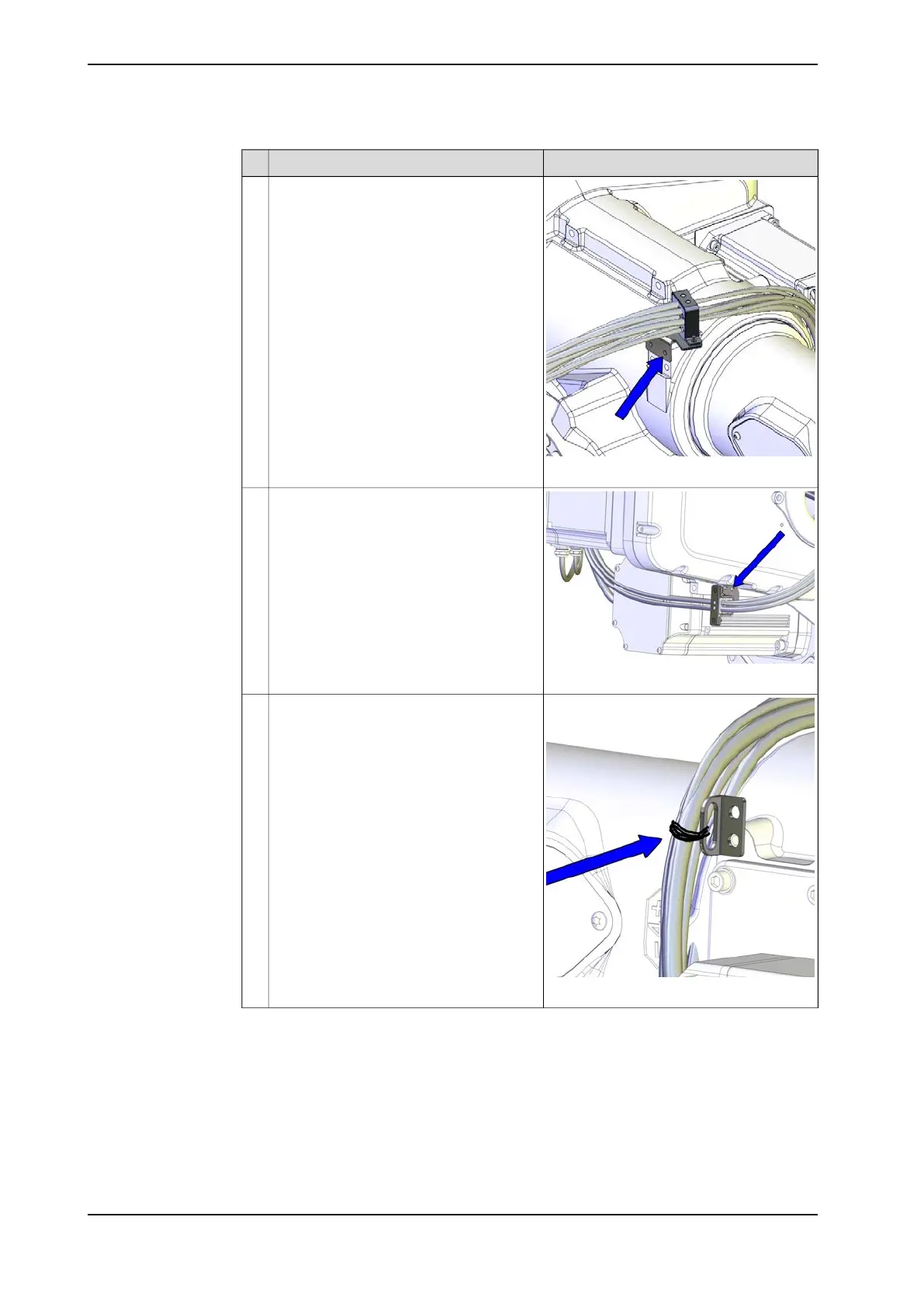

NoteAction
xx1300000541
Loosen the cable bracket on top of the arm
house by removing the screws.
2
xx1300000543
Loosen the cable bracket under the arm-
house by removing the screws.
3
xx1300000544
Open the velcro strap on cable fixing
bracket.
If equipped with DressPack, instead open
the velcro straps on the cable guide.
4
Continues on next page
510 3HAC044266-001 Revision: -
© Copyright 2013 ABB. All rights reserved.
4 Repair
4.8.3 Replacing the axis-3 gearbox
