NoteAction
xx1200001301

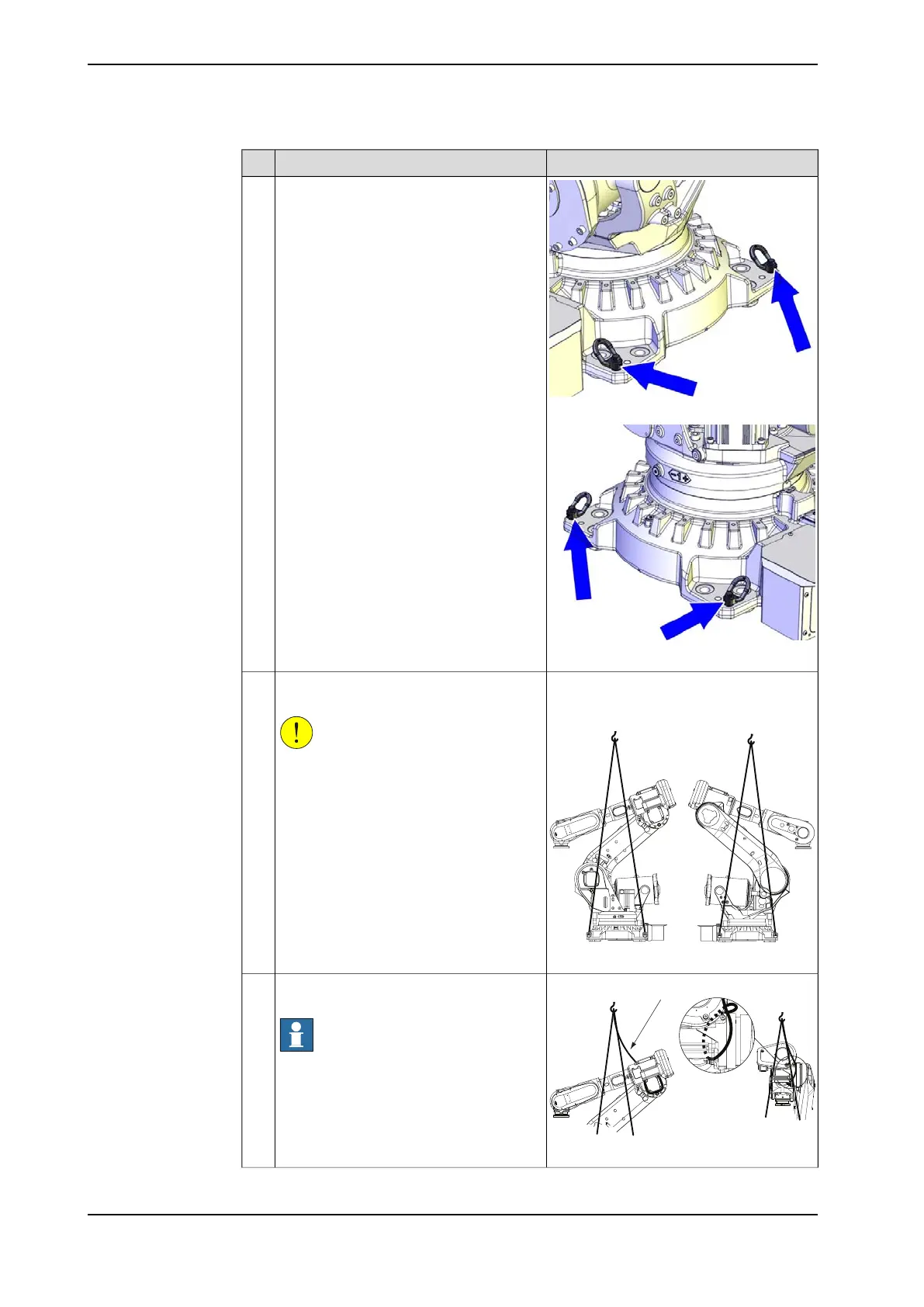

Fit lifting eyes to the outer holes on each
corner of the base.
2
xx1200001302
Make sure the roundslings do not rub
against any sharp edges.
Run roundslings through the lifting eyes
and fasten them in an overhead crane.
CAUTION
If the lifting eyes have sharp edges that
might damage the roundslings, lifting
shackles must be used to attach the
roundslings to the lifting eyes.
3
Roundsling, 2.5 m (4 pcs)
xx1300001572
Roundsling, 2 m
xx1300001573
Attach a securing roundsling at the rear
according to figure.
Note
The securing sling must not be strained at
lifting. It only secures for tipping.
4
Continues on next page
80 3HAC044266-001 Revision: -
© Copyright 2013 ABB. All rights reserved.
2 Installation and commissioning
2.4.4 Lifting the robot with roundslings
Continued
