Clearance Requirements
l Depending on your configuration, side air covers may be needed for your configuration.
They come either installed on the SH12 or included in the shipment. To determine if
side covers are needed with your configuration, see Accessory Installation
Requirements.
l When installing shelves in an enclosed cabinet, make sure that there is adequate
ventilation (such as air flow holes). See Supported Rack Requirements for important
supported installation features and requirements.
l Avoid mounting the shelf in an overly congested rack or directly next to another
equipment rack. Heat exhaust from other equipment can enter the inlet air vents and
cause an overtemperature condition.
l If you have more than one FSP 3000 C shelf in your rack, install the shelves without
gaps between them. If you must have gaps, close the gaps with a rack blind panel or a
fiber tray.
l Take care to prevent recirculation of exhaust air within a rack.
l Keep fiber-optic jumpers organized to minimize interference with the perforated part of
the fiber tray.
l Consider cooling requirements for additional shelves (later expansion of the system).

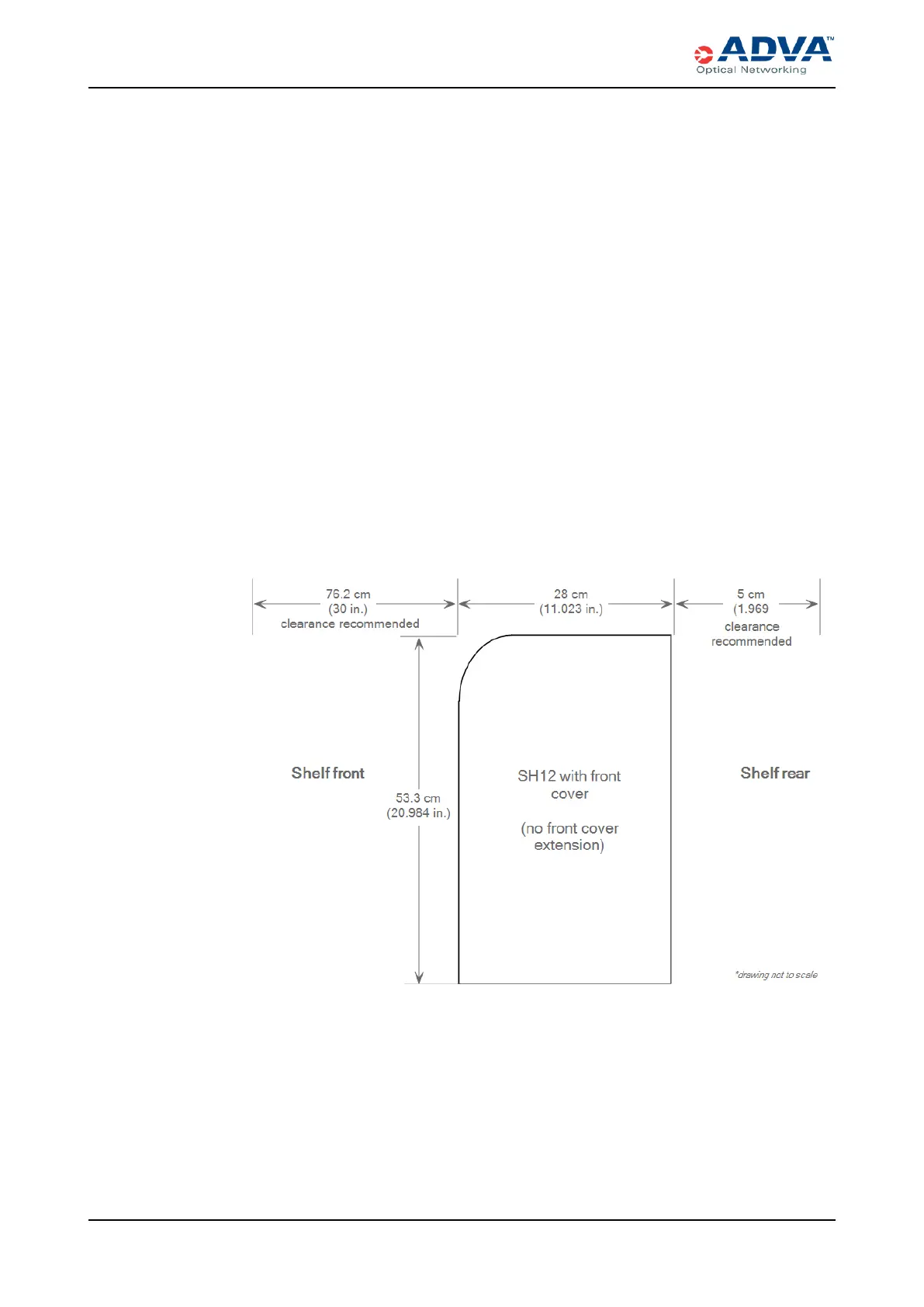

The following figures provide the minimum front and rear clearance recommendations for
installing and servicing the FSP 3000 C shelves.
Figure 31: SH12 — Single Rack Installation
