Required Tools and Equipment
Required Tools and Equipment
l ESD-preventive wrist strap or other personal grounding device
l Suitable grounded surface or a static-dissipative mat
l Torx T10 screwdriver
l Installation Overview — SH12 and SH4R Shelves
l Handling Shelves
l Site Preparation Checklist
Removing the Protection Plate
This procedure assumes that:
l The shelf has been mounted in the rack; and
l The modules have not been installed.
1. Verify that you are properly grounded with an anti-static wrist strap or heel strap
connected to the grounded ESD jack.
2. Use the Torx T10 screwdriver to remove the three screws as shown in the following
figure.

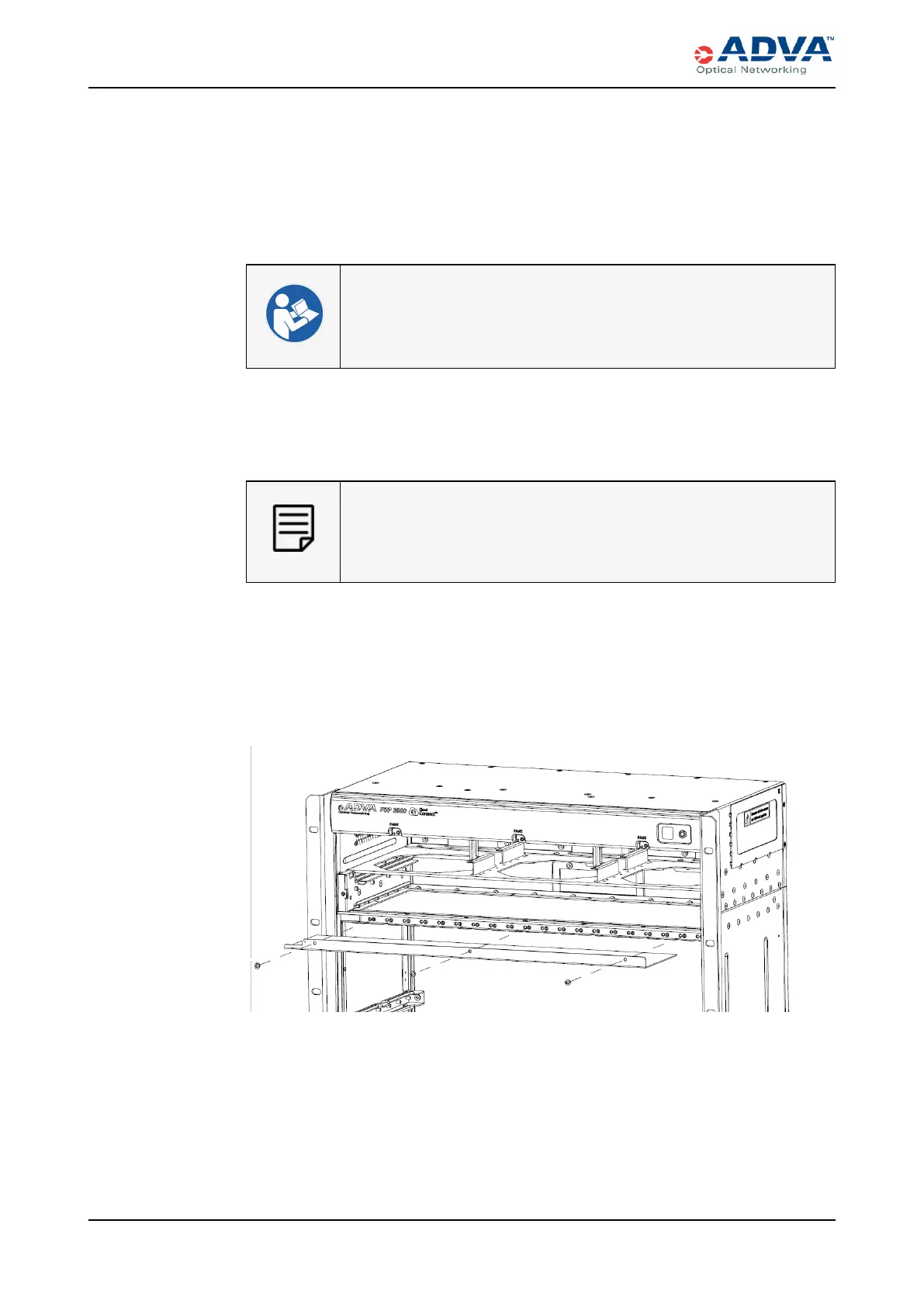

Figure 60: Protection Plate Removal
3. With both hands, carefully remove the protection plate.
4. Store the screws and protection plate for later use.
212 FSP3000 C Hardware Guide - R1.1 - Issue:A (12/09/2016)
