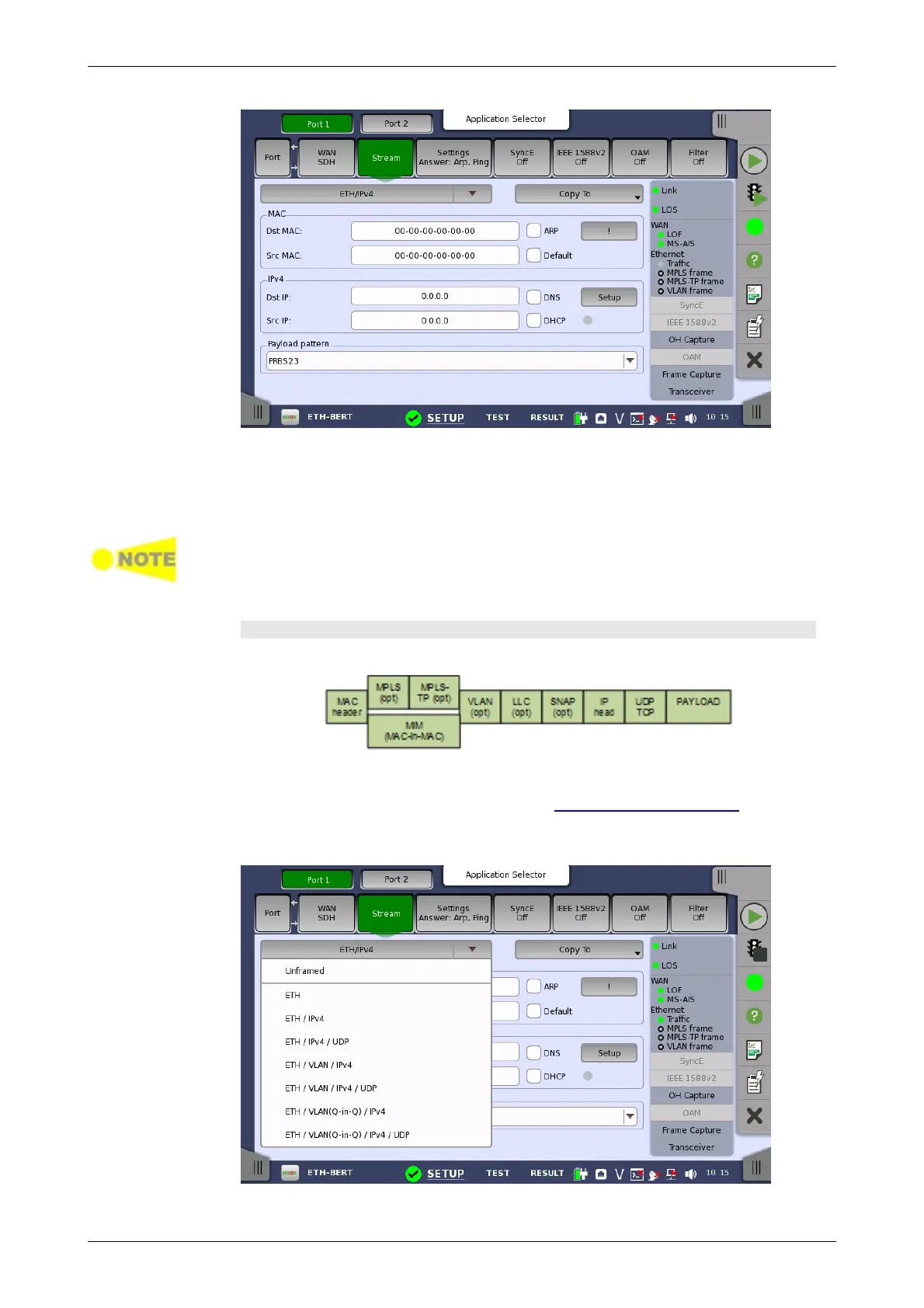

This screen contains the setup of the Ethernet frame content transmitted by
the Network Master. The exact layout depends on the current selection of
layers (i.e. the various encapsulation and protocol headers composing the
Ethernet frame). Including a layer will display its specifically related
configuration options.
Only the most important (i.e. most frequently used) configuration parameters
are displayed here for each specified layer. To access all parameters, launch the
frame composition 'Stream Setup' dialog box accessible via the button in the
top left-hand part of the screen.
Composing the Ethernet frame
The following headers/layers are available for the frame configuration:
You can use either a 'quick' mode or a 'detailed' mode to set up the selection
of headers/layers. Touching the button at the top of the setup area will
launch the detailed mode dialog box (the Stream Setup dialog box ).
Touching the arrow to the right of the button will open the quick selection
menu.
