Transport
protocol
Allows you to choose which mechanism to use for calculating the mean
path delay: Delay request/response or Peer delay.
You can set up the transport protocol(s) for PTP messages either by
selecting one of the predefined configurations from the quick selection
menu (e.g. ETH/VLAN/IPv4/UDP) or by configuring the protocols via the
detailed mode dialog box. Touching the protocol button will launch the
detailed mode dialog box (the IEEE 1588v2 Protocol dialog box). Touching
the arrow to the right of the button will open the quick selection menu.

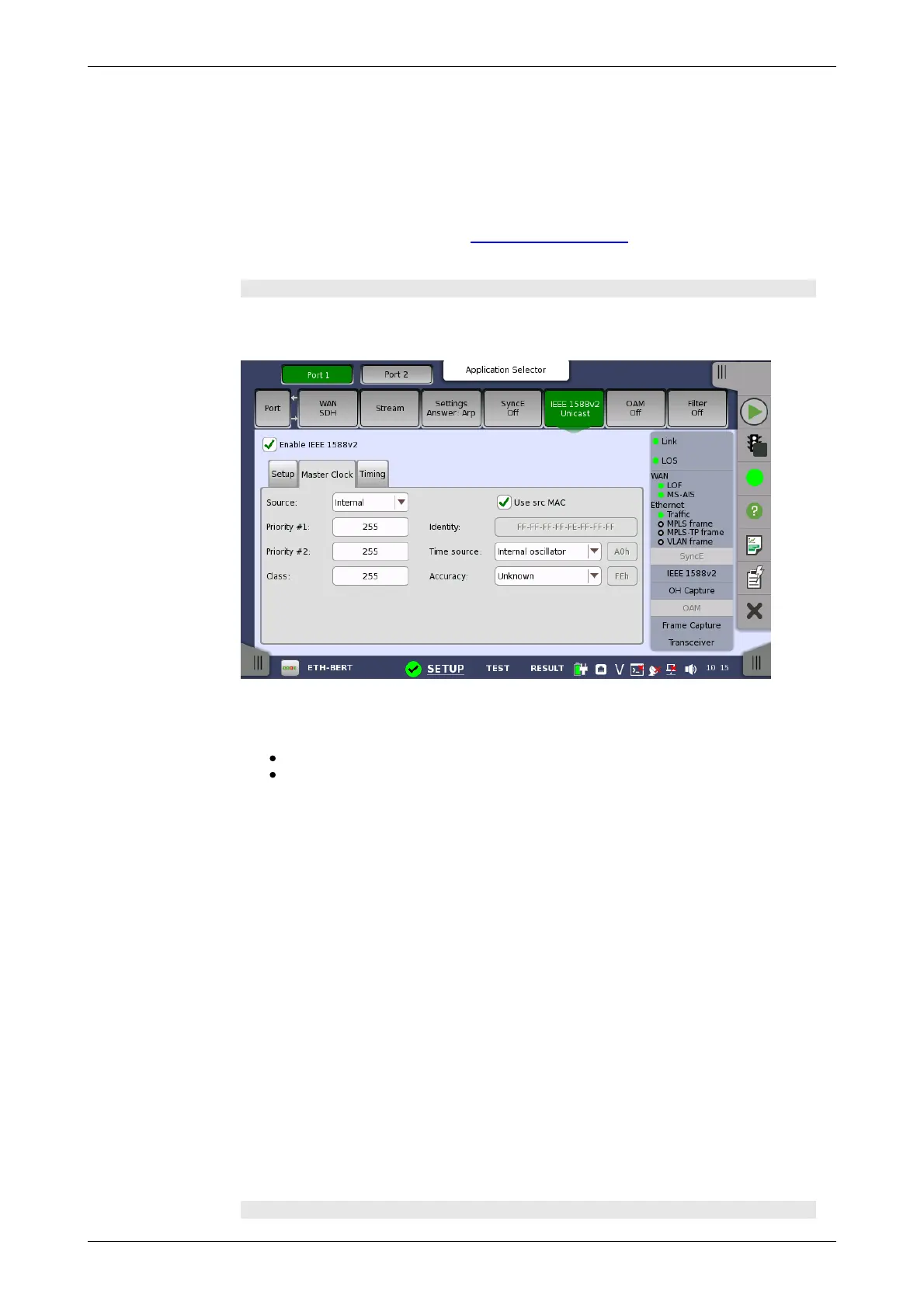

Master Clock tab page
The Master Clock tab page contains the parameters related to the clock-
specific setup. Note that it is not enabled if the port is set in Slave Mode.
Source
Allows you to specify where the time of the clock should come from.
Internal (Current instrument time)
GPS (Requires external GPS Sensor)
Priority #1/#2
Allows you to specify the priority 1 and priority 2 values. Acceptable values
are between 0 and 255.
Class
Allows you to specify the clock class. Acceptable values are between 0 and
255.
Identity
Allows you to specify the 64 bit clock identity. You can either use the Source
MAC to generate the identity (by selecting the Use src MAC check box) or
you can type the identity yourself (using the address field).
Time source
Either choose one of the predefined time sources in the drop-down menu, or
select User defined and enter a value manually. Acceptable values are
between 0x00 and 0xFF.
Accuracy
Either choose one of the predefined accuracies in the drop-down menu, or
select User defined and enter a value manually. Acceptable values are
between 0x00 and 0xFF.
Timing tab page
