Summary field
List-form
information
Graphical
presentation
7.4.3.2 Detailed

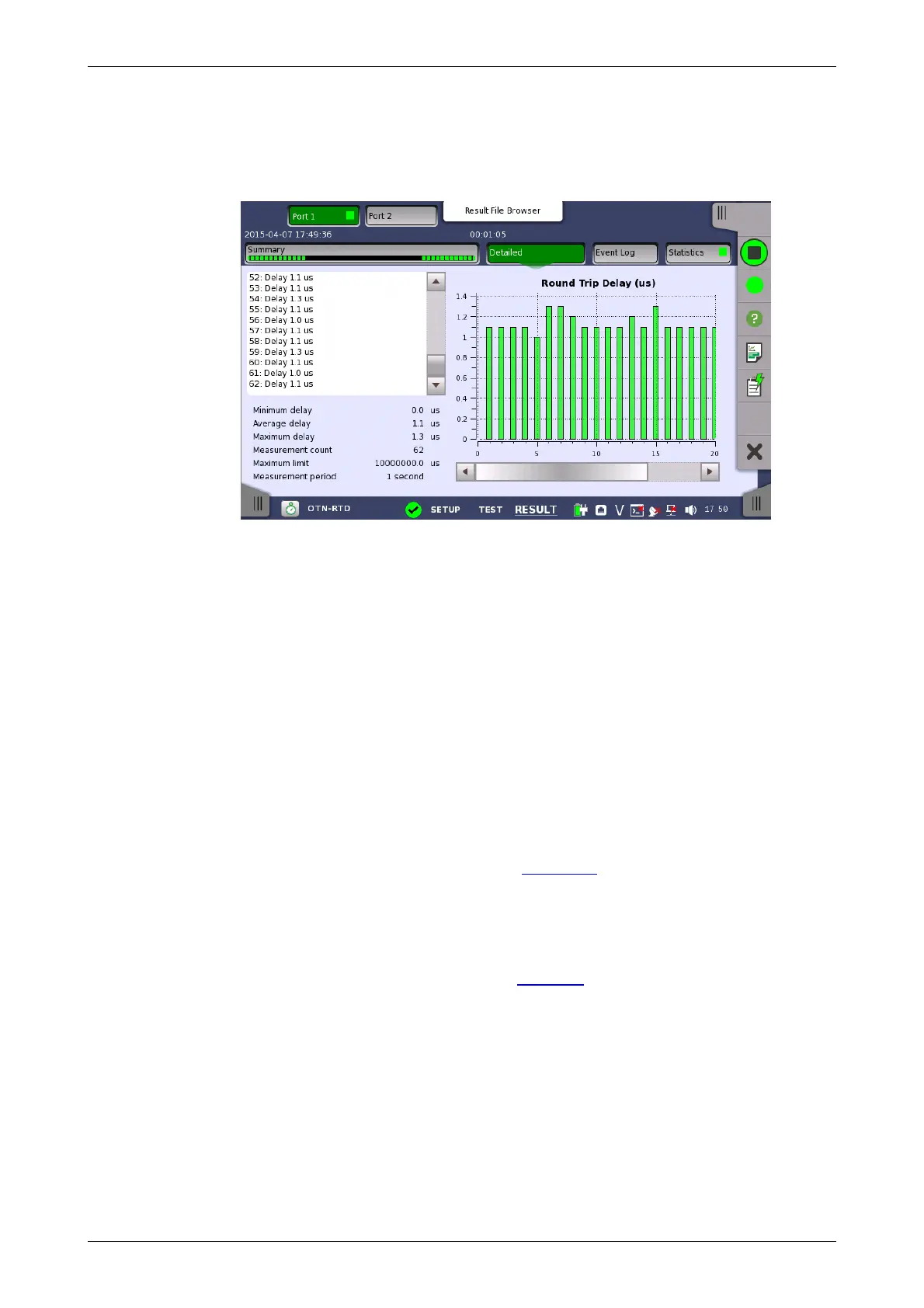

Touching the Detailed button in the navigation area will display the screen
shown below.
Buttons for selecting the relevant port are displayed at the top of the screen,
with a color indication of the pass/fail status of the test.
This screen presents the detailed results of an RTD test. The result is shown
in both list-form and in a graphical presentation. This screen contains the
summary field displayed below the list.
Consists of the minimum, maximum, and average round-trip delay times in
micro seconds, the number of measurements, the specified threshold value
and measurement period.
Presents the results of an RTD test in list-form.
The graphical presentation consists of a bar diagram of the round-trip delay
times.
7.4.3.3 Event Log
Touching the Event Log button in the navigation area displays the screen
providing the event log data. Refer to Event Log of SDH/SONET/PDH/DSn
BERT application.
7.4.3.4 Statistics
Touching the Statistics button in the navigation area displays the screen
providing the statistics data. Refer to Statistics of BERT for the operation.
