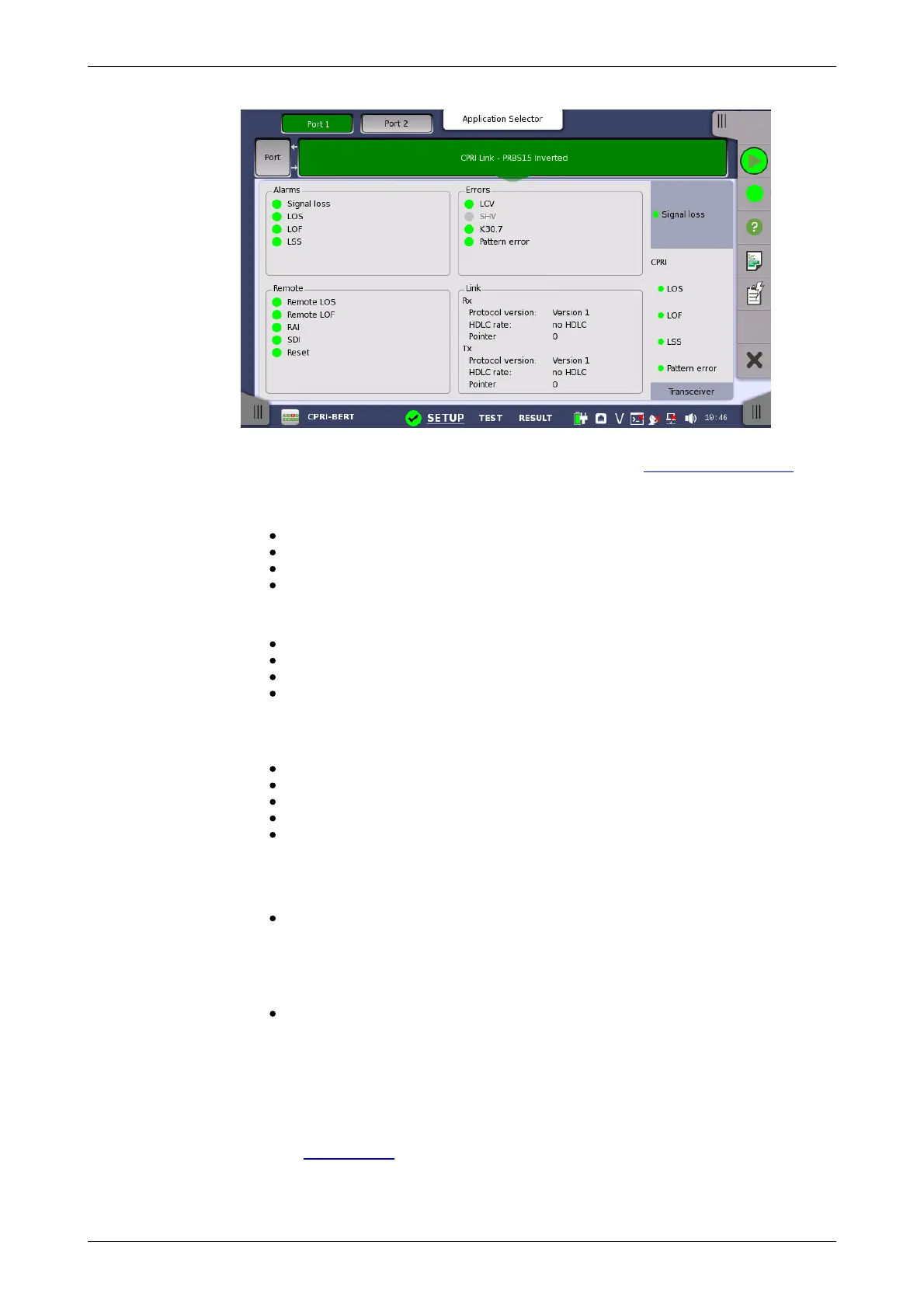

This screen contains detailed alarm and error information related to the
CPRI/OBSAI interface. Status is indicated by the use of colored Lamp icons.
Remote and Link are displayed only when the content is set to CPRI.
Alarms
Signal loss: Optical signal is not detected.
LOS: Loss of Signal
LOF: Loss of Frame
LSS: Loss of Signal Synchronization
Errors
LCV: Line Code Violations (8B/10B decoding)
SHV: Sync Header Violation (64B/6B decoding)
K30.7: Invalid 10B code (8B/10B decoding)
Pattern error : Bit error of the pattern
Remote
Shows the received CPRI Layer 1 bits status.
Remote LOS: Loss of Signal detection
Remote LOF: Loss of Frame detection
RAI: Remote Alarm Indication
SDI: SAP (Service access point) Defect Indication
Reset: Master - Reset acknowledge, Slave - Reset request
Link
Shows the CPRI Link status.
Rx
Protocol version
HDLC rate
Pointer
Tx
Protocol version
HDLC rate
Pointer
8.1.3.4 Transceiver
Refer to Transceiver in "Ethernet Setup and Status".
8.1.4 Error/Alarm Insertion
