9.3.2.2 Thresholds

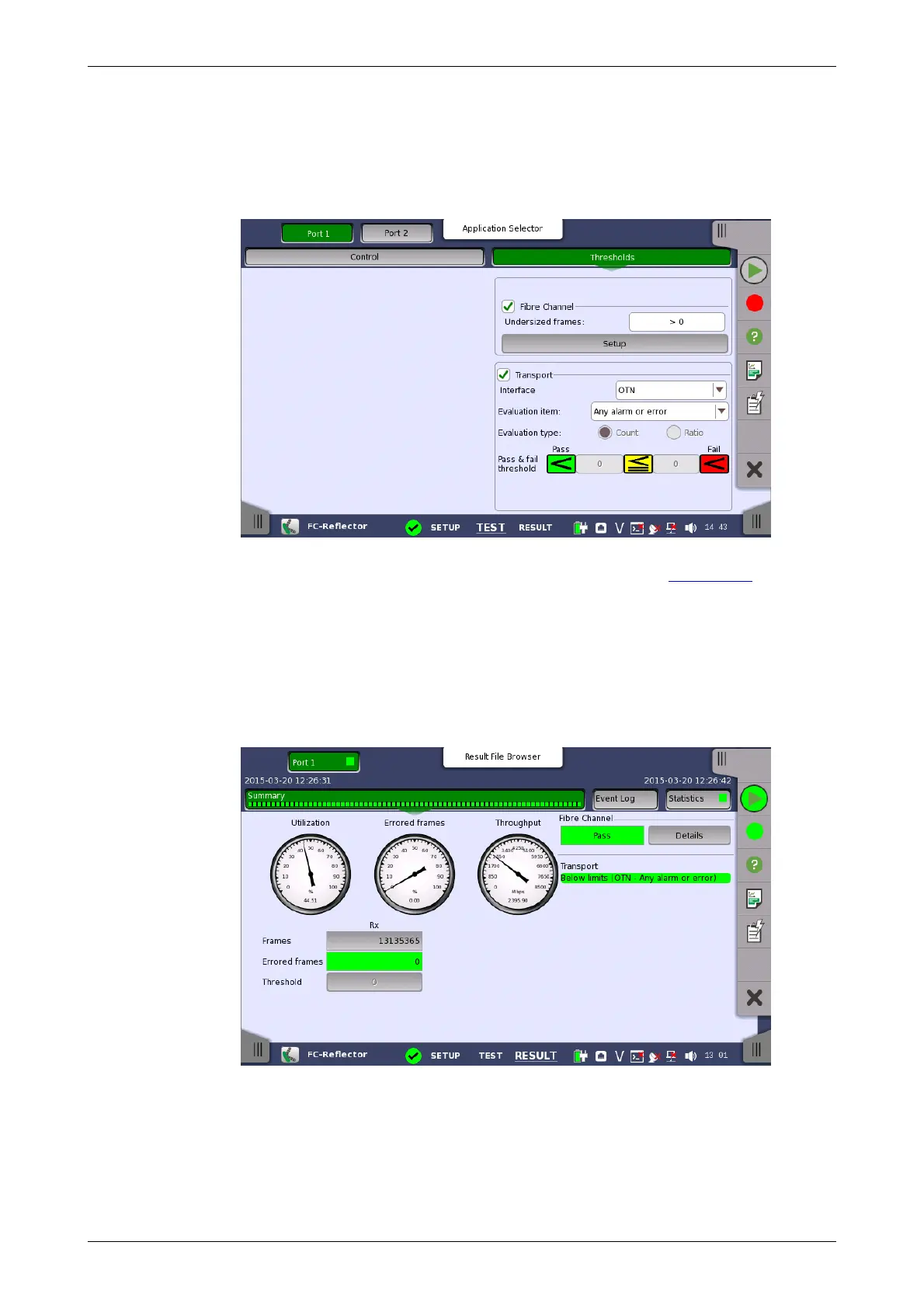

Touching the Thresholds button in the navigation area displays the
following screen.
The Follow button appears when the Port 2 settings can follow Port 1.
Transport settings appear if the FC signal is carried by OTN.
For operation of Fibre Channel and Transport, refer to Thresholds in BERT
section.
9.3.3 Test Results
9.3.3.1 Summary
When you go to the test results of the Fibre Channel Reflector application,
the following screen is displayed.
This screen contains a summary of the results of the FC Reflector test. The
information includes such things as number of errored frames and number
of exceeded thresholds.
The three dials showing Utilization, Errored frames and Throughput results.
Utilization, Errored frames and Throughput can be enlarged by touching on
them. The black needle points the measured value in the latest period.
