10.2 VIP
Video Inspection Probe (VIP) application allows you to view the edge surface of
an optical fiber by using the optional accessory Video Inspection Probe. The
captured image and analysis results can be saved to files.

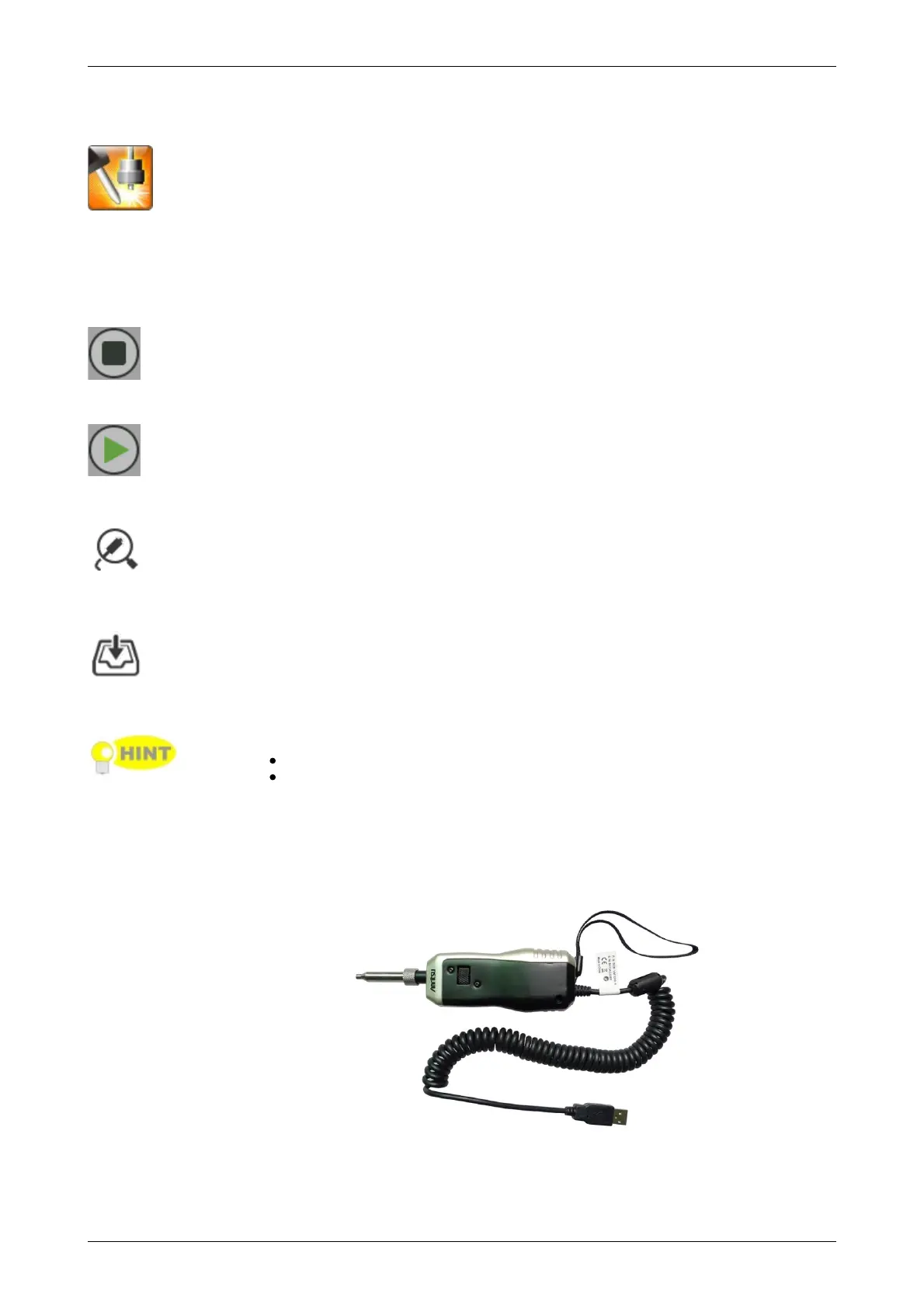

10.2.1 Application Toolbar
Icons for VIP use appear on Application Toolbar.
Capture
Touch the Stop icon to capture the live image.
Live
Touch the Start icon to display the live image on the screen.
Analyze
Touch the Analyze icon to start analyzing the captured image.
Save
Touch the Save icon to save the image and analysis results to files.
Only Load Save icon appears on the Expanded Application toolbar.
The VIP images and analysis results can be loaded by touching the icon.
The analysis result file (extension vipi) is compatible with following models.
MT9083 Series Access Master
MU909014x, MU909015x μOTDR Module
10.2.2 Connecting the Video Inspection Probe
Connect the USB connector of the Video Inspection Probe to Network Master.
G0306A Video Inspection Probe
