Probe Setup
Auto Analysis
Auto File Name
Settings
Replace the adaptor of the Video Inspection Probe with one that matches the
optical connector.
For handling the Video Inspection Probe, refer to the operation manual that
came with the Video Inspection Probe.
Network Master also supports following the Video Inspection Probes.
OPTION-545VIP USB 200/400x Video Inspect Probe
G0293A Video Inspection Probe Lite
At the lower left area of the screen, this icon indicates the connection
status of the Video Inspection Probe.
10.2.3 Test Setup

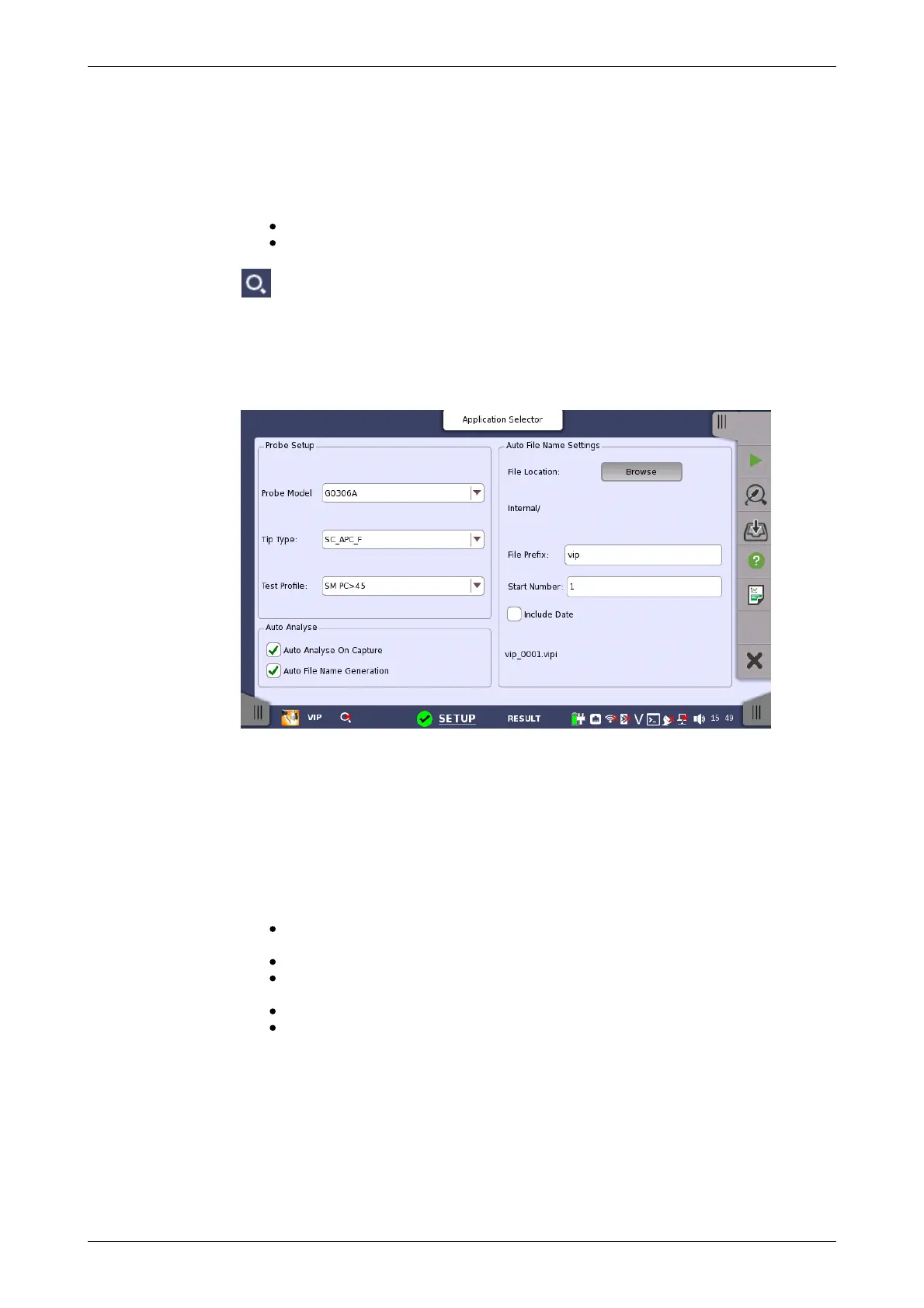

When you go to the test setup of the VIP application, the following screen is
displayed.
This screen allows you to configure the parameters related to a VIP test.
Probe Model
Select the model of the Video Inspection Probe.
Tip Type
Select the type of fiber to be observed.
Test Profile
Select the observing fiber type.
SM PC>45: Single Mode Fiber, Physical Contact, Return Loss is more
than 45 dB.
SM APC: Single Mode Fiber, Angled Physical Contact
SM PC>25: Single Mode Fiber, Physical Contact, Return Loss is more
than 25 dB.
MM PC 62.5: Multi-Mode Fiber, Physical Contact, Core diameter 62.5 μm
MM PC 50.0: Multi-Mode Fiber, Physical Contact, Core diameter 50 μm
Auto Analyze On Capture
Executes Auto Analyze when the image has been captured.
Auto File Name Generation
File name is generated automatically when saving the file. Selecting the
check box activates Auto File Name Settings.
File Location
Touch the Browse button to select a folder to save files.
