4. Connect an Ethernet network cable to the LAN connector on your
Network Master and link this to a Local Area Network.
5. Assign an IP address to the Network Master. This is done in the Ethernet
available in the Network screen as described in the Graphical User
Interface chapter.

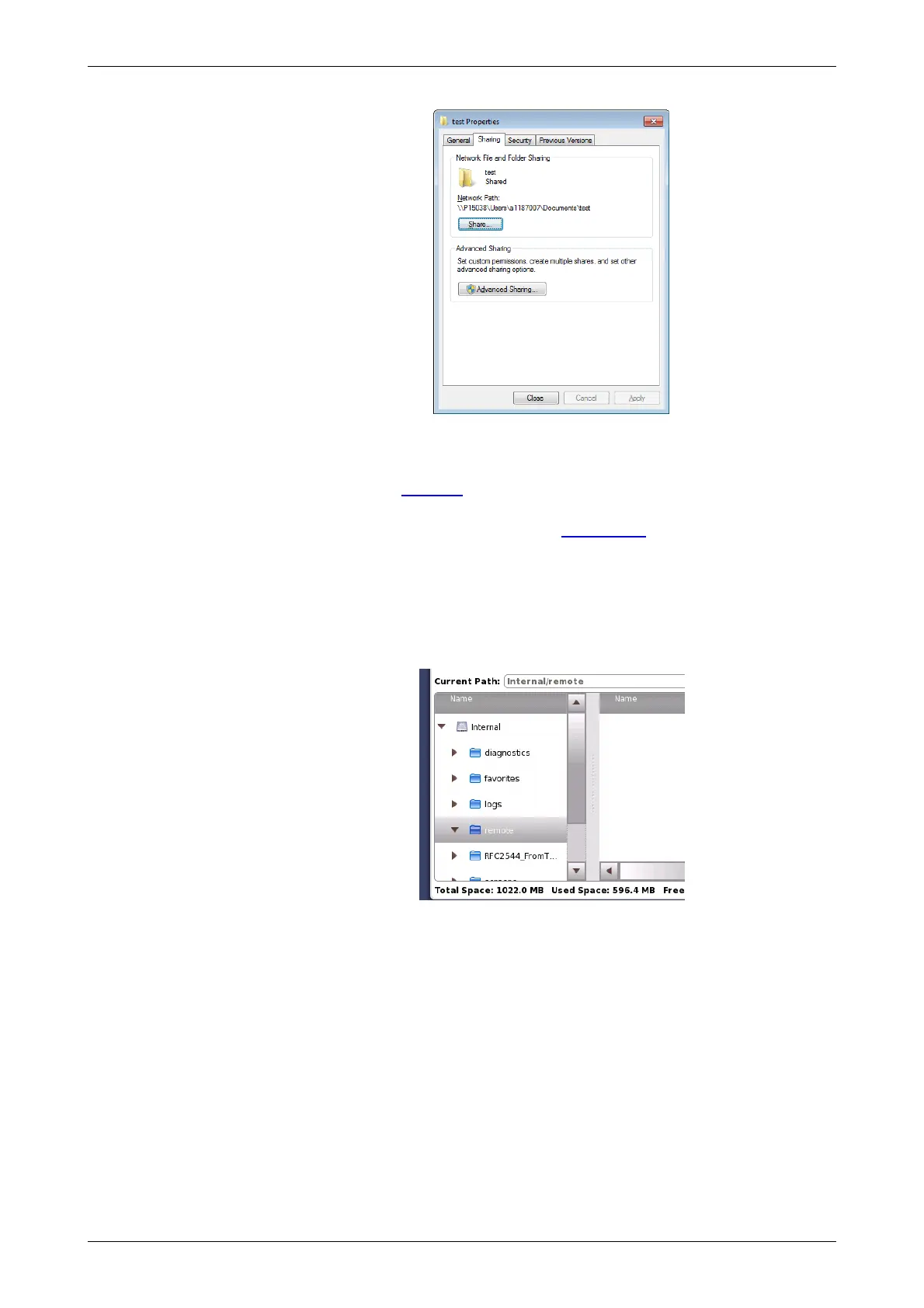

6. Select Mount Remote Folder in the File Sharing settings.
7. Enter the IP address of networked PC, User name, Folder name etc.
Note that enter User name of User Account of the PC.
8. Touch Apply. If the remote folder has mounted, "CONNECTED" will be
shown. Then close dialog box.
9. Touch File Manager icon in Instruments Toolbar. The PC shared folder will
be mounted to the instrument Internal\remote folder.
3.9 External GPS Receiver
