INTERIOR TRIM 9G–3

DAEWOO M-150 BL2

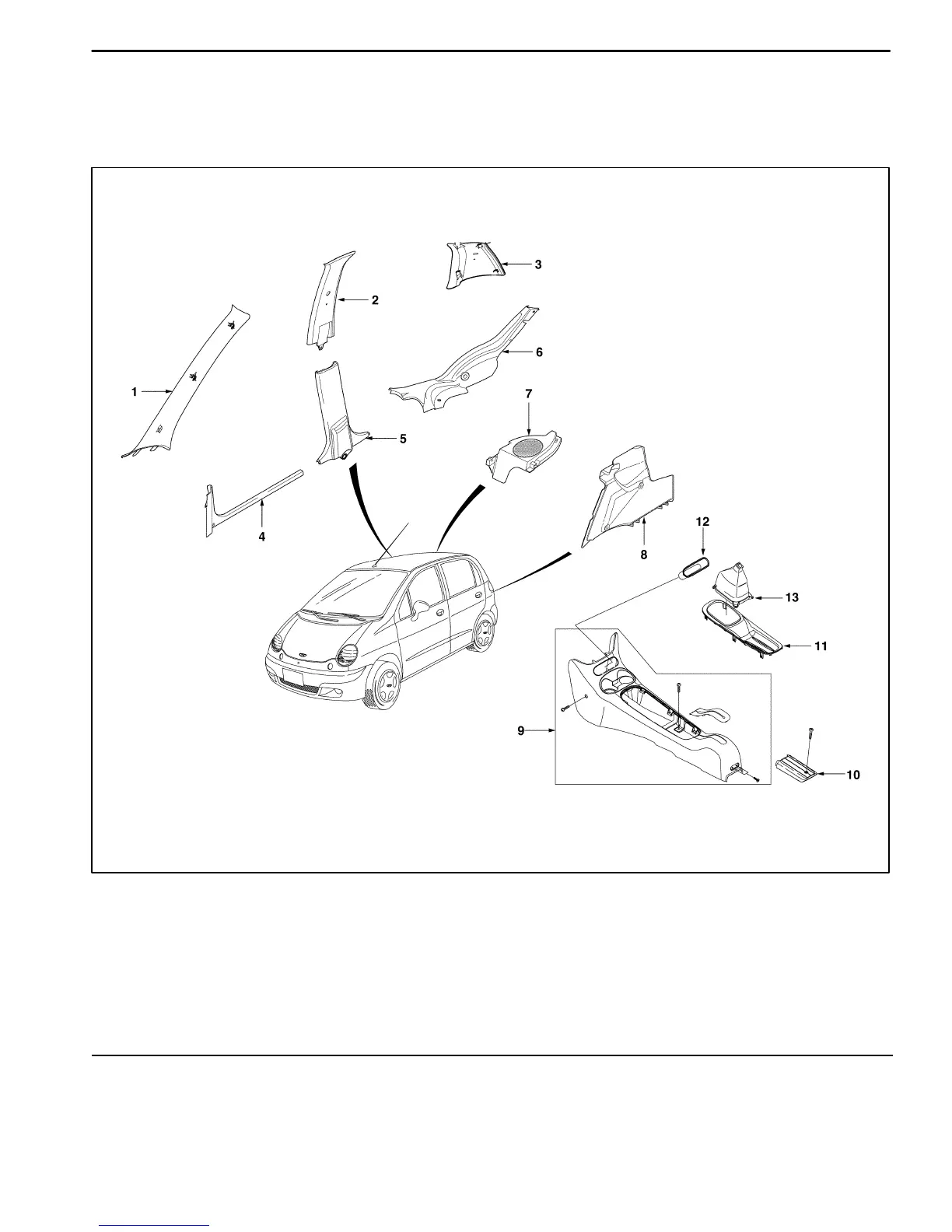

COMPONENT LOCATOR

INTERIOR TRIM

D19E402A

1. A–Pillar Trim Panel

2. B–Pillar Upper Trim Panel

3. C–Pillar Trim Panel

4. Front Rocker Trim Panel

5. B–Pillar Lower Trim Panel

6. Rear Rocker Trim Panel

7. Rear Parcel Side Shelf

8. Wheel House Trim Panel

9. Floor Console

10. Parking Brake Cable Cover

11. Console Cover Assembly

12. Deposit Box

13. Console Boot Assembly
