INSTRUMENTATION/DRIVER INFORMATION 9E–3

DAEWOO M-150 BL2

COMPONENT LOCATOR

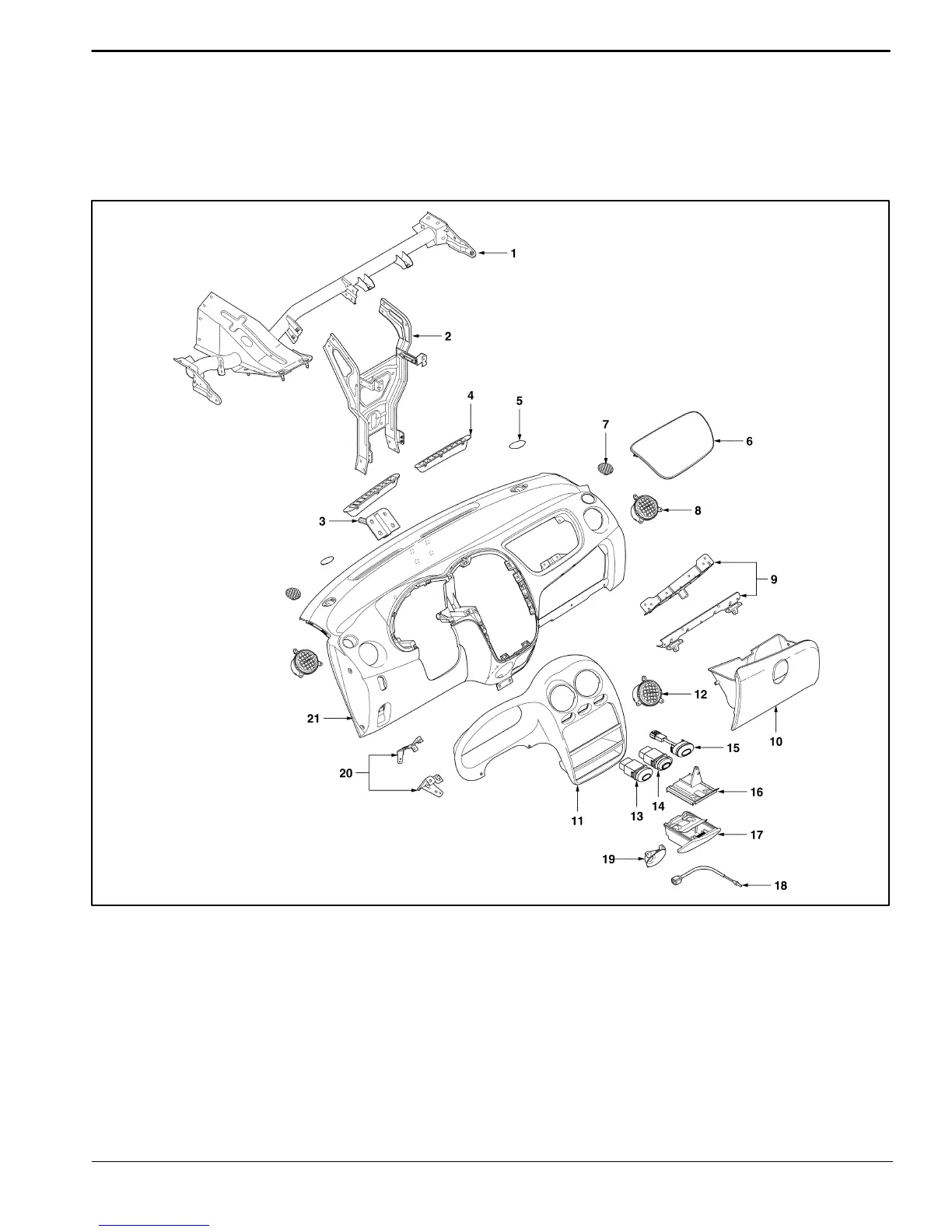

INSTRUMENT PANEL ASSEMBLY

(Left–Hand Drive Shown, Right–Hand Drive Similar)

D19B401A

1. Tie–Bar

2. Tie–Bar Center

3. Instrument Panel Guide

4. Defroster Grille

5. Instrument Panel Upper Cap

6. Passenger’s Airbag Blank Cover

7. Demister Grille

8. Side Ventilation Grille

9. Glove Box Bracket

10. Glove Box

11. Instrument Cluster Housing Molding

12. Center Ventilation Grille

13. Switch Blank Cover (Fog Lamp Switch)

14. Hazard Warning Switch

15. Immobilizer LED Indicator Switch

16. Ashtray Bracket

17. Ashtray

18. Ashtray Lamp

19. Cigar Lighter Housing

20. Instrument Cluster Bracket

21. Instrument Panel
