4G–4 PARKING BRAKE
DAEWOO M-150 BL2
REPAIR INSTRUCTIONS
ON-VEHICLE SERVICE
D107D501
PARKING BRAKE LEVER
Removal Procedure
1. Remove the parking brake lever cover. Refer to Sec-
tion 9G, Interior Trim.
2. Remove the parking brake cable cover. Refer to Sec-
tion 9G, Interior Trim.
3. Remove the parking brake lever.

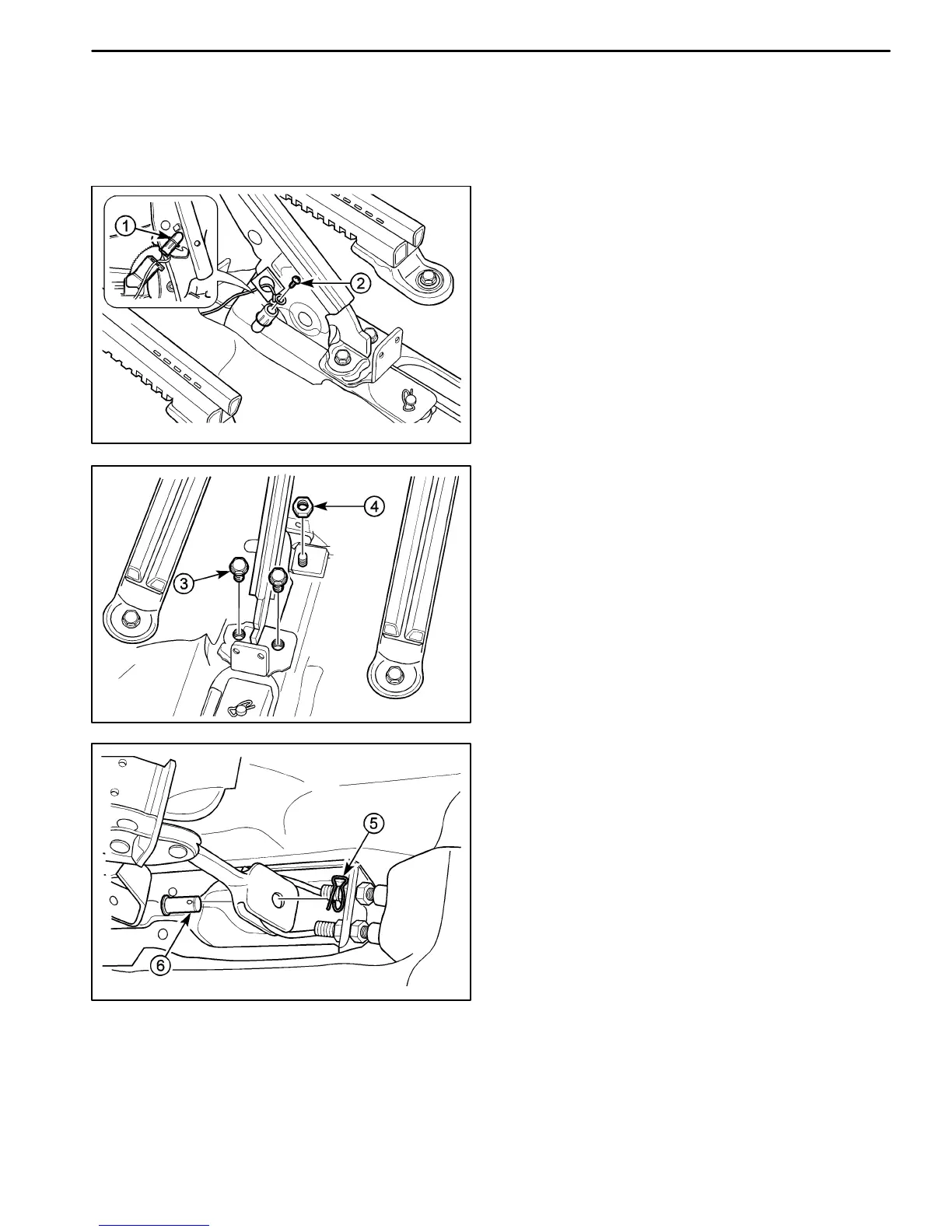

D Disconnect the brake warning lamp switch (1).
D Remove the brake warning switch lamp screw (2).
Important: The brake warning lamp switch screw should
be removed with the lever fixed.
D107D502
D Remove the bolts (3).
D Remove the nut (4).
D107D503
D Remove the cotter pin (5).
D Remove the pin (6).
To Next Page
