7A–28 HEATING AND VENTILATION SYSTEM
DAEWOO M-150 BL2
UNIT REPAIR
D108A701
HEATER CORE
Disassembly Procedure
1. Remove the heater module. Refer to “Heater Module”
in this section.
2. Remove the heater core.

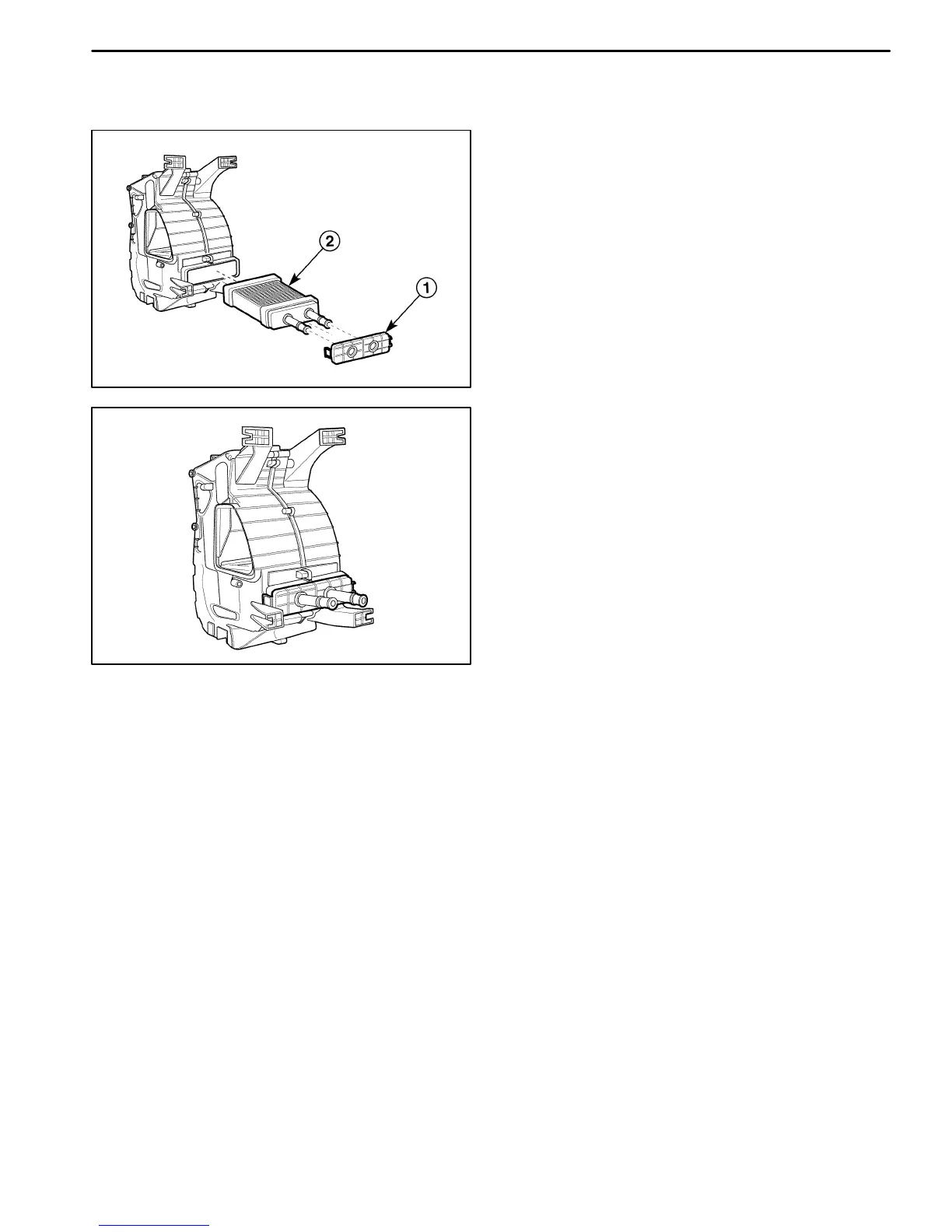

D Remove the heater core cover (1).
D Remove the heater core (2).
D108A702
Assembly Procedure
1. Install the heater core to the heater module.
2. Install the heater core cover.
3. Install the heater module. Refer to “Heater Module” in
this section.
