ENGINE COOLING 1D–11
DAEWOO M-150 BL2
D102D505

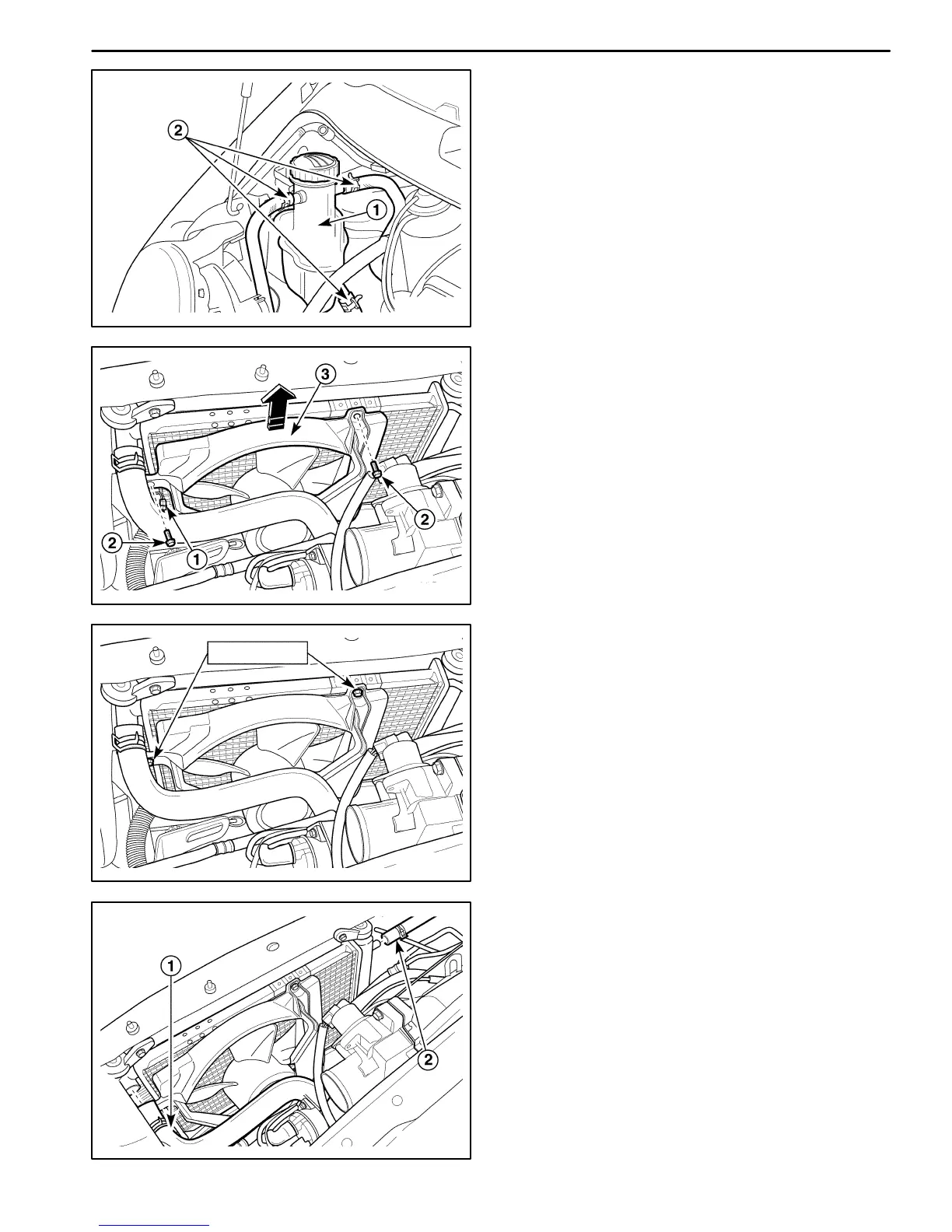

Installation Procedure
1. Install the surge tank to the vehicle.
D Install the surge tank with pressing down (1).
D Connect the overflow hoses to the surge tank (2).
2. Secure the overflow hoses to the surge tank with the
hose clamps.
3. Fill the surge tank with coolant to the MAX mark.
D102D506
ELECTRIC COOLING FAN
Removal Procedure
1. Disconnect the negative battery cable.
2. Remove the electric cooling fan assembly.
D Disconnect the cooling fan electrical connector (1).
D Remove the bolts (2).
D Remove the electric cooling fan assembly (3).
3.5–4.5 NSm
D12D507A
Installation Procedure
1. Install the electric cooling fan assembly with the bolts.
Tighten
Tighten the bolts to 3.5–4.5 NSm (31–40 lb-in).
2. Connect the cooling fan electrical connector.
3. Connect the negative battery cable.
D12D5081
RADIATOR
Removal Procedure
1. Disconnect the negative battery cable.
2. Disconnect the lower radiator hose and drain the en-
gine cooling system. Refer to “Draining and Refilling
the Cooling System” in this section.
3. Disconnect the upper radiator hose and the surge
tank hose.
D Loosen the upper radiator hose clamp and discon-
nect the upper radiator hose (1).
D Loosen the surge tank hose clamp and disconnect
the surge tank hose (2).
To Next Page
