9L –12 GLASS AND MIRRORS
DAEWOO M-150 BL2
D19E521A
3. Install the division bar with the guide rail inside bolt,
the guide rail outside bolt and the guide rail screw.
4. Install the outside rearview mirror. Refer to “Glass
and Mirrors” in this section.
5. Install the front door seal trim. Refer to Section 9P,
Doors.
D109E521

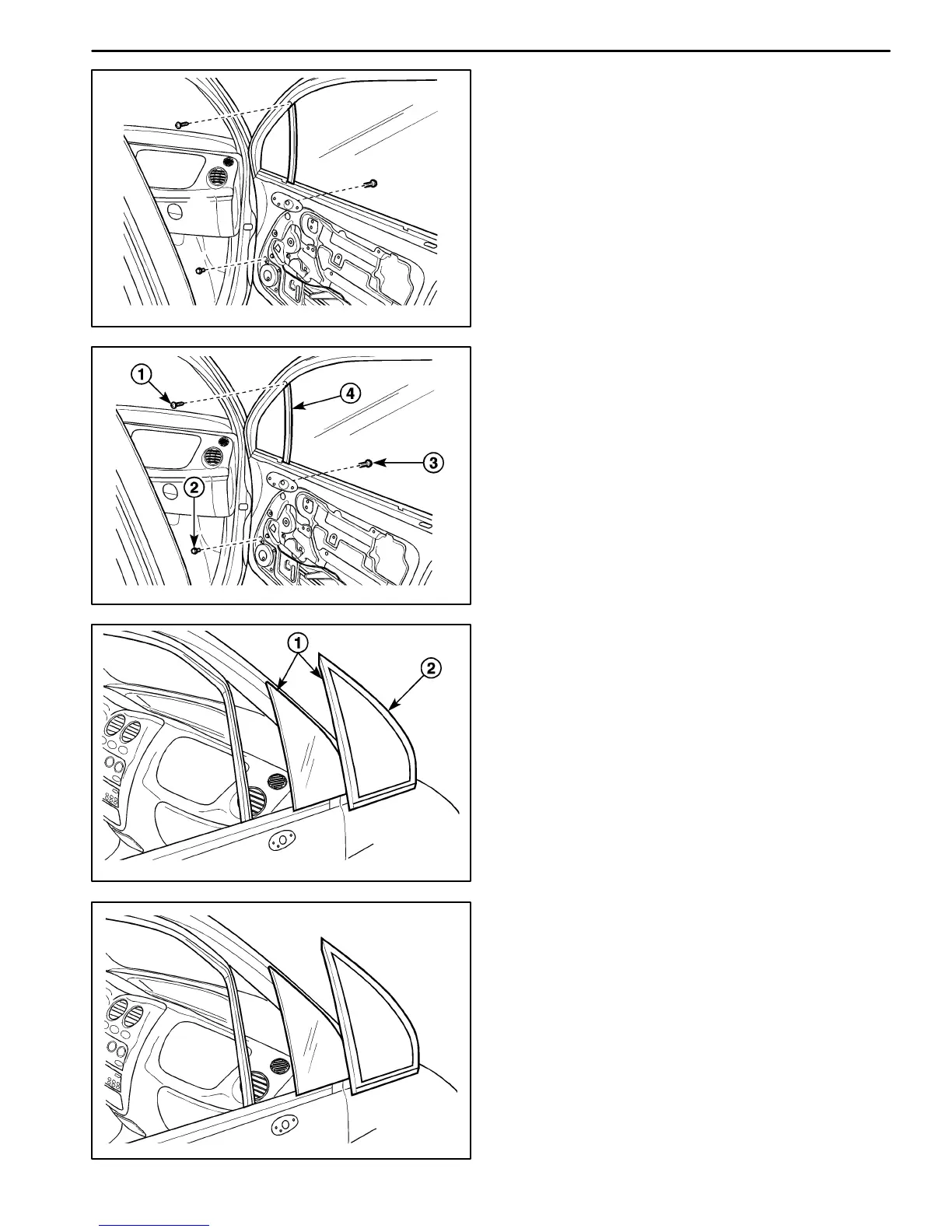

FRONT DOOR QUARTER GLASS
Removal Procedure
1. Remove the front door seal trim. Refer to Section 9P,
Doors.
2. Remove the outside rearview mirror. Refer to “Out-
side Rearview Mirror” in this section.
3. Remove the guide rail.
D Remove the screw (1).
D Remove the inside bolt (2).
D Remove the outside bolt (3).
D Remove the division bar (4).
D109E525
4. Remove the quarter glass from the front door.
D Remove the quarter glass assembly (1).
D Remove the quarter glass run (2).
D19E525A
Installation Procedure
1. Install the quarter glass with the quarter glass run.
To Next Page
