Daewoo MATIZ - Stoplamps Circuit

To Next Page

To Previous Page

LIGHTING SYSTEMS 9B–21

DAEWOO M-150 BL2

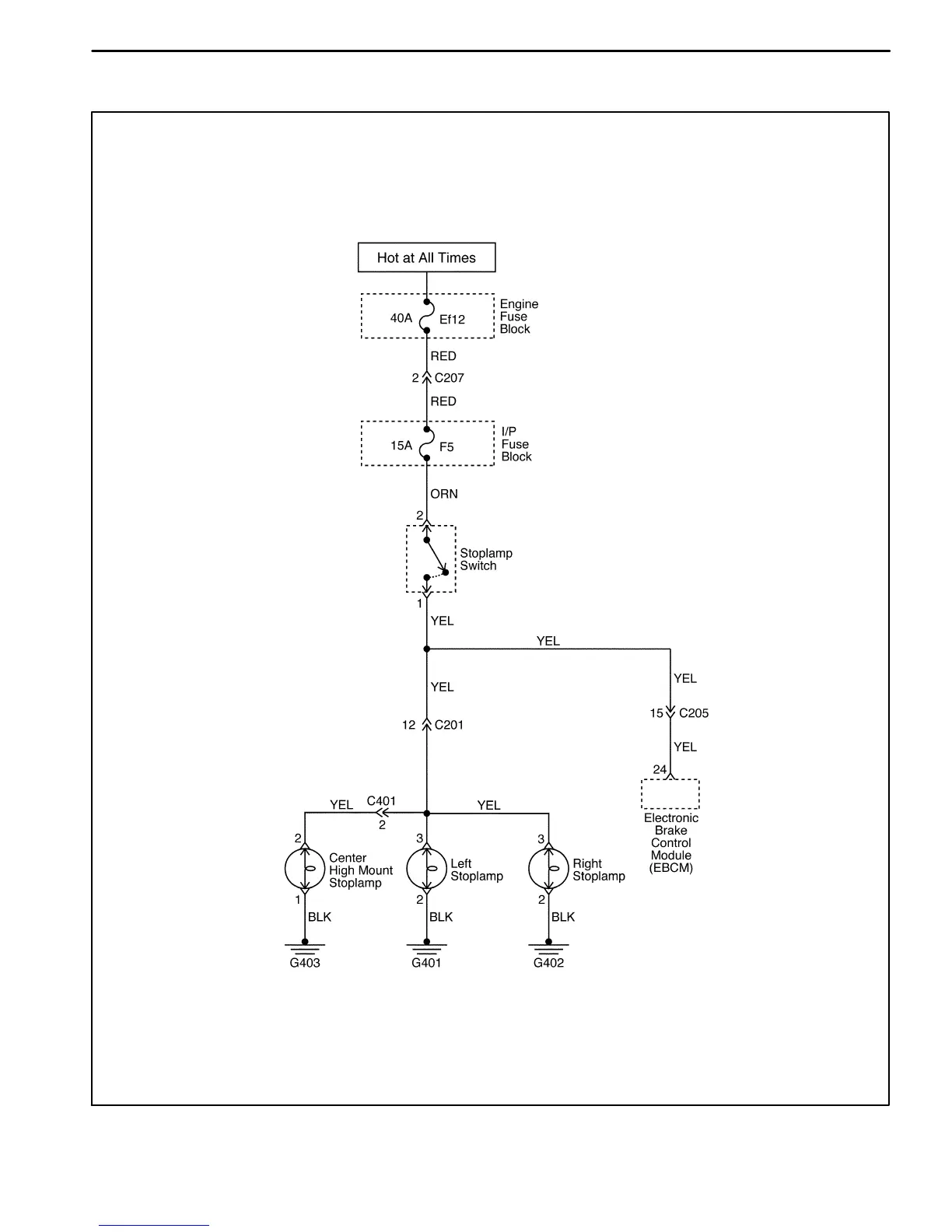

STOPLAMPS CIRCUIT

D19D204B
