9O –6 BUMPERS AND FASCIAS
DAEWOO M-150 BL2
D19C508A

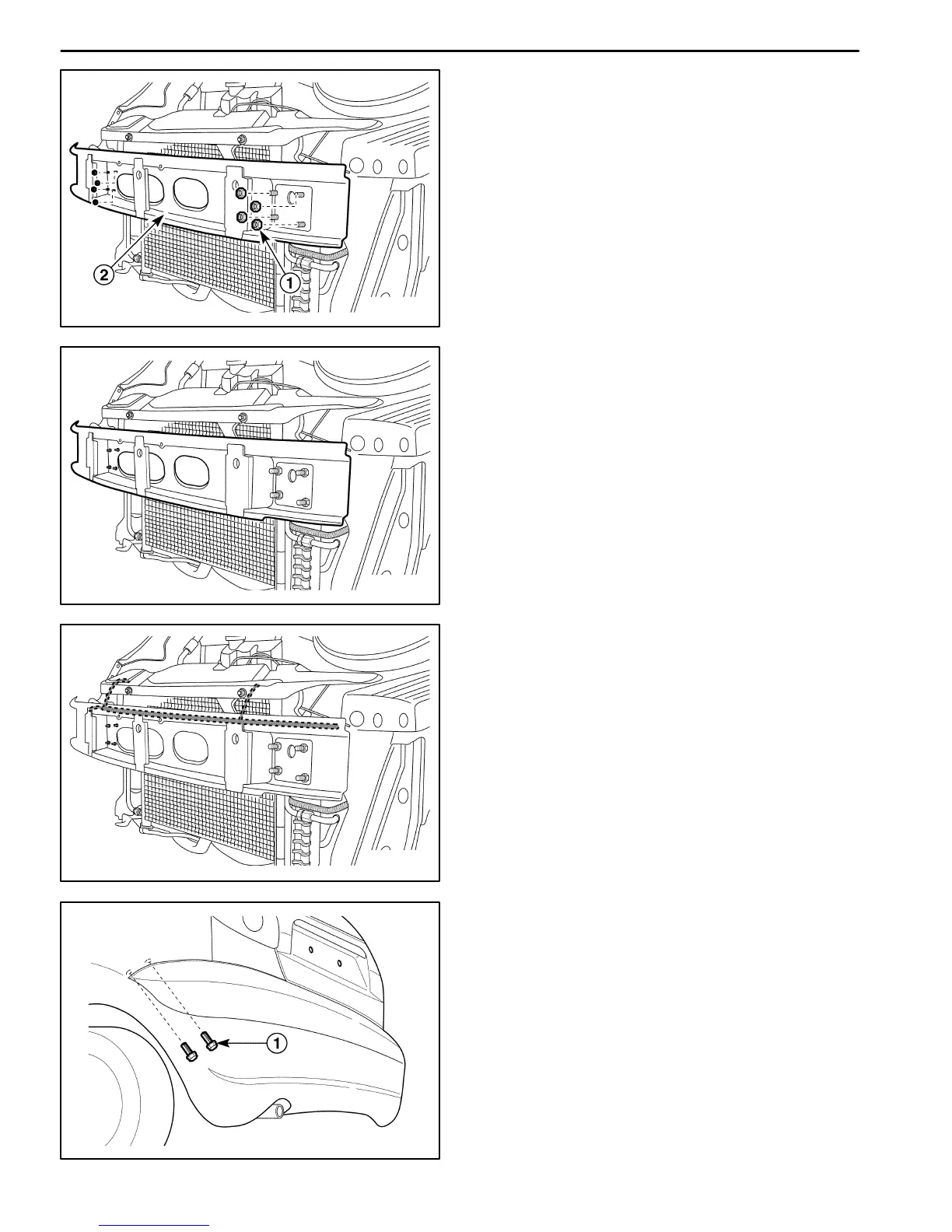

3. Remove the impact bar.
D Remove the nuts (1).
D Remove the impact bar (2).
D19C509A
Installation Procedure
Notice: Dissimilar metals in direct contact with each
other may corrode rapidly. Make sure to use the correct
fasteners to prevent premature corrosion.
1. Install the impact bar with the nuts.
C19C507A
2. Install the front wiring harness retaining clip to the im-
pact bar.
3. Install the front bumper fascia. Refer to “Front Bump-
er Fascia” in this section.
4. Connect the negative battery cable.
D19C510A
REAR BUMPER FASCIA
Removal Procedure
1. Raise and suitably support the vehicle.
2. Remove the bolts underneath the fascia.
D Remove the bolts (1).
To Next Page
