BODY REAR END 9S–5
DAEWOO M-150 BL2
D109C551
7. Connect the fuel filler door remote cable to the han-
dle.
8. Install the fuel filler door remote handle with the
screws.
D109C548

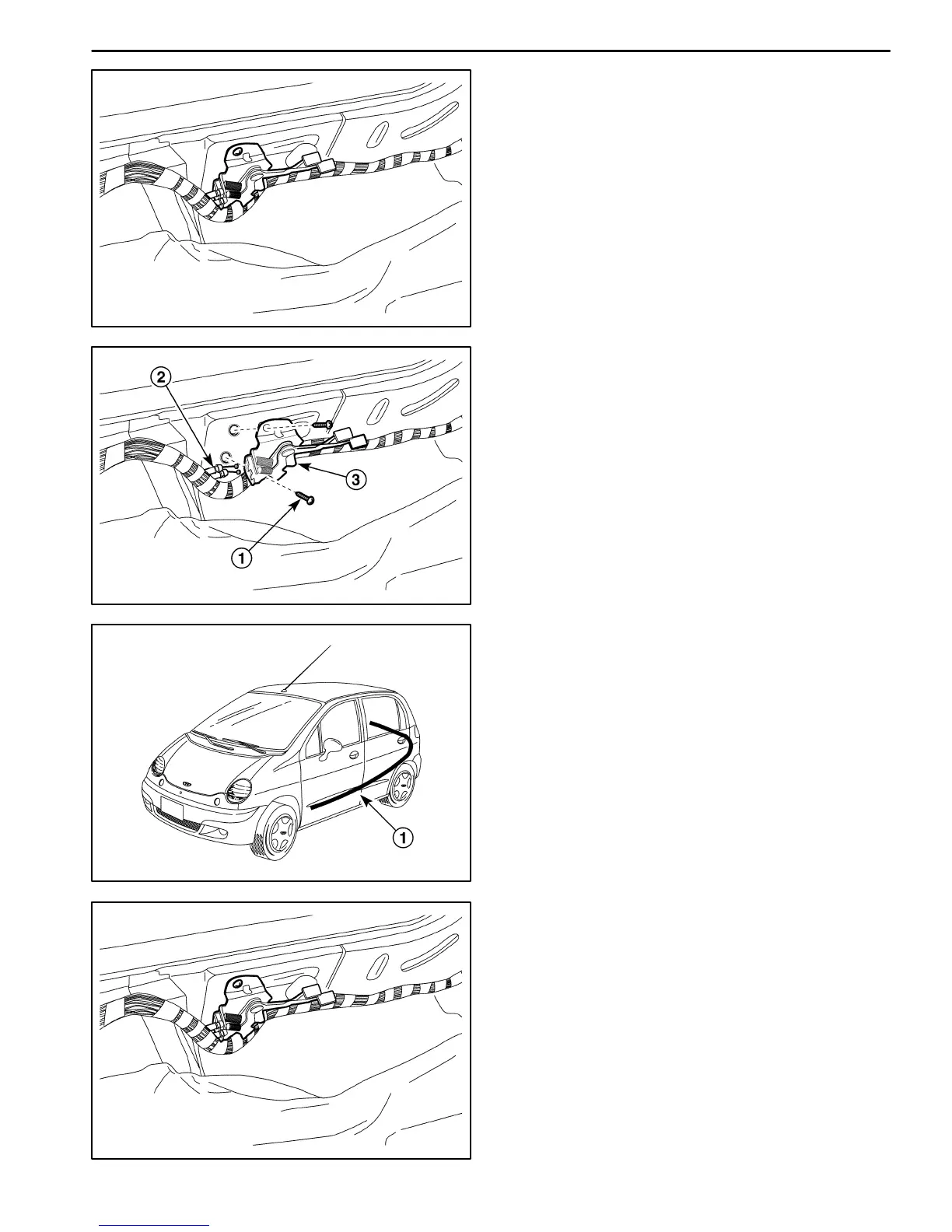

TAILGATE REMOTE CABLE AND
HANDLE
(Left–Hand Drive Shown, Right–Hand
Drive Similar)
Removal Procedure
1. Pry off the front rocker trim panel. Refer to Section
9G, Interior Trim.
2. Remove the tailgate remote handle.
D Remove the screws (1).
D Disconnect the cable (2).
D Remove the tailgate remote handle (3).
D19C633A
3. Pry off the lower B–pillar trim panel. Refer to Section
9G, Interior Trim.
4. Pry off the rear rocker trim panel. Refer to Section
9G, Interior Trim.
5. Pry off the luggage compartment wheelhouse trim
panel. Refer to Section 9G, Interior Trim.
6. Disconnect the cable from the tailgate lock striker.
Refer to Section 9P, Doors.
7. Remove the tailgate remote cable.
D Remove the cable retaining strip.
D Disconnect the tailgate remote cable (1).
D109C551
Installation Procedure
1. Connect the tailgate remote cable to the tailgate lock
striker.
2. Retain the cable with the strip.
3. Install the luggage compartment wheelhouse trim
panel. Refer to Section 9G, Interior Trim.
4. Install the rear rocker trim panel. Refer to Section 9G,
Interior Trim.
5. Install the lower B–pillar trim panel. Refer to Section
9G, Interior Trim.
6. Connect the tailgate remote cable to the handle.
7. Install the tailgate remote handle with the screws.
To Next Page
