9P –26 DOORS
DAEWOO M-150 BL2
D109C624

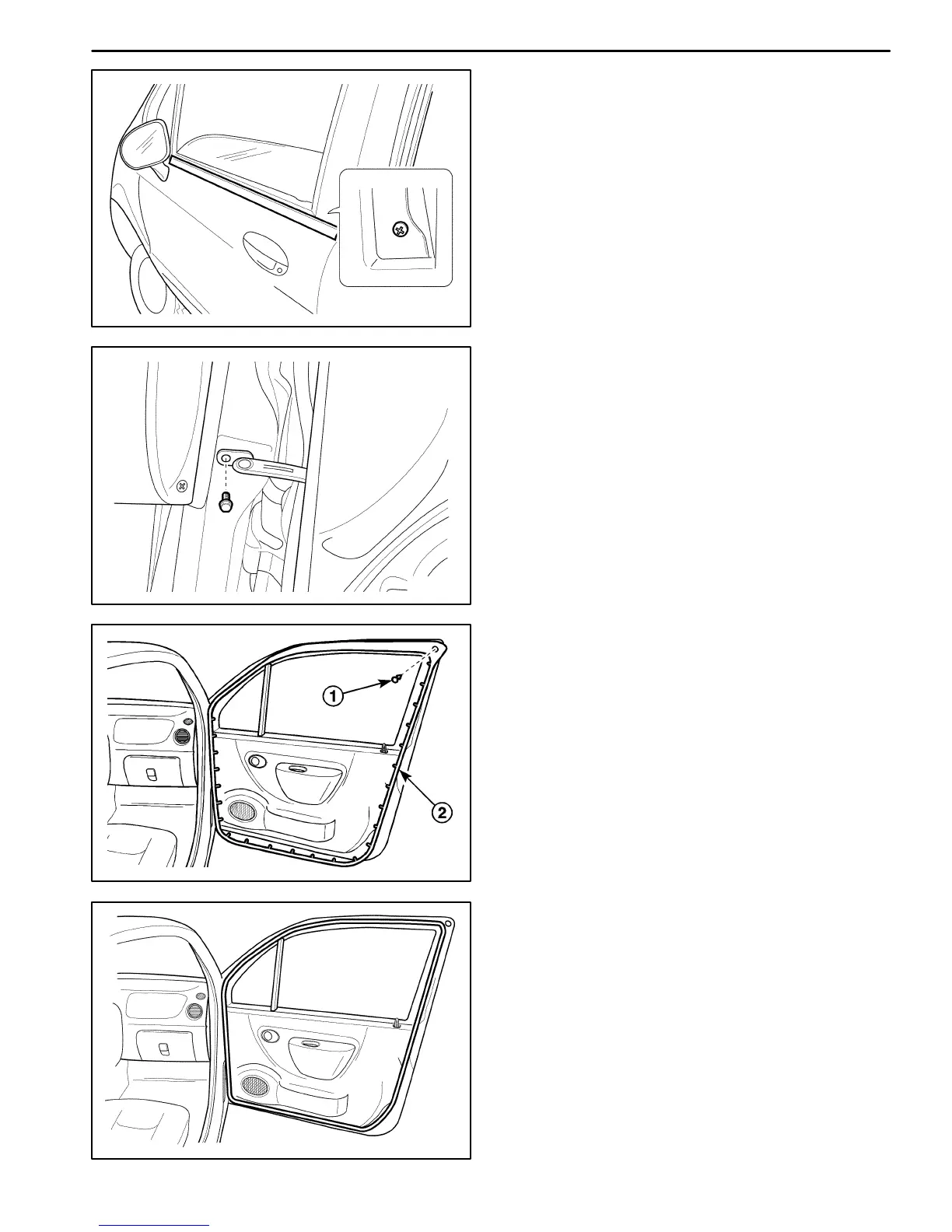

Installation Procedure
1. Press the outside channel weatherstrip onto the door.
2. Install the weatherstrip screw.
D109C625
DOOR WEATHERSTRIP
Removal Procedure
1. Remove the door hold open link bolt.
D109C626
2. Remove the door weatherstrip.
D Remove the clip (1).
D Remove the weatherstrip pins (2).
D109C627
Installation Procedure
1. Install the door weatherstrip with the clip and the pins.
2. Install the door hold open link bolt.
