CONTROL ARM
Removal Procedure
1. Remove the stabilizer shaft. Refer to “Front Longitu-
dinal Frame and Stabilizer Shaft” in this section.
2. Remove the control arm.

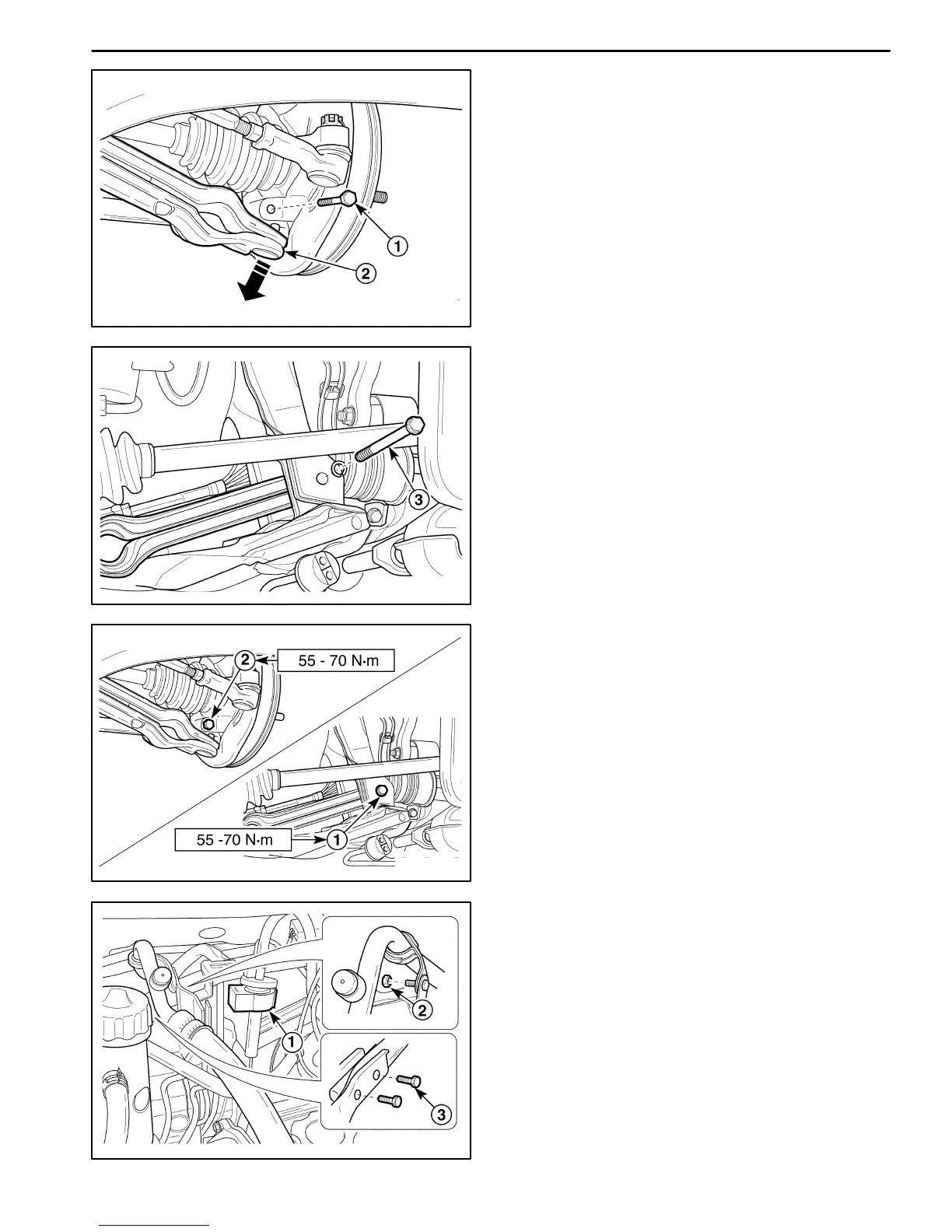

D Remove the stud bolt (1).
D Separate the control arm from the knuckle assem-
bly using a lever (2).
D106B520
D Remove the bolt (3).
D Remove the control arm.
D16B521B
Installation Procedure
1. Install the control arm onto the vehicle.
D Install the control arm bolt (1).
Tighten
Tighten the control arm bolt to 55–70 NSm (41–52 lb-
ft).
D Install the control arm to the knuckle assembly.
D Install the stud bolt (2).
Tighten
Tighten the stud bolt to 50–70 NSm (36–52 lb-ft).
2. Install the stabilizer shaft.
D10B522A
STRUT BAR
Removal Procedure
1. Open the hood.
2. Remove the strut bar from the vehicle.
D Remove the purge control valve (1).
D Remove the A/C low pressure pipe bracket–to–
strut bar nut (2).
D Remove the strut bar bolts at passenger side (3).
