HYDRAULIC BRAKES 4A–7

DAEWOO M-150 BL2

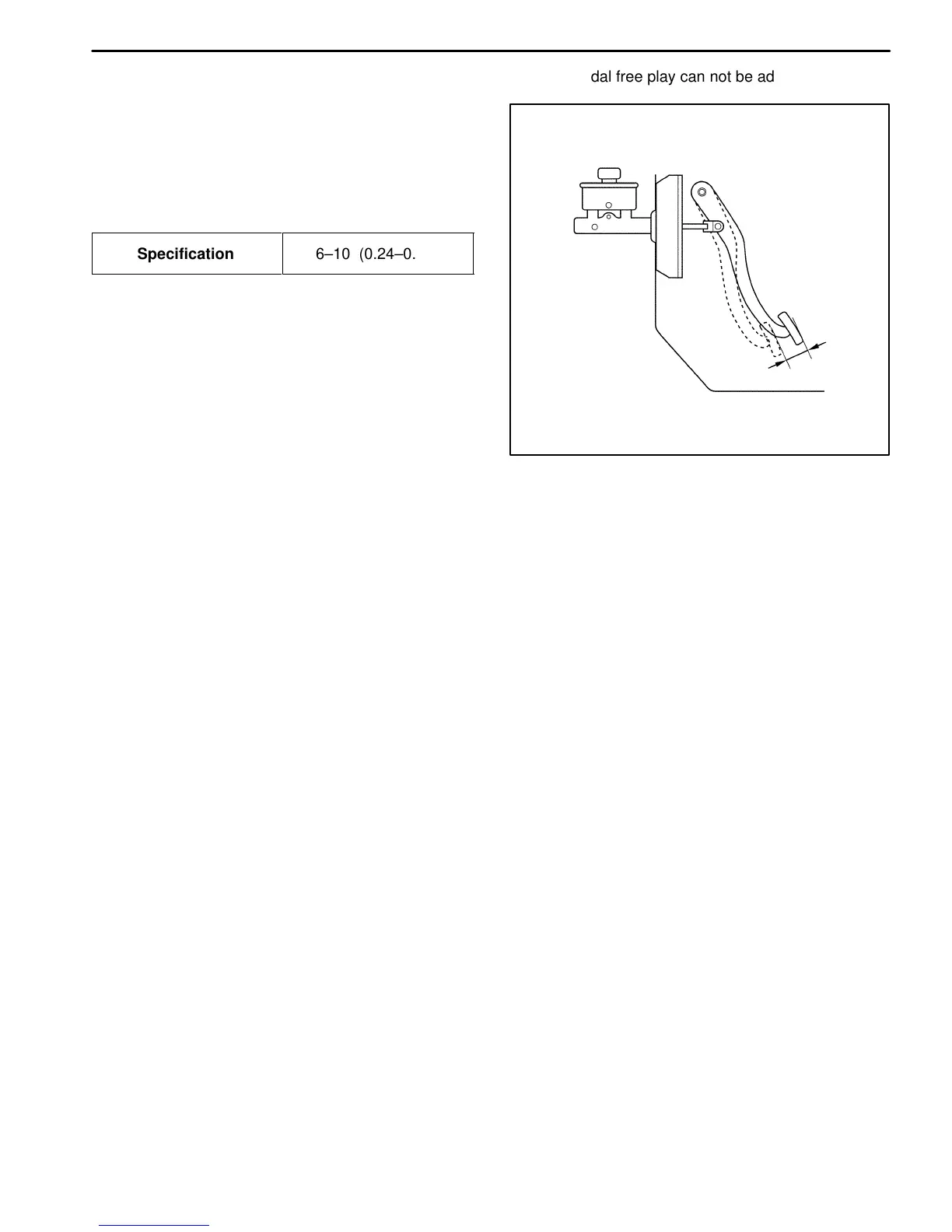

BRAKE PEDAL FREE PLAY

INSPECTION

1. Push the brake pedal several times to discharge the

vacuum of the power booster.

2. Measure the pedal movement until the hardness is

felt when pushing the brake pedal by hand.

Unit : mm (in.)

ÁÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁ

Specification

ÁÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁ

6–10 (0.24–0.31)

3. Brake pedal free play can not be adjusted.

D107A305
