Daewoo MATIZ - Ignition System

To Next Page

To Previous Page

ENGINE ELECTRICAL 1E–9

DAEWOO M-150 BL2

IGNITION SYSTEM

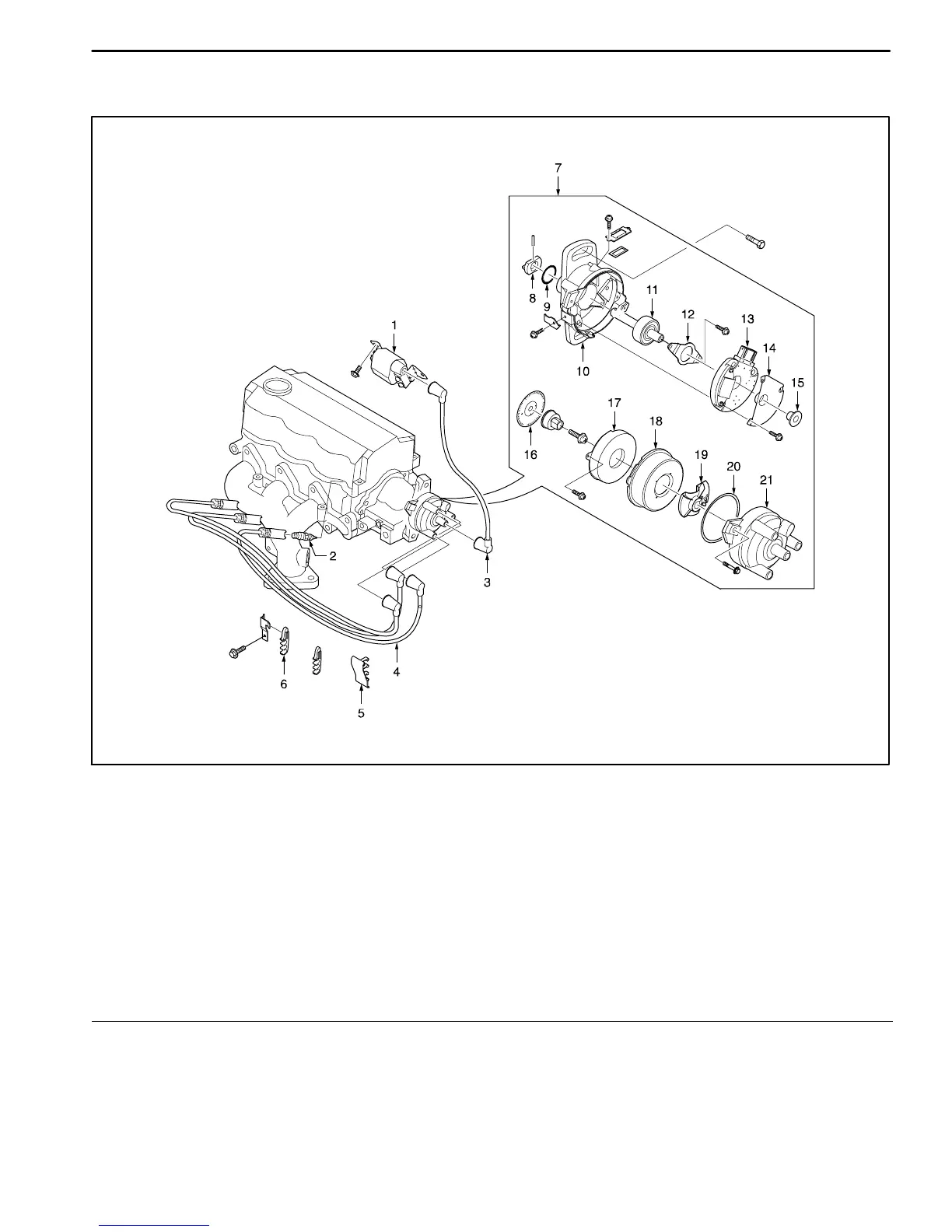

D102E404

1 Ignition Coil

2 Spark Pulg

3 Ignitoin Wire (#0)

4 Ignition Wires (#1, #2, #3)

5 Support Clamp

6 Mounting Clamp

7 Distributor Assembly

8 Coupling

9 Distributor Oil Seal

10 Distributor Housing

11 Distributor Shaft

12 Plate

13 Optical Sensor Unit

14 Plate

15 Bushing

16 Disc Wheel

17 Inner Cover

18 Outer Cover

19 Distributor Rotor

20 Distributor Cap Seal

21 Distributor Cap
