HEATING AND VENTILATION SYSTEM 7A–27
DAEWOO M-150 BL2
D18A534A

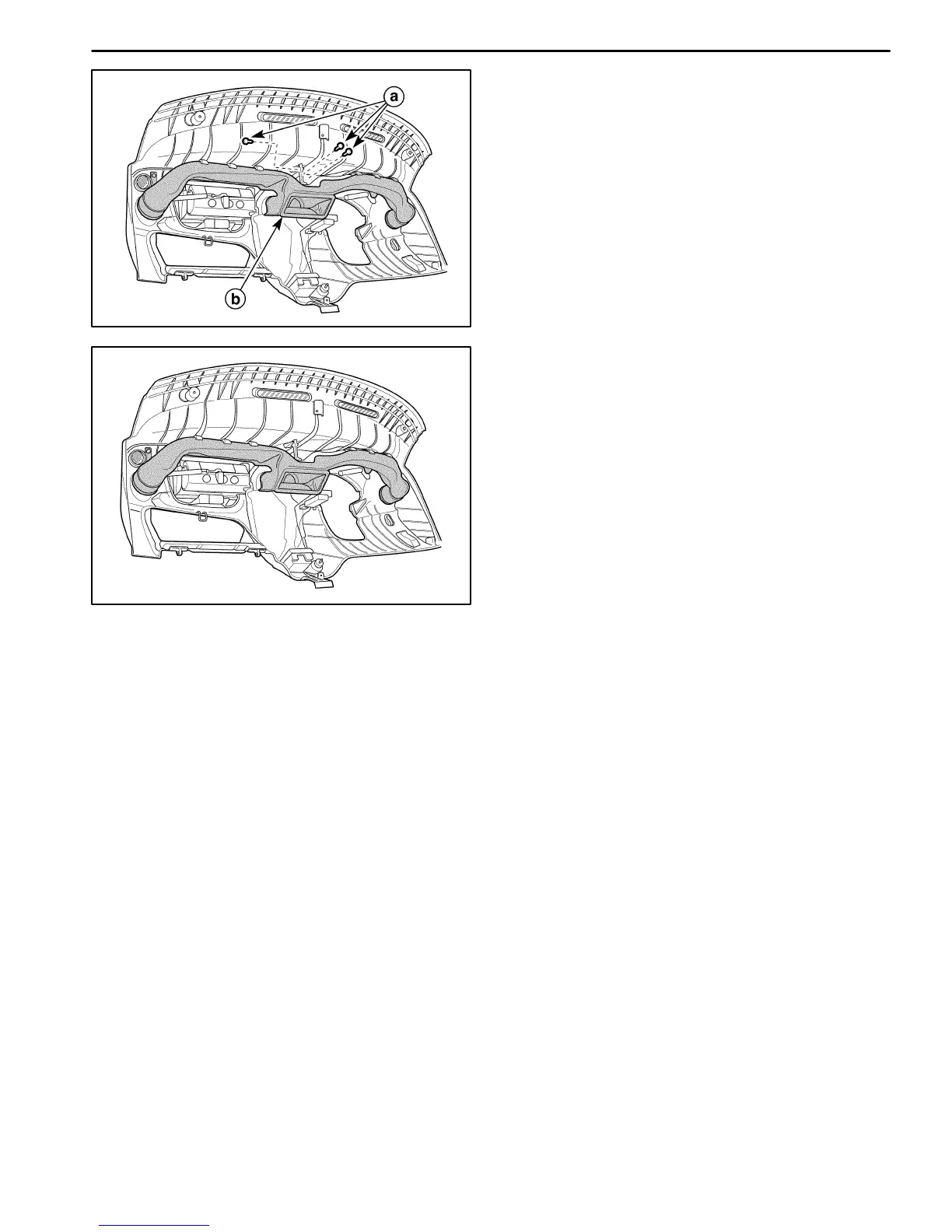

VENTILATION DUCT
(Left–Hand Drive Shown, Right–Hand
Drive Similar)
Removal Procedure
1. Remove the instrument panel. Refer to Section 9E,
Instrumentation/Driver Information.
2. Remove the ventilation duct retaining screws.
a. Retaining screw.
3. Remove the ventilation duct.
b. Ventilation duct.
D108A535
Installation Procedure
1. Install the ventilation duct with the screws.
2. Install the instrument panel. Refer to Section 9E, In-
strumentation/Driver Information.
