LIGHTING SYSTEMS 9B–15

DAEWOO M-150 BL2

D209B104

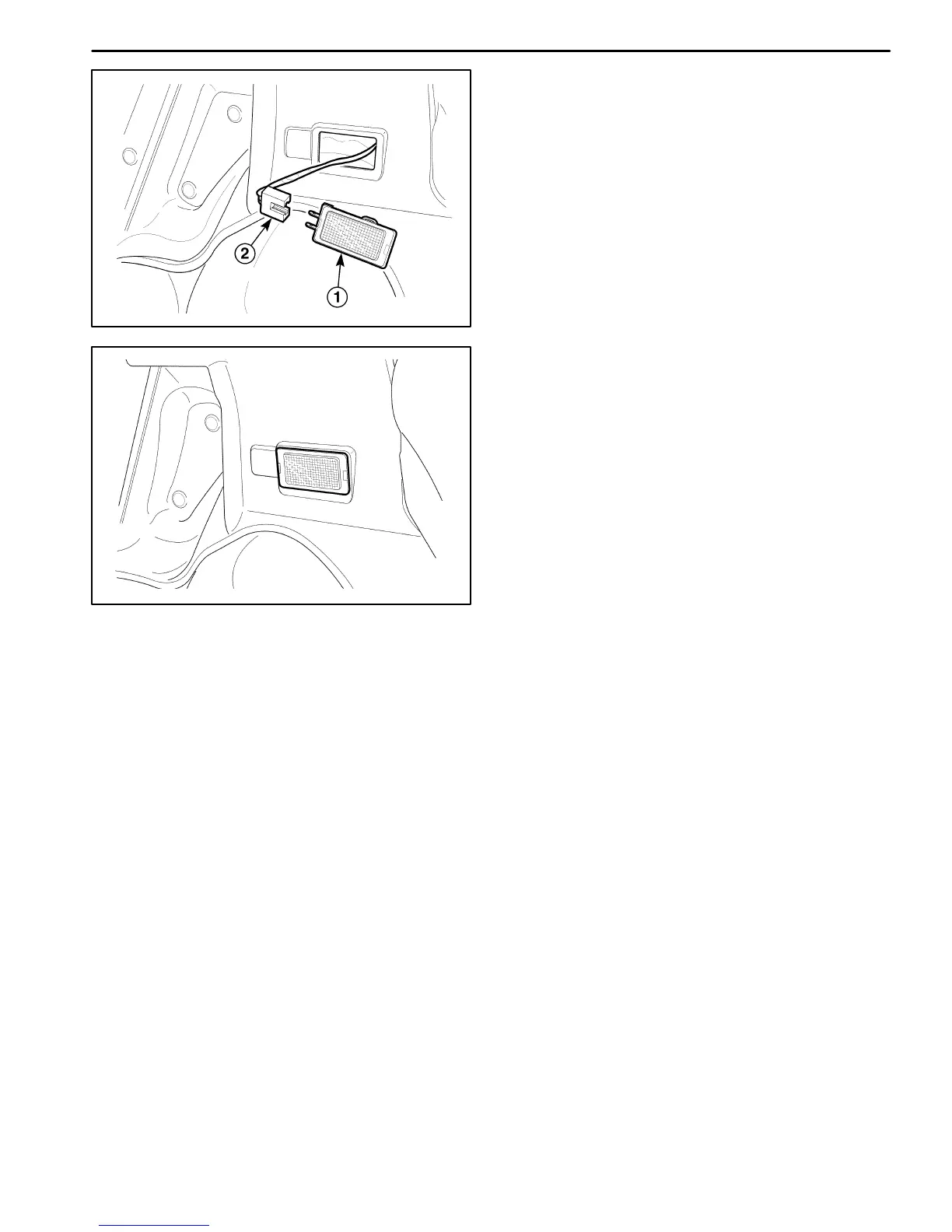

LUGGAGE ROOM LAMP

Removal Procedure

1. Disconnect the negative battery cable.

2. Open the tailgate.

3. Remove the luggage room lamp.

D Remove the luggage room lamp (1).

D Disconnect the electrical connector (2).

D209B105

Installation Procedure

1. Connect the electrical connector.

2. Install the luggage room lamp.

3. Connect the negative battery cable.
