9D –6 WIPERS/WASHER SYSTEMS
DAEWOO M-150 BL2
REPAIR INSTRUCTIONS
ON–VEHICLE SERVICE
D109D519

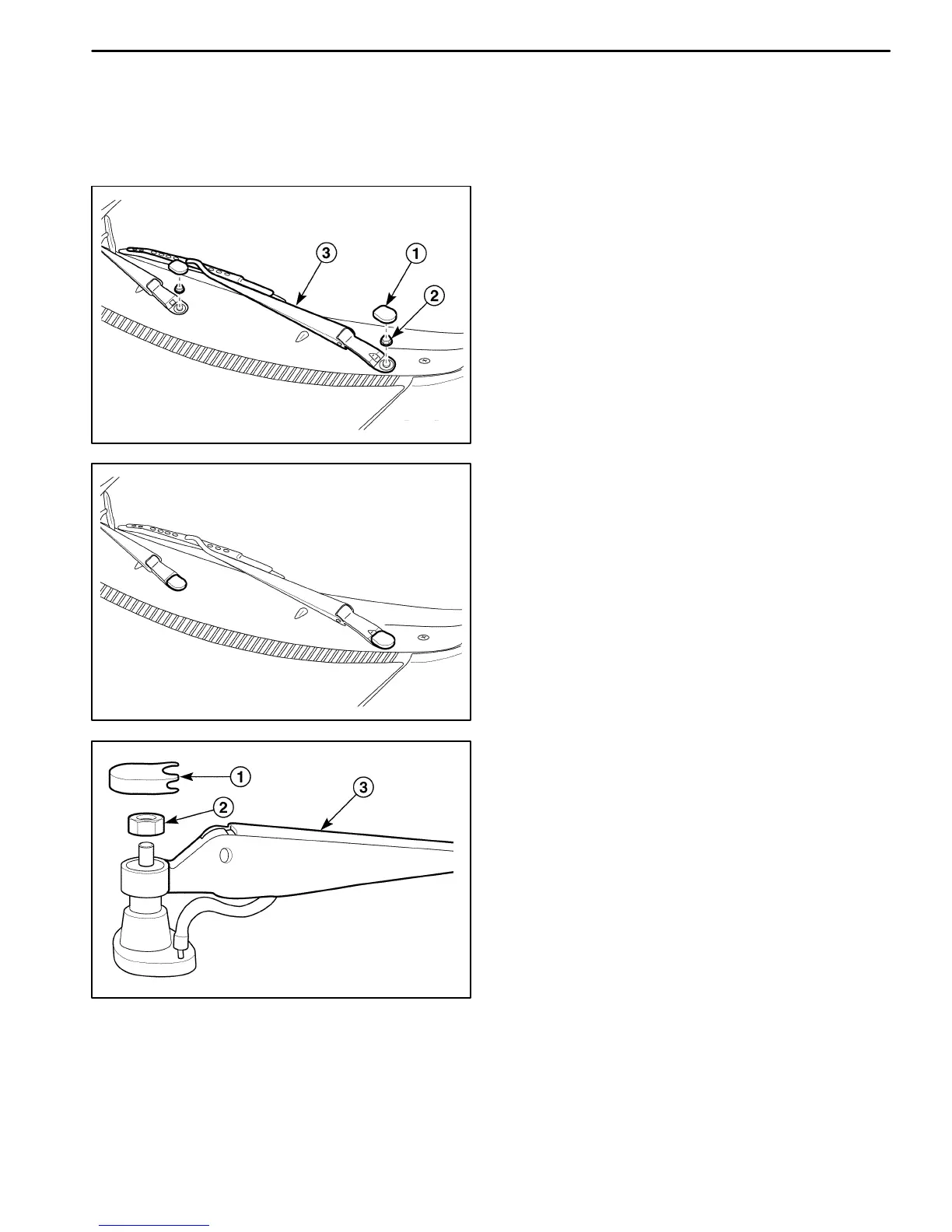

WINDSHIELD WIPER ARM
(Left–Hand Drive Shown, Right–Hand
Drive Similar)
Removal Procedure
1. Remove the wiper arm.
D Remove the cap (1).
D Remove the nut (2).
D Remove the wiper arm (3).
D109D520
Installation Procedure
1. Install the wiper arm with the nut.
2. Install the cap.
D109D521
REAR WINDOW WIPER ARM
Removal Procedure
1. Remove the washer nozzle from the wiper arm. Refer
to “Rear Washer Nozzle” in this section.
2. Remove the wiper blade. Refer to “Windshield Wiper
Blade” in this section.
3. Remove the wiper arm.
D Remove the cap (1).
D Remove the nut (2).
D Remove the wiper arm (3).
