9Q –4 ROOF
DAEWOO M-150 BL2
REPAIR INSTRUCTIONS
ON–VEHICLE SERVICE
D109C555
FORMED HEADLINER
Removal Procedure
1. Disconnect the negative battery cable.
2. Remove the sun visors. Refer to “Sun Visors” in this
section.
3. Remove the interior courtesy lamp. Refer to Section
9B, Lighting Systems.
4. Pry off the A–pillar trim panel. Refer to Section 9G,
Interior Trim.
5. Pry off the upper B–pillar trim panel. Refer to Sec-
tion 9G, Interior Trim.
6. Pry off the C–pillar trim panel. Refer to Section 9G,
Interior Trim.
7. Remove the passenger assist handle and the coat
hook. Refer to “Passenger Assist Handle and The
Coat Hook” in this section.
8. Remove the sunroof molding, if equipped with. Re-
fer to “Manual Sunroof” in this section.
9. Take off the tailgate opening weatherstrip. Refer to
Section 9P, Doors.

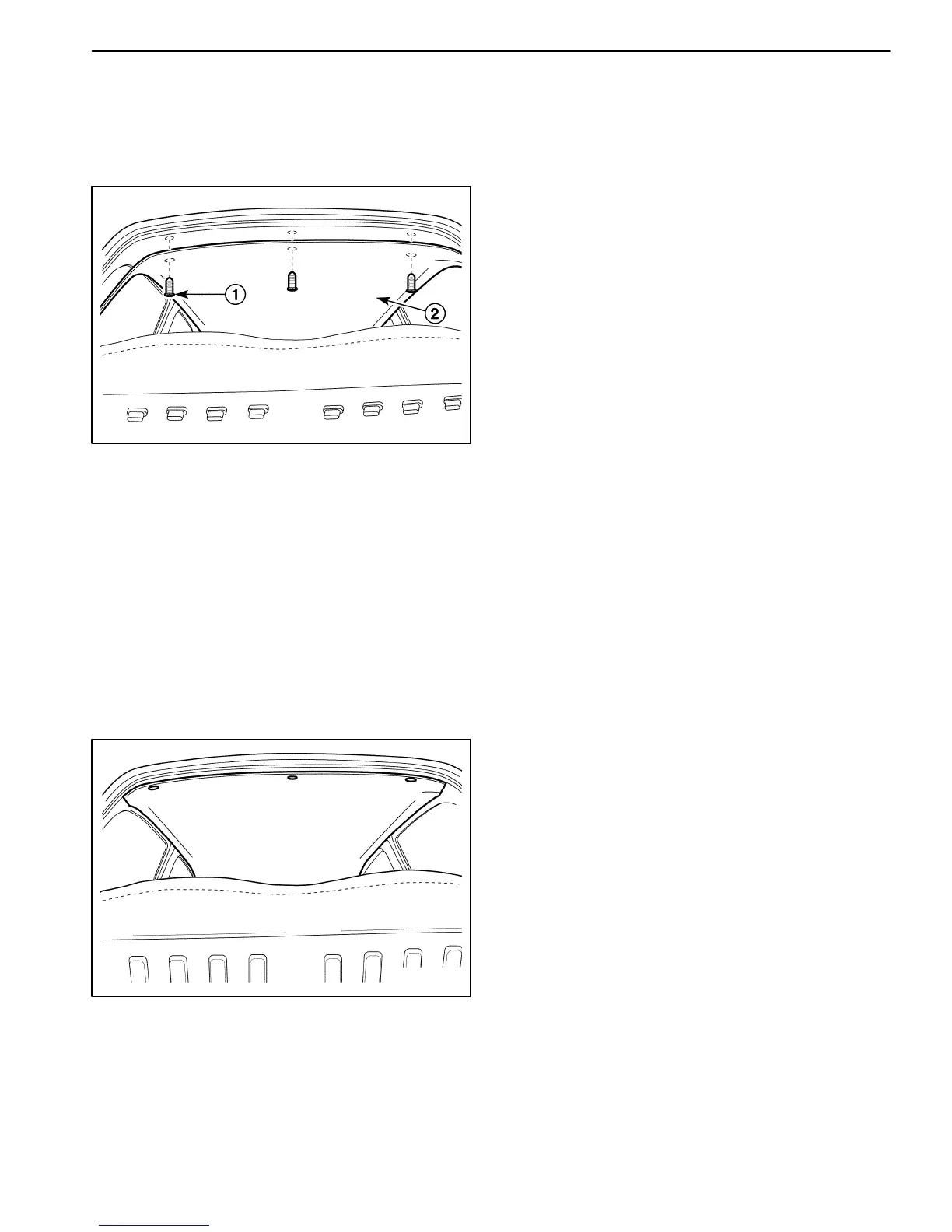

10. Remove the headliner.
D Remove the clips (1).
D Remove the headliner (2).
D109C556
Installation Procedure
1. Install in the reverse order of removal.
