Daewoo MATIZ - Rear Muffler; 1 G-3

To Next Page

To Previous Page

1G–8 ENGINE EXHAUST

DAEWOO M-150 BL2

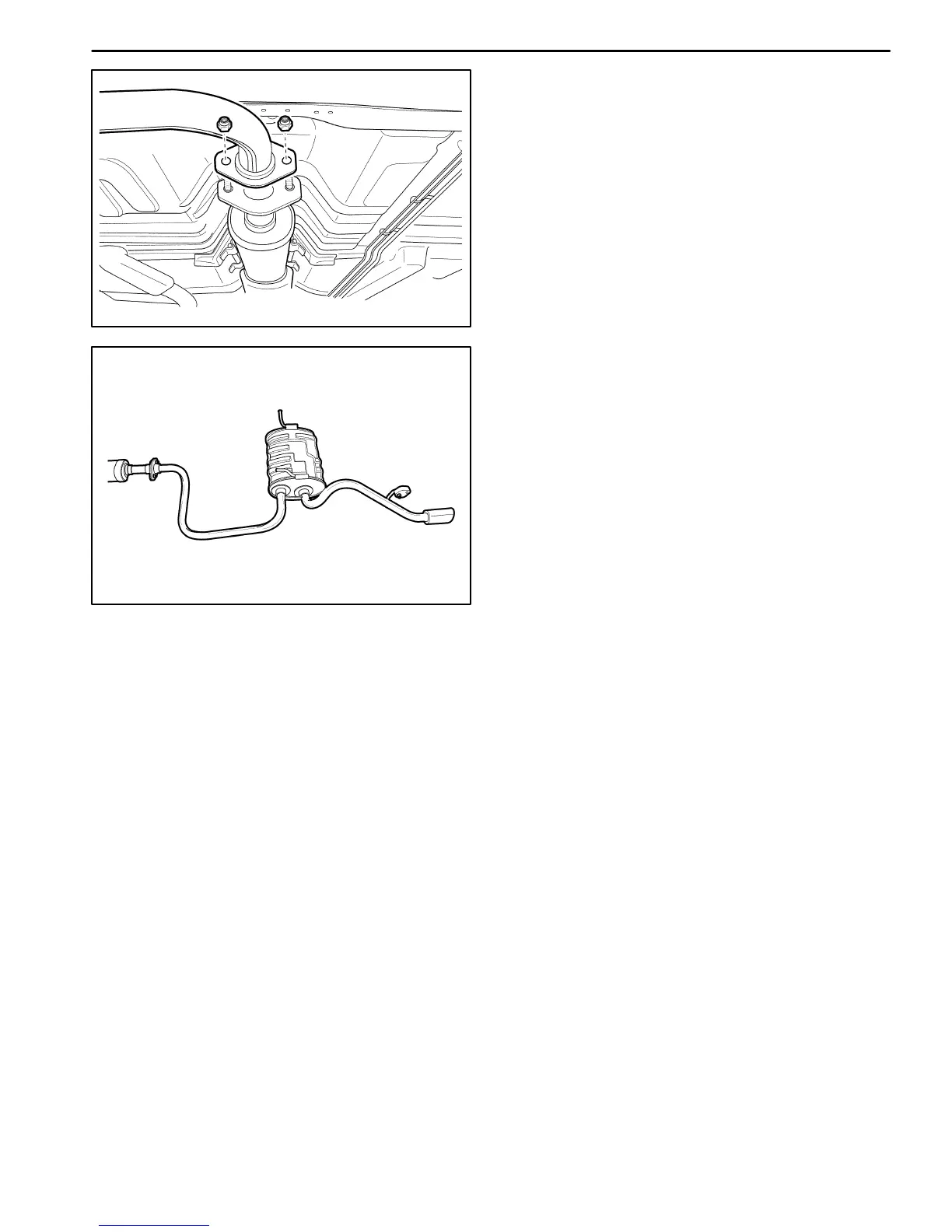

MAA1G030

REAR MFFLER

Removal Procedure

1. Remove the front muffler-to rear muffler nuts.

Tighten

Tighten the nuts to 25–35 NSm (18–25 lb-ft).

2. Detach the rear muffler from the rubber hangers.

MAA1G040

3. Remove the rear muffler.

4. Installation should flow the removal procedure in re-

verse order.
