2D –6 REAR SUSPENSION
DAEWOO M-150 BL2
REPAIR INSTRUCTIONS
ON–VEHICLE SERVICE
D106C501
SHOCK ABSORBER
Removal Procedure

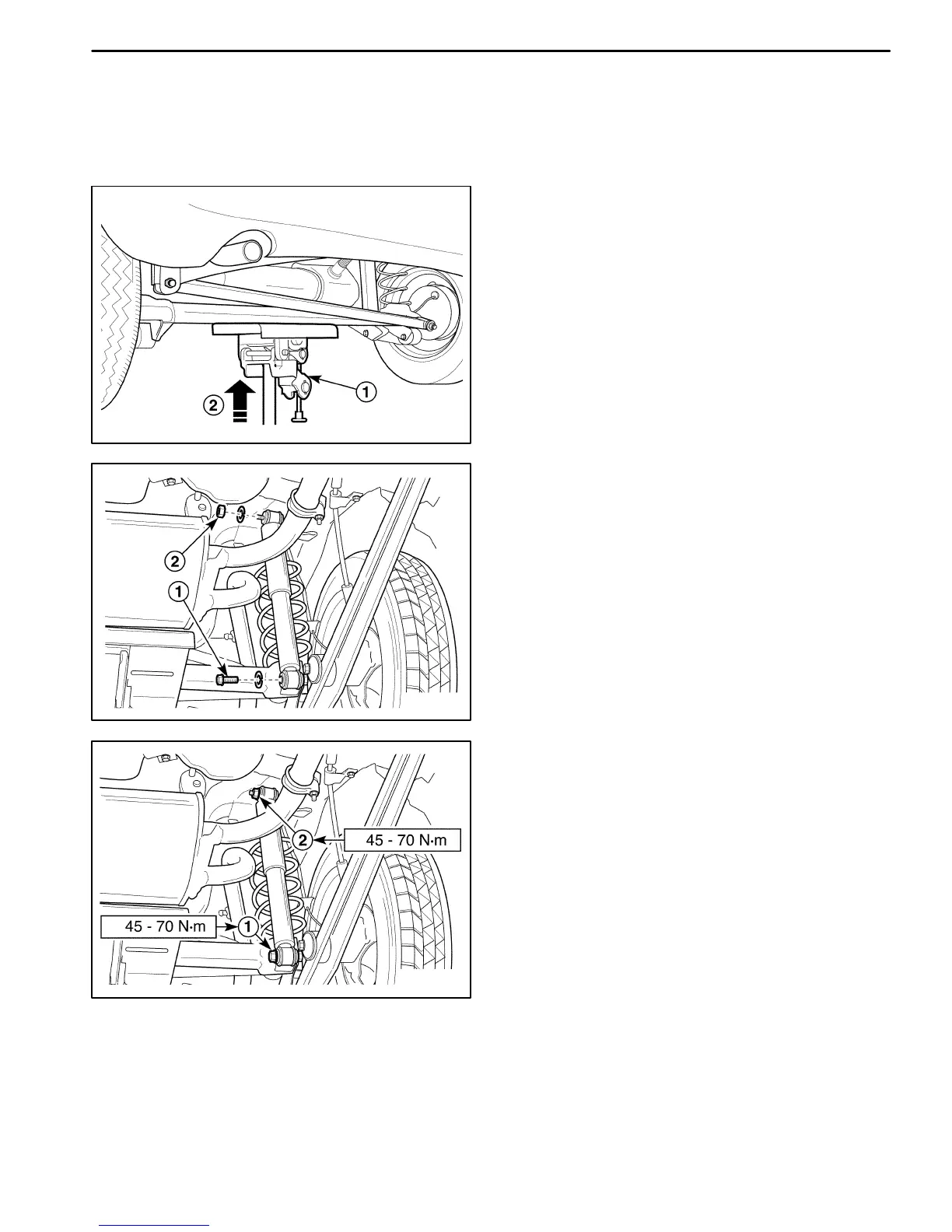

1. Support the rear axle with adjustable jack stands.
D Raise the vehicle and support the rear axle assem-
bly (1, 2).
D106C502
2. Remove the shock absorber.
D Remove the bolt (1).
D Remove the nut (2).
D16C503B
Installation Procedure
1. Install the shock absorber.
D Install the shock absorber–to–rear axle bolt (1).
Tighten
Tighten the bolt to 45–70 NSm (33–52 lb-ft).
D Install the shock absorber–to–body bracket nut (2).
Tighten
Tighten the shock absorber nut to 45–70 NSm (33–52
lb-ft).
2. Remove the jack stand and lower the vehicle.
