9L –14 GLASS AND MIRRORS

DAEWOO M-150 BL2

D19E528

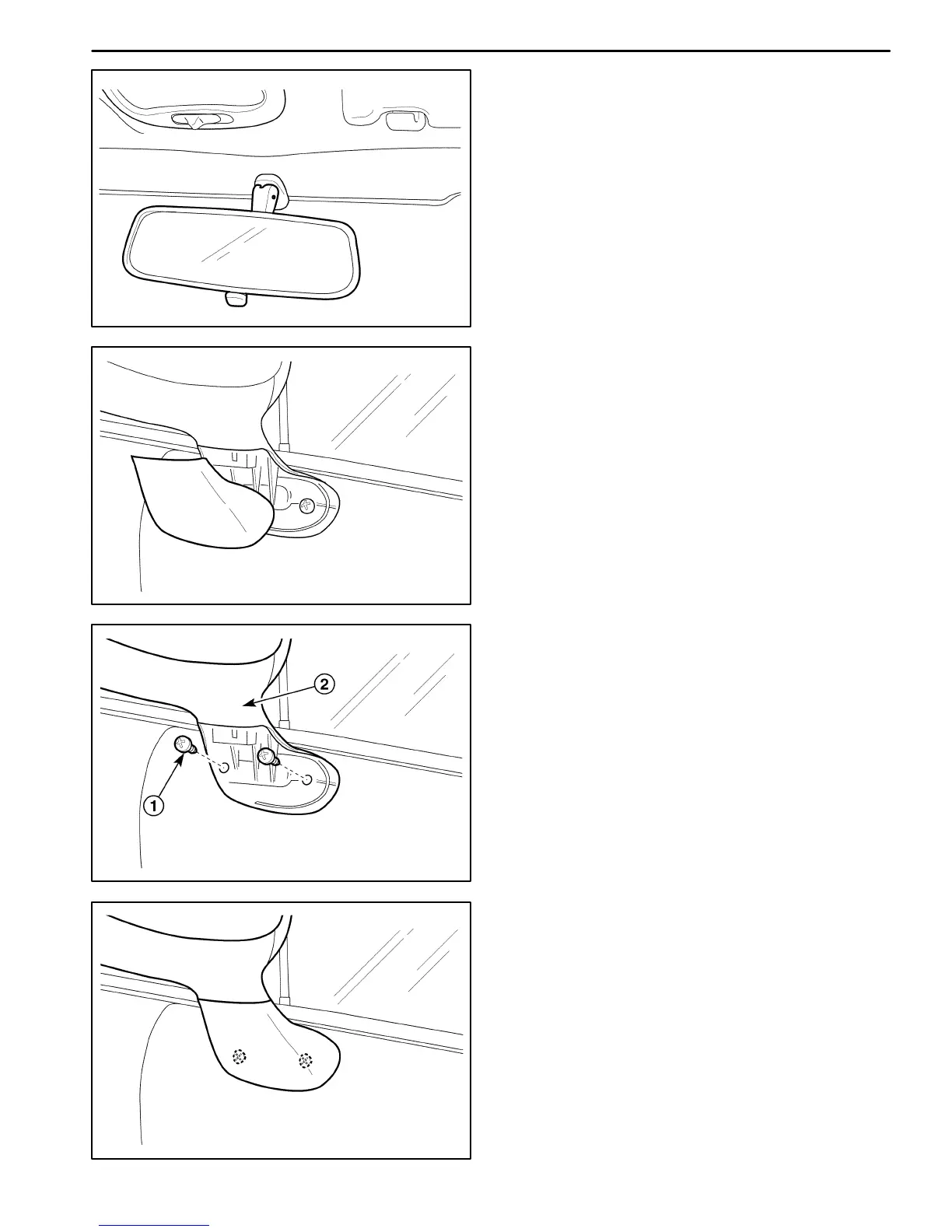

Installation Procedure

1. Install the inside rearview mirror with the screw.

D19E529

OUTSIDE REARVIEW MIRROR

(MANUAL)

Removal Procedure

1. Remove the outside rearview mirror cover from the

outside rearview mirror.

D19E530

2. Remove the outside rearview mirror.

D Remove the screws (1).

D Remove the outside rearview mirror (2).

D19E531

Installation Procedure

1. Install the outside rearview mirror with the screws.

2. Install the outside rearview mirror cover.
