5C –6 CLUTCH
DAEWOO M-150 BL2
INSTRUCTION REPAIR
ON–VEHICLE SERVICE
D13B5151
D103B516
PRESSURE PLATE, CLUTCH DISC
AND INPUT SHAFT BEARING
Tools Required
09917–58010 Input Shaft Bearing Remover
09924–17810 Flywheel Holder
09925–98210 Input Shaft Bearing Installer
DW110–021 Engine Fixture
DW210–010 Clutch Center Guide
Removal Procedure
1. Remove the transaxle from the vehicle. Refer to Sec-
tion 5B, Manual Transaxle.
2. Support the engine to normal position using the en-
gine fixture DW110–021.
Notice: The abnormal position of the engine may dam-
age to the related parts and interfere with them. You
must support the engine to normal position after remov-
ing the transaxle.

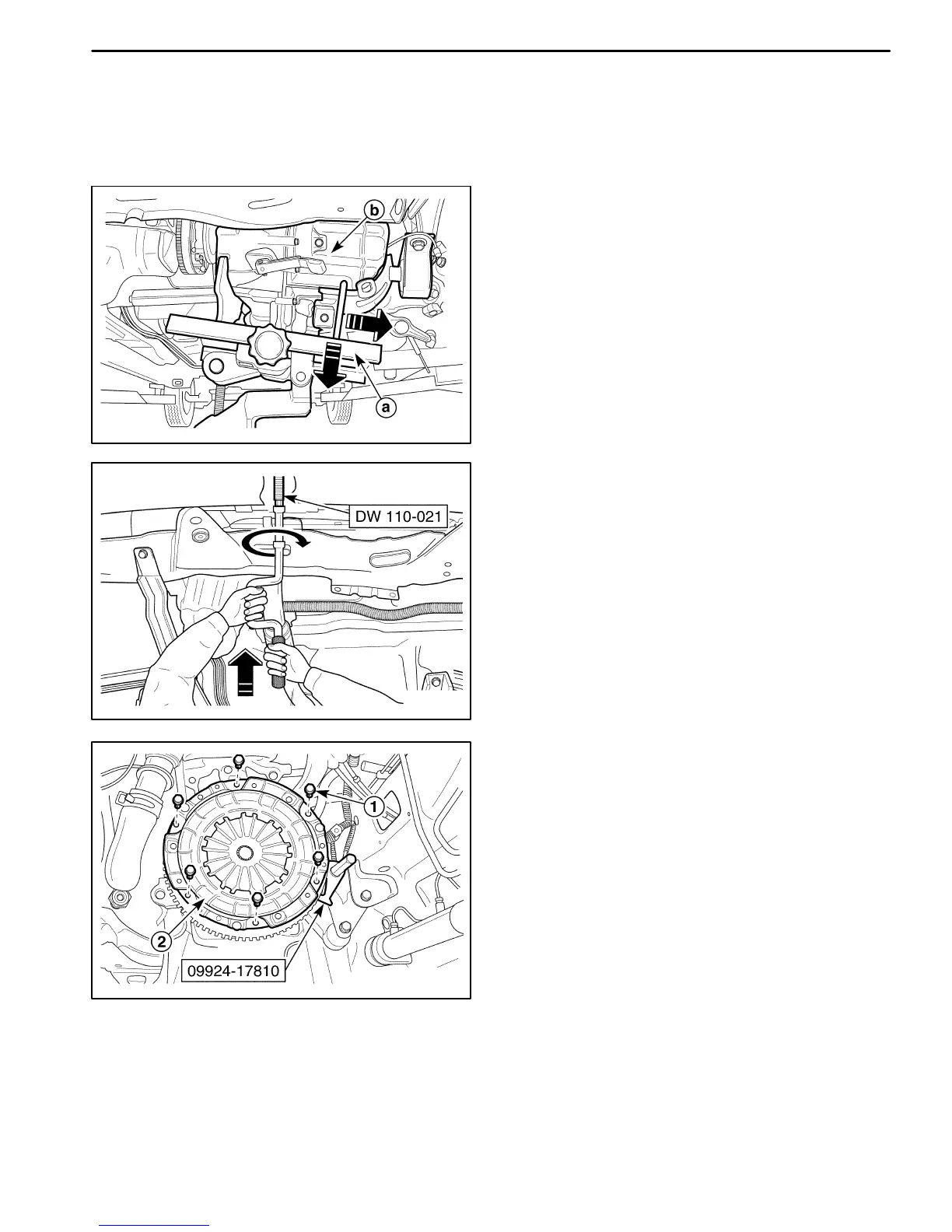

D13C5021
3. Remove the pressure plate and the clutch disc.
D Fix the fly wheel using the fly wheel holder 09924–
17810.
D Remove the pressure plate bolts (1).
D Remove the pressure plate and the clutch disc (2).
