CLUTCH 5C–7
DAEWOO M-150 BL2
D13C5031

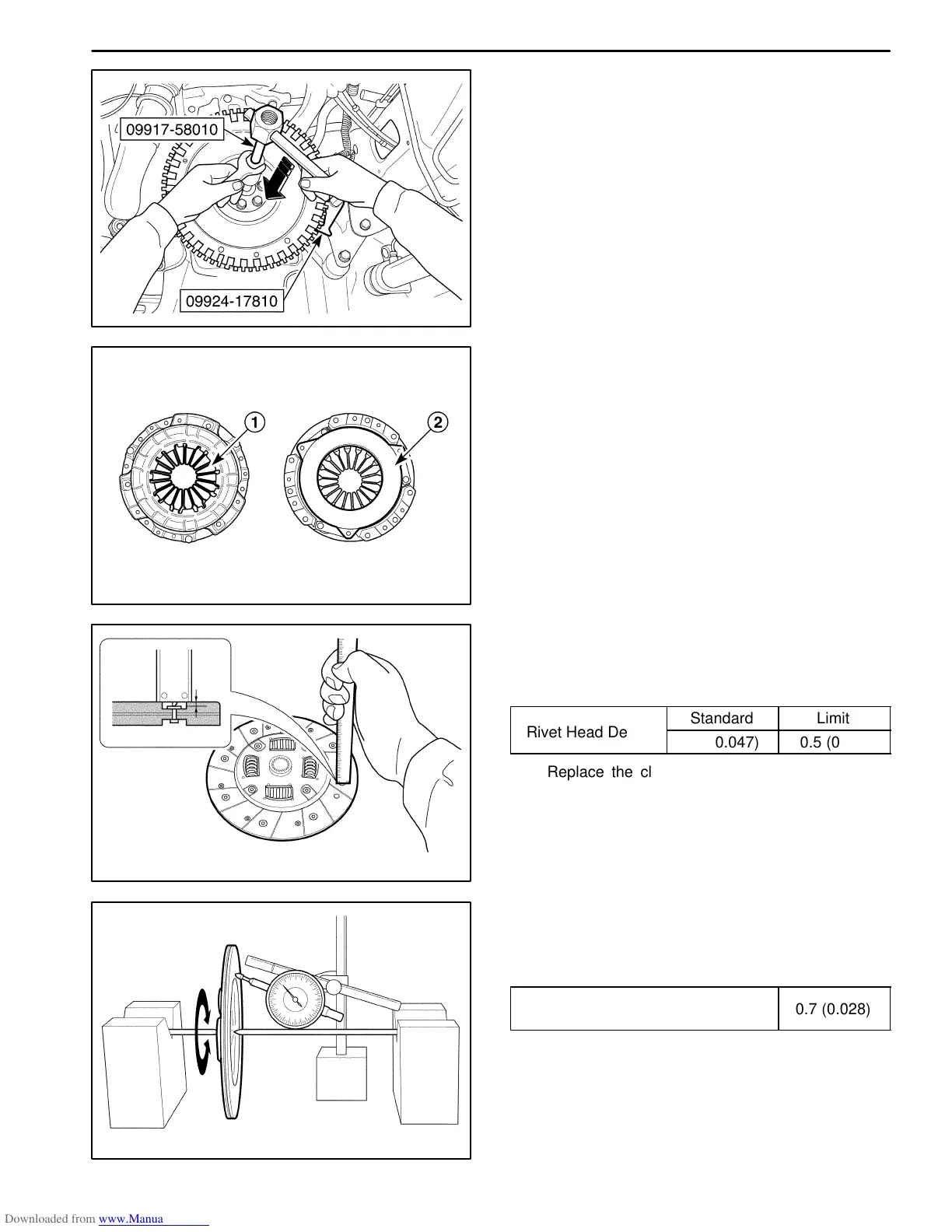

4. Remove the transaxle input shaft bearing using the
input shaft bearing remover 09917–58010, the fly-
wheel holder 09924–17810 and a spanner.
D13C5041
Inspection Procedure – Pressure Plate
and Clutch Disc
1. Pressure plate inspection .
D Check the weak and damaged diaphragm spring
(1).
D Check the polluted face by the oil, grease (2).
D103C505
2. Clutch disc inspection
D Measure rivet head depth from clutch disc surface
and replace if below limit.
Unit : mm (in.)
Standard
Limit
Rivet Head Depth
1.2 (0.047) 0.5 (0.02)
D Replace the clutch disc if clutch disc surface is
contaminated or clutch disc rivets are loosen.
D103C506
3. Clutch disc runout in rotational direction inspection.
D Measure runout in rotational direction and replace
if runout exceeds limit.
Unit : mm (in.)
ÁÁÁÁÁÁÁÁÁÁ
Disc Runout Limit in Rotational
Direction (Periphery)
ÁÁÁÁ
0.7 (0.028)
To Next Page
