Daewoo MATIZ - Front Muffler

ENGINE EXHAUST 1G–7
DAEWOO M-150 BL2
D12G504B
3. Install the front exhaust pipe to pup-up catalytic con-
vertor.
Tighten
Tighten the bolts to 25–35 NSm (18–25 lb-ft).
D102G502

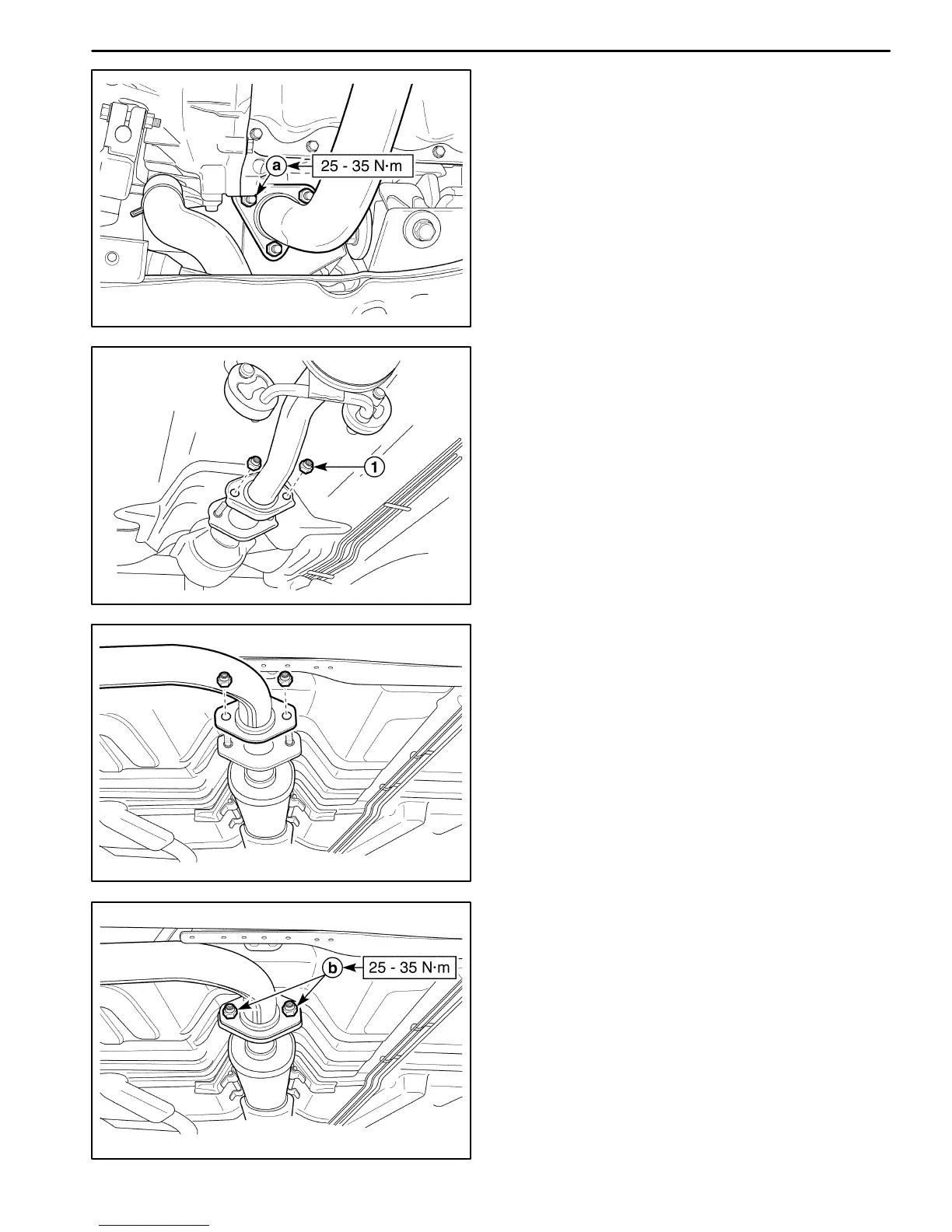

FRONT MUFFLER
Removal Procedure
1. Remove the front exhaust pipe-to-front muffler nuts.
D Remove the nuts (1).
MAA1G030
2. Remove the front muffler-to-rear muffler nuts.
3. Detach the front muffler from rubber hanger and re-
move the front muffler.
MAA1G031
Installation Procedure
1. Hang the front muffler to rubber hanger.
2. Install the front muffler-to-rear muffler nuts.
Tighten
Tighten the nuts to 25–35 NSm (18–25 lb-ft).
3. Install the exhaust pipe-to-front muffler nuts.
Tighten
Tighten the nuts to 25–35 NSm (18–25 lb-ft) (a).
