Daewoo MATIZ - Dimmer Control Circuit (Except W;Europe)

To Next Page

To Previous Page

9B–26 LIGHTING SYSTEMS

DAEWOO M-150 BL2

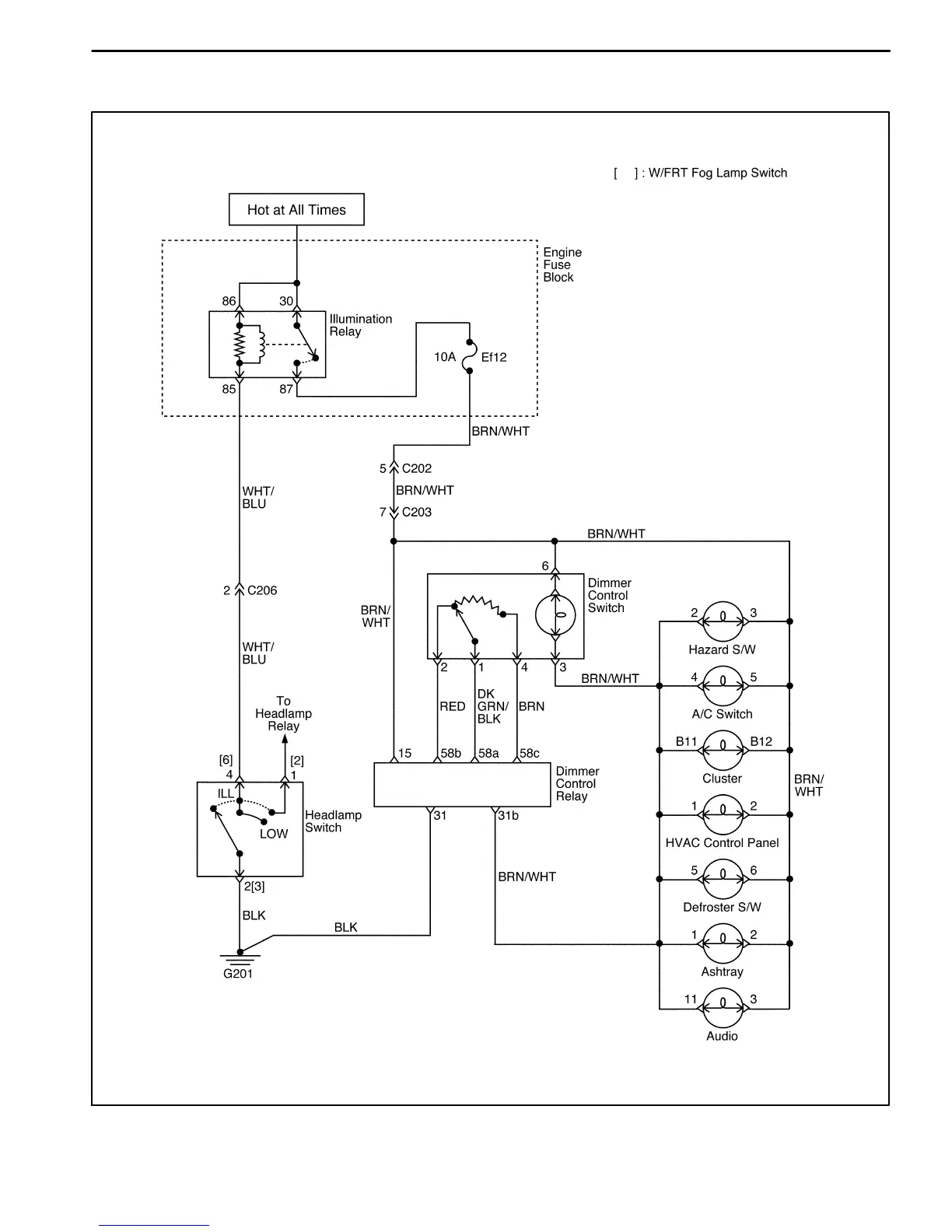

DIMMER CONTROL CIRCUIT (EXCEPT W/EUROPE)

D29B009A
