Daewoo MATIZ - Default Chapter; Steering Wheel

STEERING WHEEL AND COLUMN 6E–7
DAEWOO M-150 BL2
REPAIR INSTRUCTIONS
ON–VEHICLE SERVICE
D105A501
D15A502A
DW310–010
STEERING WHEEL
(Left–Hand Drive Shown, Right–Hand
Drive Similar)
Tools Required
DW310–010, Steering Wheel Puller
Removal Procedure
1. Disconnect the negative battery cable.
2. Remove the SIR module. Refer to Section 8B, Sup-
plemental Inflatable Restraints. (For vehicle with SIR)
3. Remove the steering wheel.

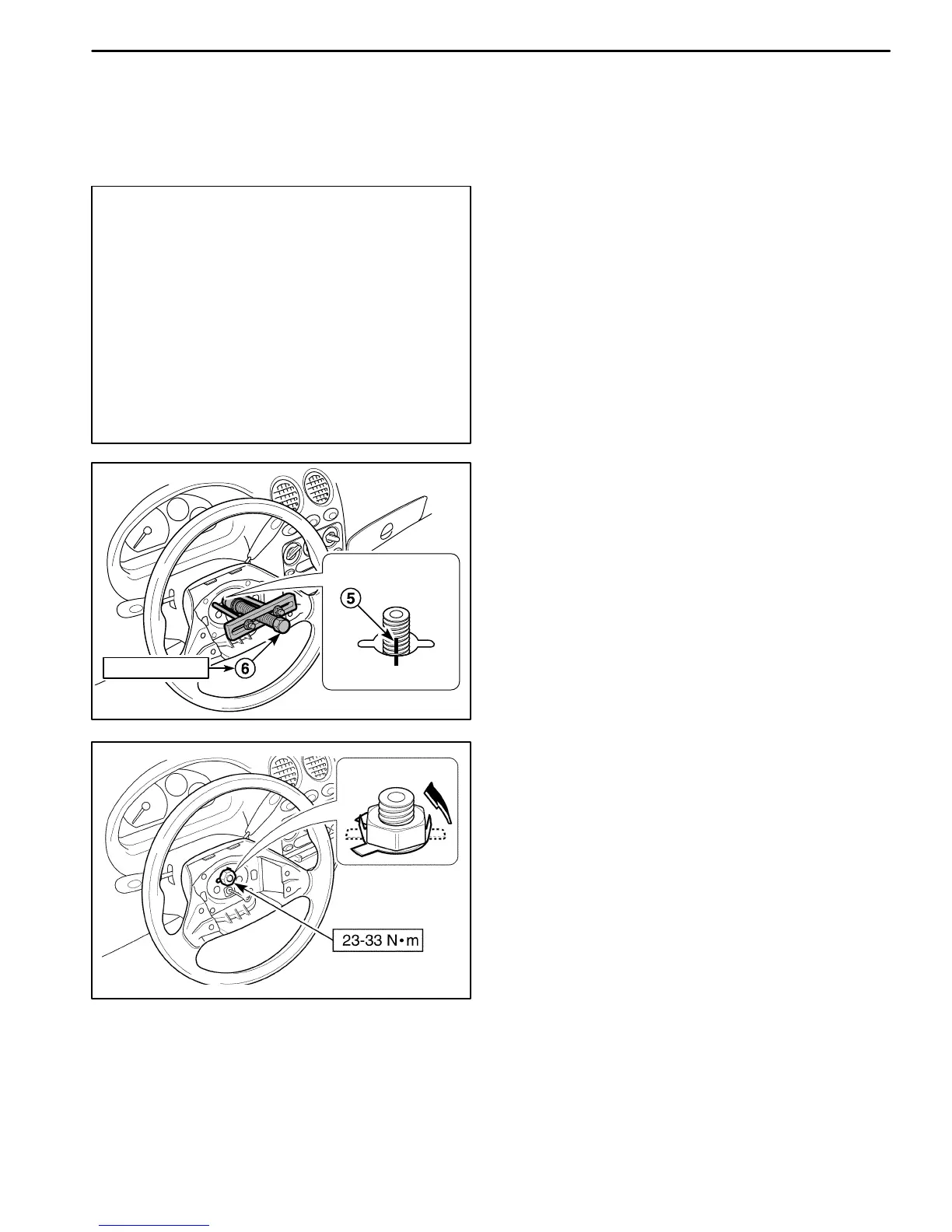

4. Remove the steering wheel horn cover (For vehicle
without SIR) (1).
D Straighten the bending locking plate (2).
D Remove the nut (3).
D Remove the locking plate (4).
D In order to install the steering wheel correctly,
match–mark the steering column shaft to the
steering wheel (5).
D Remove the steering wheel using the steering
wheel puller DW310–010 (6).
Important: Be careful not to hit the top of steering col-
umn shaft with hammer during repair work.
D15A503A
Installation Procedure
1. Install the SIR module. Refer to Section 8B, Supple-
mental Inflatable Restraints (For vehicle with SIR).
Important: Align the match marks on the steering wheel
and the steering column shaft.
2. Install the steering wheel with the nut and the locking
plate.
Tighten
Tighten the steering wheel nut to 23–33 NSm (17–24
lb-ft).
3. Bend the tabs to secure the locking plate.
4. Install the steering wheel horn cover (For vehicle
without SIR).
5. Connect the negative battery cable.
